Specifications

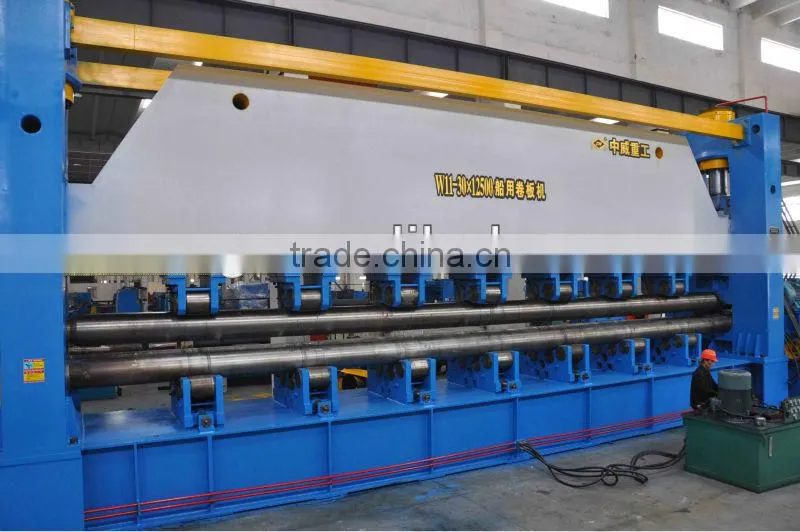

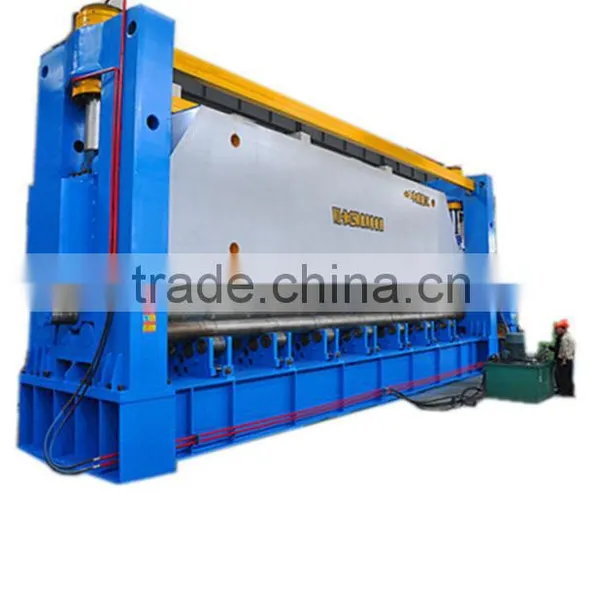

can roll steel plate and stainless steel etc. speciall for shipping mafacturingThis machine is hydraulic rising three roller plate rolling machine for ship building industry, is used to make the various kinds of steel to be all kinds of workpiece by various container in the normal state.
The top roller can vertical move.
Through motor and reduction gears to do the rolling.
Elevation of the lower roller is invariant so that it’s easy to feed and operate.
The machine is equipped with proof material device.
Main technical Data
Specification |
Uint |
W11NC- 30×12500 |
Force pressure |
Tons |
850 |
Diameter of upper roller |
mm |
420 |
Diameter of lower roller |
mm |
370 |
Center distance between two lower rollers |
mm |
600 |
Rolling speed |
m/min |
About 3.5 |
Support roller number |
unit |
7 |
Each support roller number |
piece |
Up support roller 2 pcs Low support toller 4 pcs |
Max plate width |
mm |
12500 |
Working length of rollers |
mm |
12600 |
Up roller pressing speed |
mm/min |
About120 |
Max. Rolling thickness |
mim |
T30*B12500*R700 mm (σS≤345MPa) |
Working pressure of hydraulic system |
MPa |
19.5 |
Main motor power |
kW |
75 |
Hydraulic motor power |
kW |
30 |
Voltage of power supply |
V/Hz |
380/50/3 phase |
