Specifications

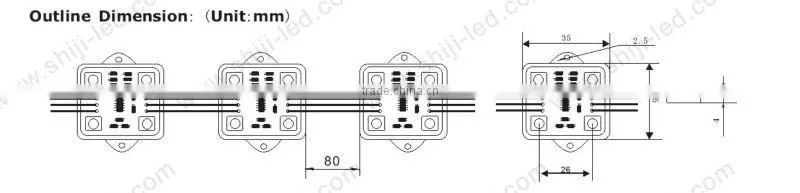

1.DC12V low voltage input2.Dimension:35*35*4mm
3.80mm apart on the strand
4.Extremly long lifespan:50,000hrs
5.Power:0.96W
Arduino LED Module SMD5050 RGB LED Pixel WS2801
Features:
1) 20 pcs modules per string
2)These pixels use WS2801 IC chip for full 24 bit color, constant-current drive
3)12VDC power, 80mA maximum per pixel (LED on full white)
4)Addressable with the chip inside each pixel
5)Brightness per pixel: 6000 mcd combined
Specification:
Model NO. |
SJ-3535-2801 |
Power Consumption |
0.96W |
Work Voltage |
DC12V |
Beam Angle |
120 |
LED Quantity |
4pcs leds per module |
Color |
Full color(ICRGB) |
Dimension |
35mm(L)*35mm(W)*4mm(H) |
IC model |
WS2801 |
Working Temperature |
-10-60°C |
Life-span |
50,000hrs |
Certificate |
CE&RoHS |
Warranty |
2 years |
Description:
1. RGB Pixel module are digitally-controllable lights you can set to any color, or animate. Each metal 'pixel square' contains 4 RGB LEDs and a controller chip soldered to a PCB. The pixel is then 'flooded' with epoxy to make it waterproof. These are fairly large pixels but they have a lot of nice mounting options, such as two metal flanges on the side so you can screw them directly onto a surface. They're typically used to make outdoor signs. Compared to our other LED dots, these are much bigger and much brighter, good for larger scale installations
2. The pixelrgb led module are connected by a 4-conductor cable. +12VDC, ground, data and clock. Data is shifted down from one pixel to the next so that you can easily cut the strand or attach more onto the end
3. Each dot is digitally controlled, with an internal ws2801 IC chip (24-bit color for 16 million different shades). Compatible with arduino,artnet,sd controller,dmx controller,any controller which could support ws2801 chip
4. Sold by the strand, each strand has 20 pixels in series. Each strand has two JST SM 4-pin connectors so you can connect multiple strands in a row, as many as you wish, just watch for how much current you want

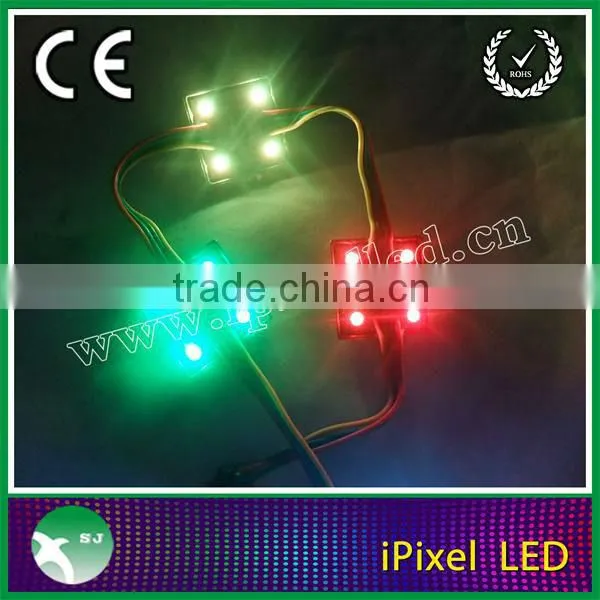

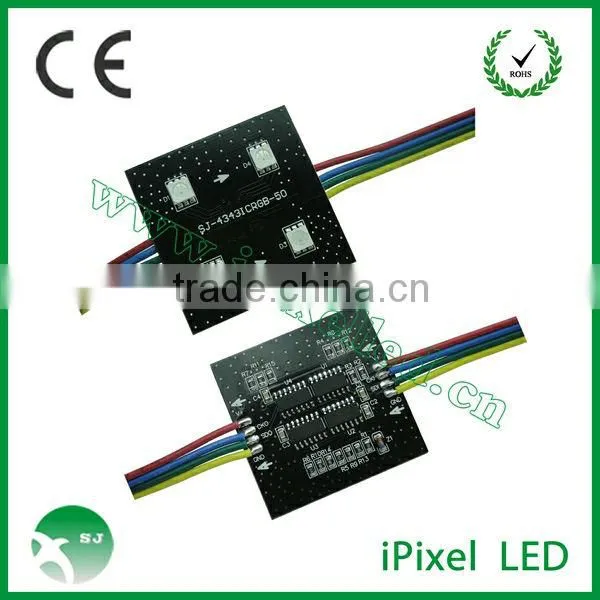

Detailed Pictures:

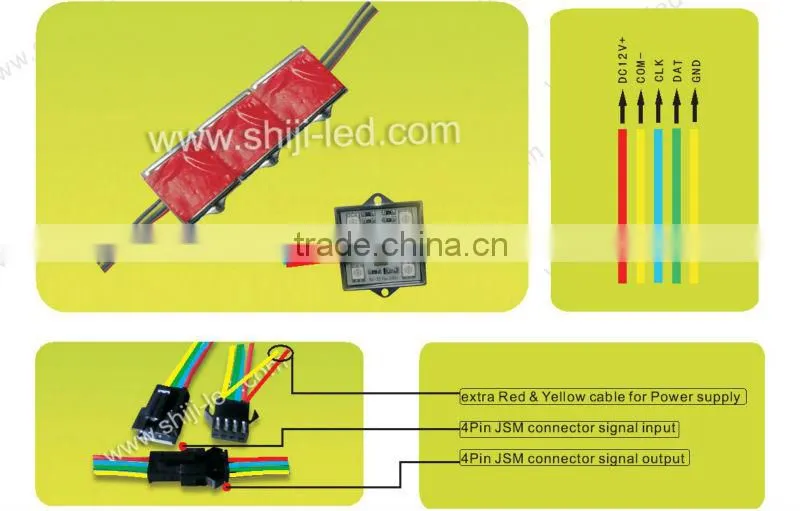

Signal Define:
Applications:

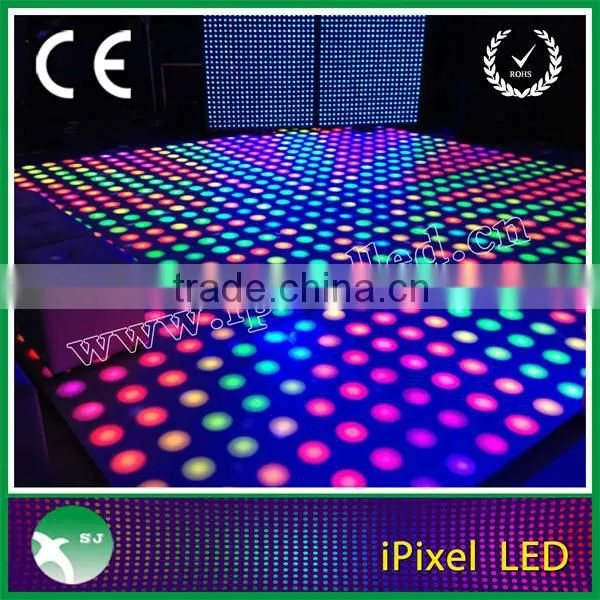

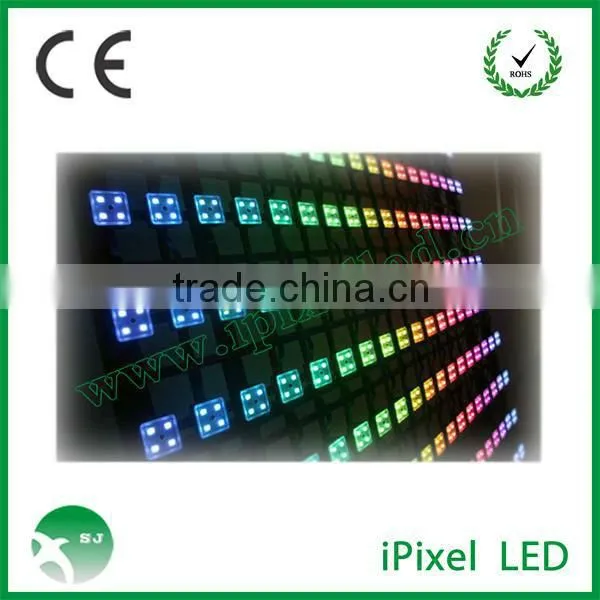

1) matrix screen , realize static pictures, flash or video effects

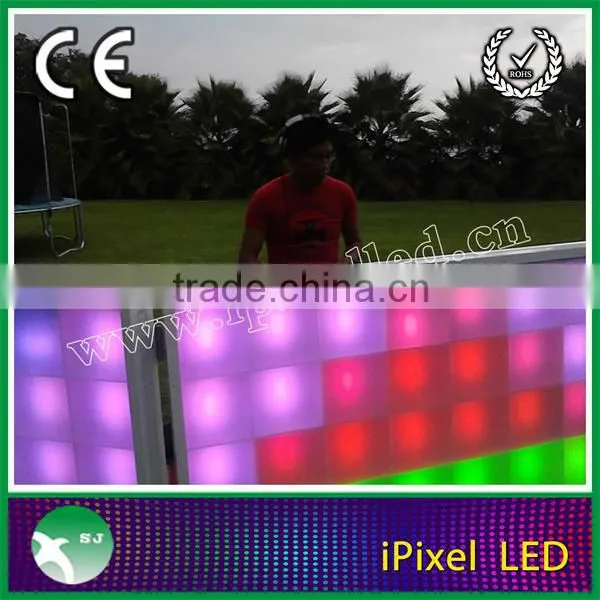

2)exterior walls of buildings, advertisement screen, stage screen
3)Outdoor sign,Logo and night club decoration
Packaging:
Service:
1.Reply your inquiry in 24 hours
2.Experienced staffs answer all your questions in fluent English
3.Customized design is available.OEM&ODM are welcomed
4.Exclusive and unique solution can be provided to our customer by our well trained and professional technicians
5.Special discount and protection of sales area provided to our distributor
Shipment:
1.Goods will be delivered within 3-5 working days after the payment received
2.We ship item via Door to Door service express or air and sea.
Waranty:
1. All products we sell are in good quality and have been tested before they are shipped out
