Home > Lights & Lighting > LED Encapsulation Series > LED Module > Programmable Dot Led Module DMX Led Pxiel Sign Light
US$ 0.2 - 2
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Model Number:
SJ-3535-ICRGB ws2801
Chip Material:
Other, Epistar
Emitting Color:
Warm White
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen yantian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Full Color Changing Programmable Led Pixel Module Backlight Ws2801US$ 0.2 - 2MOQ: 20 Pieces -
3/4lamps Led Module (CE,RoHS)with Smd 3528 /5050$single ColorUS$ 0.2 - 2MOQ: 20 Pieces
-
Waterprooof Rgb Smd 5050 Led Pixel Module 20 Pcs/stand Ws2801US$ 0.2 - 2MOQ: 20 Pieces
-
Full Color Pixel Module Ws2801 Smd 5050 Rgb Led Module Wateproof dc 12V 20 Pcs/string Wth Pitch 8cmUS$ 0.2 - 2MOQ: 20 Pieces
-
High Brightness Led Module for Illuminated Signs 12vdc WatreproofUS$ 0.2 - 2MOQ: 1 Piece
Model Number
SJ-3535-ICRGB ws2801
Chip Material
Other, Epistar
Emitting Color
Warm White
Luminous Intensity
6500
Luminous Flux(lm)
16-19lm
Optical Attenuation(%)
0.3%
Power
Other, 0.96, 0.96W
Power Dissipation
0.5%
Color Rendering Index(Ra)
85
Color Temperature
rgb
Operating Temperature(℃)
-40, 60
Storage Temperature(℃)
-20, 60
Place of Origin
Guangdong, China
Brand Name
SJ
Certification
CE
Specifications
1 epistar2 factory direct price
3 ws2801 chip
4 2years warranty
ws2801 pixel square led module
description:
Ø Superbright SMD top LED & viewing angle, high brightness output, no spot and shadow.
Ø Colors can be chosen as Full color, and the lumen is R:3/G:9.6/B:2.4lm.
Ø Low power consumption & operating voltage, safe and energy-saving.
Ø With IP65 protection rating.
Ø Solid-state, high shock or vibration resistant, long lifetime, more than 50000 hours.
Ø Easy installation with mounting holes and 3M adhesive tape on the back.
Ø CE & Rohs 5050 smd led controller flashing module ic chip
Features:
4 leds ws2801 rgb pixel led backlight module
l individually Control
l Programable & SD controller
l DMX 512 Controllalbe
l Madrix compatible
l IP66, Water-proof protection
l Easy installation (two options: screw fixed, or 3M double side adhesive tape)
| 20pcs per string, 8cm spacing apart ,metal case
l Programable & SD controller
l DMX 512 Controllalbe
l Madrix compatible
l IP66, Water-proof protection
l Easy installation (two options: screw fixed, or 3M double side adhesive tape)
| 20pcs per string, 8cm spacing apart ,metal case
| 3535 size 4pcs 5050 leds ws2801 rgb pixel led backlight module, arduino
datasheet
Model NO. | SJ-3535-2801 |
IC chip | WS2801 |
Power Consumption | 0.96W |
Work Voltage | DC 12V |
Beam Angle | ≥120 |
LED Quantity | 4 PCS SMD 5050 |
Color | Full color (ICRGB) |
Dimension | 36*36*4mm |
Waterproof Grade | IP66 |
Work Temperature | -40-+60°C |
Life-span | 50,000H |
Certificate | CE&RoHS |
Warranty | 2 years |
Details
Payments
- L/C
- T/T
- Western Union
- MoneyGram
- Goods will be delivered within 3-5 working days after the payment received
- We ship item via Door to Door service express or air and sea.

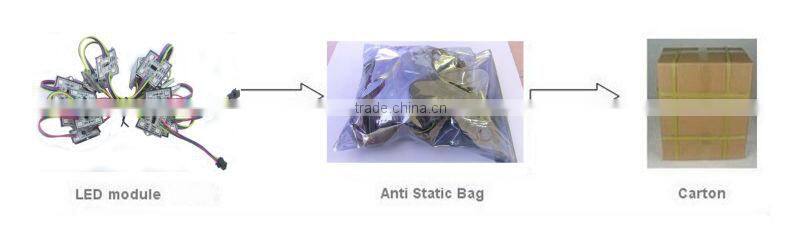

Packing
Project
Thank for attention
