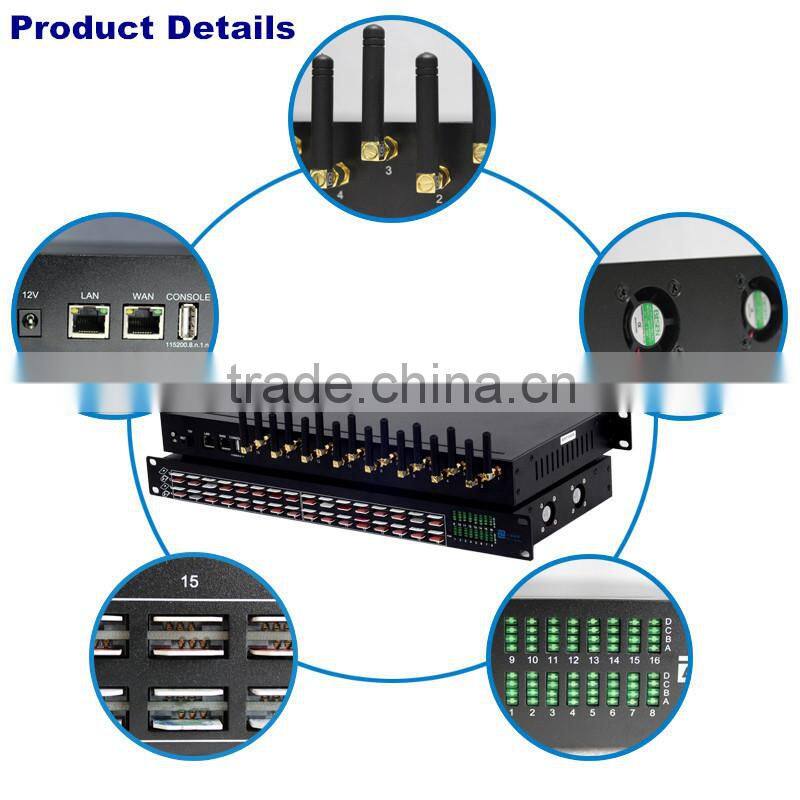

Product Details
Place of Origin: | Guangdong, China | Brand Name: | Ejoin | Model Number: | ACOM 516C-64 |
Type: | VoIP Gateway |
Product Description
ACOM516 series VoIP Product
ACOM516 series is able to process traditional voice call service and internet data service. Compare to the
ACOM508 GSM/CDMA/WCDMA series VoIP Gateway,ACOM516 series adapt new hardware and software
structure, which supports up to 16 concurrent calls.
♦ Special Features:
Support G729a/b/e,G723.1,G.711 A/U law, iLBC auto-selecting l EBO(Ejoin Bandwidth Optimization)
Proxy Encryption Solution for IP Block
Support SIM Bank
VPN(pptp)
SIM Card Rotating(ACOM516-64)
Solution to solve the SIM card blocked by:
Accumulated Call Duration
Accumulated Connected Calls
Accumulated Calls
Consecutive Failed Calls
Consecutive No-Alert Calls
Consecutive No-Answer Calls
Consecutive No Carrier Calls
Consecutive Short-Duration Calls
tation intelligent switching
lERMS(Ejoin Remote Management System)
Port Inter-Calling
Fake Ringback
Call Duration Limitation for SIM Card/Single
Dial Plan/Prefix Inward Translation/Intelligent Routing
♦ Mobile Features:
l SMS Send, Receive and Forward(GSM/SIP/HTTP) l SMS Inbox
l AT Command , USSD
l SMS Format: PDU/TXT
l PIN Code Management
l CDMA Delay Answer
l GSM Polarity Reversal
l Carrier Selection
l Caller ID Hidden(need SIM Card support)
♦ Maintenance and Management:
l Multi-language Interface
l USB Serial COM
l Configuration Backup and Restore
l Support HTTP/TFTP Upgrade
l Call statistics: ASR,ACD,PDD
l Ejoin Remote Management System
♦ Specification:
Model | ACOM 516-16/64 |
Number of Channels | 16 channels |
Frequency | GSM: 850/900/1800/1900MHz CDMA:450/800/1900MHz WCDMA:850/900/1800/1900/2100MHz |
SIP Specification | SIP/2.0 RFC3261 Session Timer RFC4028 STUN |
Network Protocols | DHCP/PPPoE/VPN(pptp) NTP Telnet/HTTP/FTP/TFTP Encryption:Ejoin,VOS2000,RC4,XOP.Base64 |
Telephony Features | Hot-line call ,Dial plan, Speed dial, Phone book, CDR, LCR, White/Black list |
Telephony Signaling | DTMF tone dectection/generation DTMF relay: in-band, RFC 2833 and SIP info Call forward: unconditional, no answer and busy N-way conferencing Caller ID display/generation, Mobile Number Portability |
Voice Capability | Voice codecs:G729a/b/e,G723.1,G.711 A/U law, iLBC Echo cancellation Silence suppression & detection(VAD, CNG) Adaptive jitter buffer Volume adjustable IVR customized |
Number of Ports | 1 WAN 10/100Base-T ethernet(RJ-45 connector) 1 LAN 10/100Base-T ethernet(RJ-45 connector) 1 Console(USB) |
LEDs | 1 Power and 16 groups of card online and running status indicator |
Power Supply | 100-240VAC, 50 - 60 Hz IN, 12V/5A OUT |
Operating Environment | Operating temperature: 0 - 50ºC Operating humidity: 10 – 90%RH |
Warranty | 12 Months |

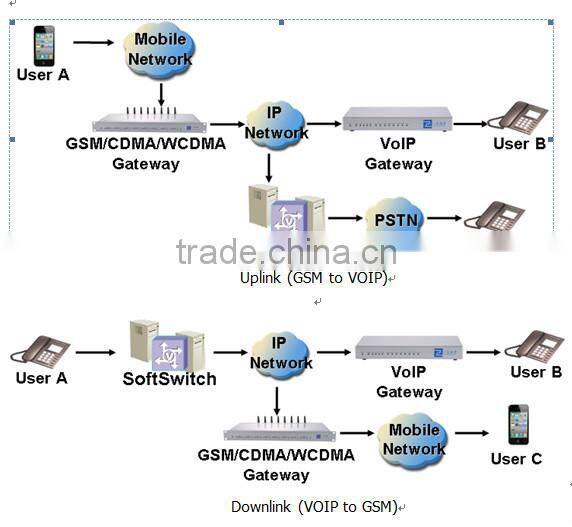

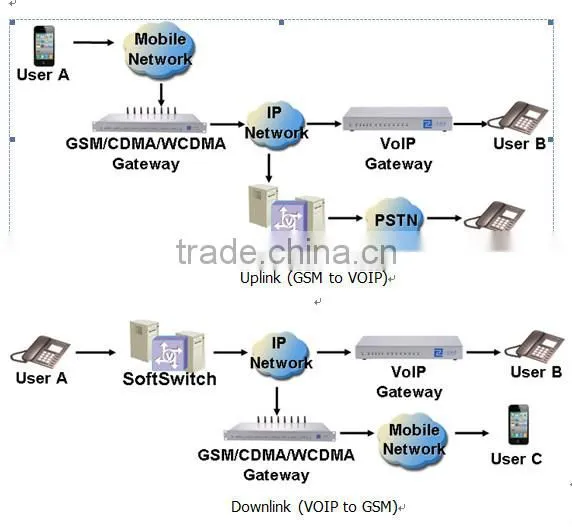

♦ Uplink and Downlink Solution:
♦ Package details:
♦ About after Service:
Warranty:
12 Months
Technical support:
7×24 Hours Stand By !!!
