Product Details
Place of Origin: | Guangdong, China | Brand Name: | Ejoin | Model Number: | ACOM 516 series |
Type: | VoIP Gateway |
Product Description
ACOM516 series VoIP Product
ACOM516 series is able to process traditional voice call service and internet data service. Compare to the
ACOM508 GSM/CDMA/WCDMA series VoIP Gateway,ACOM516 series adapt new hardware and software
structure, which supports up to 16 concurrent calls.
♦ Special Features:
Support G729a/b/e,G723.1,G.711 A/U law, iLBC auto-selecting l EBO(Ejoin Bandwidth Optimization)
Proxy Encryption Solution for IP Block
Support SIM Bank
VPN(pptp)
SIM Card Rotating(ACOM516-64)
Solution to solve the SIM card blocked by:
Accumulated Call Duration
Accumulated Connected Calls
Accumulated Calls
Consecutive Failed Calls
Consecutive No-Alert Calls
Consecutive No-Answer Calls
Consecutive No Carrier Calls
Consecutive Short-Duration Calls
tation intelligent switching
lERMS(Ejoin Remote Management System)
Port Inter-Calling
Fake Ringback
Call Duration Limitation for SIM Card/Single
Dial Plan/Prefix Inward Translation/Intelligent Routing
♦ Mobile Features:
l SMS Send, Receive and Forward(GSM/SIP/HTTP) l SMS Inbox
l AT Command , USSD
l SMS Format: PDU/TXT
l PIN Code Management
l CDMA Delay Answer
l GSM Polarity Reversal
l Carrier Selection
l Caller ID Hidden(need SIM Card support)
♦ Maintenance and Management:
l Multi-language Interface
l USB Serial COM
l Configuration Backup and Restore
l Support HTTP/TFTP Upgrade
l Call statistics: ASR,ACD,PDD
l Ejoin Remote Management System
♦ Specification:
Model | ACOM 516-16/64 |
Number of Channels | 16 channels |
Frequency | GSM: 850/900/1800/1900MHz CDMA:450/800/1900MHz WCDMA:850/900/1800/1900/2100MHz |
SIP Specification | SIP/2.0 RFC3261 Session Timer RFC4028 STUN |
Network Protocols | DHCP/PPPoE/VPN(pptp) NTP Telnet/HTTP/FTP/TFTP Encryption:Ejoin,VOS2000,RC4,XOP.Base64 |
Telephony Features | Hot-line call ,Dial plan, Speed dial, Phone book, CDR, LCR, White/Black list |
Telephony Signaling | DTMF tone dectection/generation DTMF relay: in-band, RFC 2833 and SIP info Call forward: unconditional, no answer and busy N-way conferencing Caller ID display/generation, Mobile Number Portability |
Voice Capability | Voice codecs:G729a/b/e,G723.1,G.711 A/U law, iLBC Echo cancellation Silence suppression & detection(VAD, CNG) Adaptive jitter buffer Volume adjustable IVR customized |
Number of Ports | 1 WAN 10/100Base-T ethernet(RJ-45 connector) 1 LAN 10/100Base-T ethernet(RJ-45 connector) 1 Console(USB) |
LEDs | 1 Power and 16 groups of card online and running status indicator |
Power Supply | 100-240VAC, 50 - 60 Hz IN, 12V/5A OUT |
Operating Environment | Operating temperature: 0 - 50ºC Operating humidity: 10 – 90%RH |
Warranty | 12 Months |

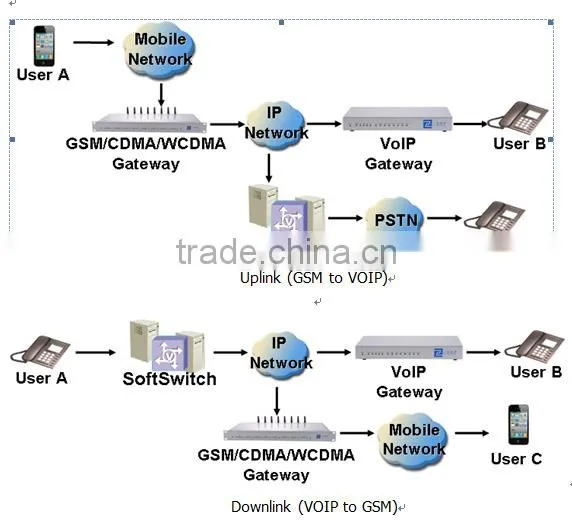

1.Application
1)If you are in china but your main business is in Malaysia,you only put a Malaysia SIM card into the GoIP.In this condition, all calling the SIM number can connect your Phone number in China directly.
2)When you are using the telephone, and you are want to get preferential from VoIP Phone anytime and anywhere.You just call the SIM card number which in GoIP,the calling number would send to Server by GoIP,then the server receive the calling number and establish the new calling.Then you will receive the new calling,you just accept the calling,Now you are calling with your customer by server.

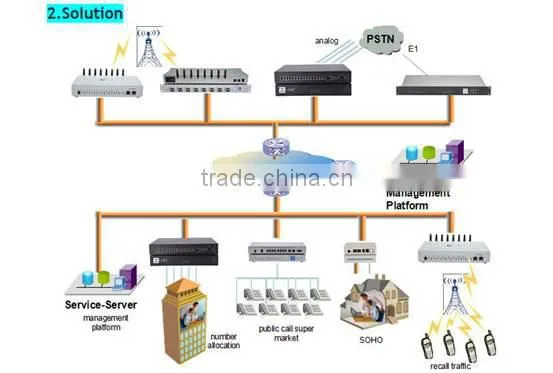

1)Used in conjunction with VOS, VPS, call back or other Asterisk-based softswitches, for accessing VoIP network by SIM cards, LCR select least cost router to reduce the cost of calls.
2)Saving Cost on International and Long Distance Calls,when you are in the other countries& you have this gateway at your Local office,you could dial & receive phone call from your customers as you are there without Long Distance fee Very excellent solution for internal company with branch offices oversea
♦ About after Service:
Warranty: 12 Months
Technical support:
7×24 Hours Stand By !!!
