Home > Products > Tube Ice Machine > Transparent Ice Tube for Hotels and Restaurants(1Ton/Day)

Transparent Ice Tube for Hotels and Restaurants(1Ton/Day)

FOB Price

US$ 1 - 15,000 / Set

1 Set(Min. Order)

Port Guangzhou Port
Payment TermsT/T D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Capacity	1000kg/day
Place of Origin	Guangdong, China	Brand Name	Koller
Model Number	TV10	Ice Shape	Other, tube ice
Voltage	380v	Power(W)	3kw
Dimension(LWH)	1210mm1550mm1800mm	Weight	900kg
Certification	CE	Warranty	12months after delivery
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1,Min. Order: 1 Set
2,FOB Price: US $0-100000 / Set
3,Payment Terms: L/C,T/T,Western Union
4,Supply Ability: 50 Sets/month

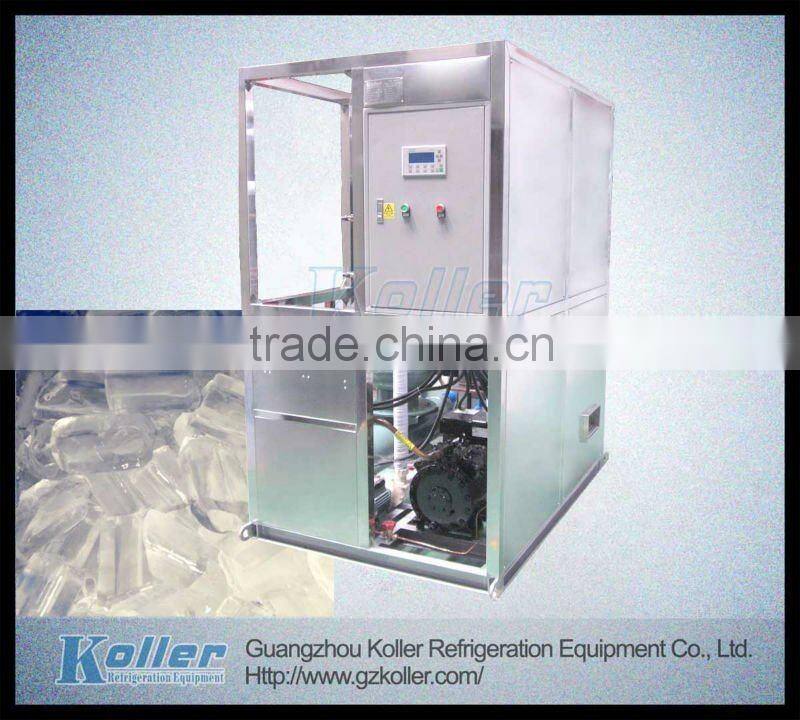

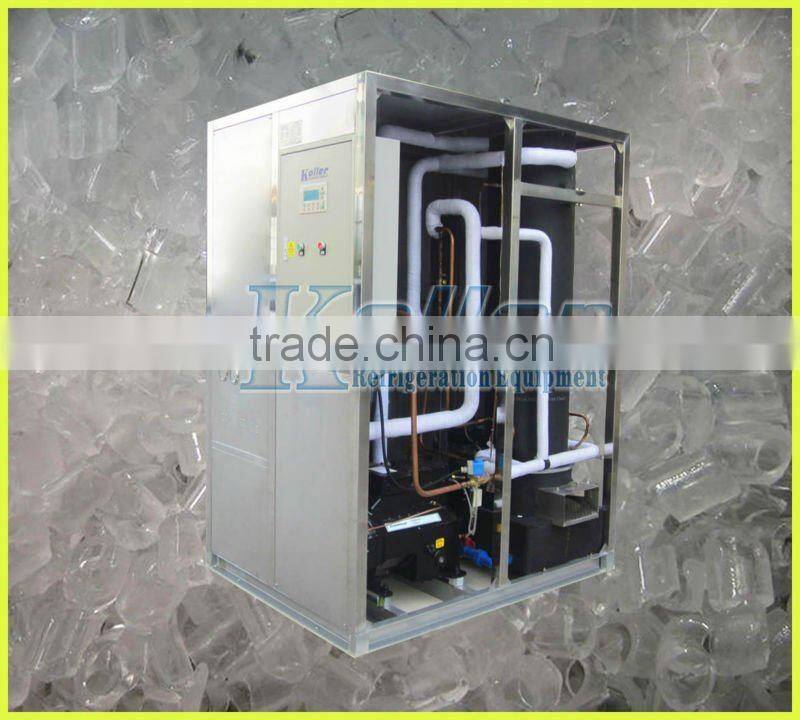

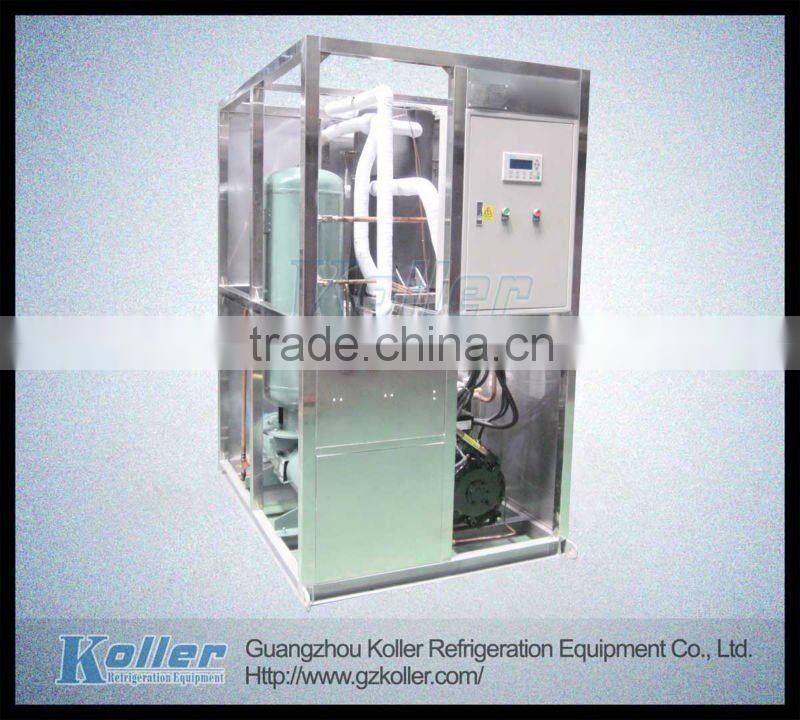

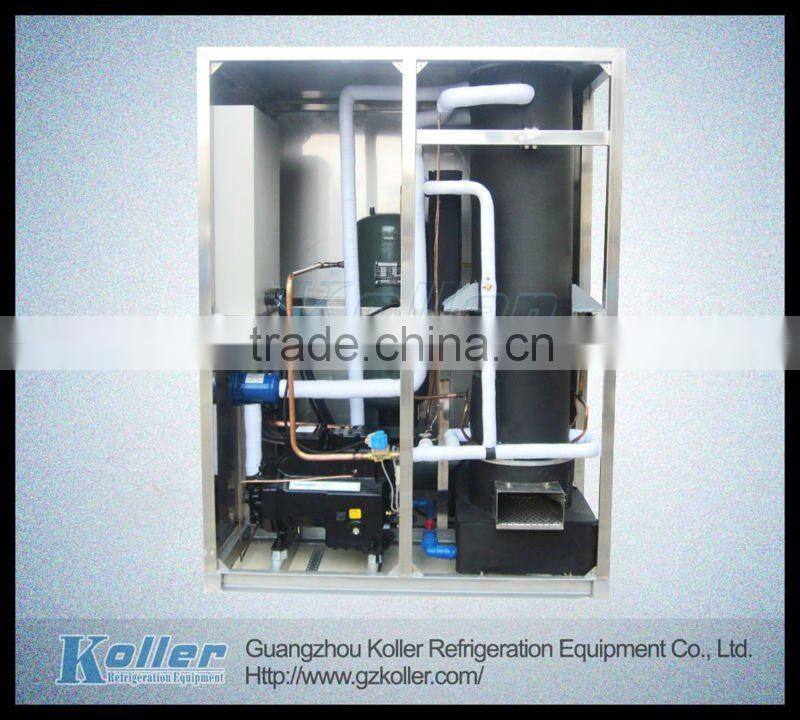

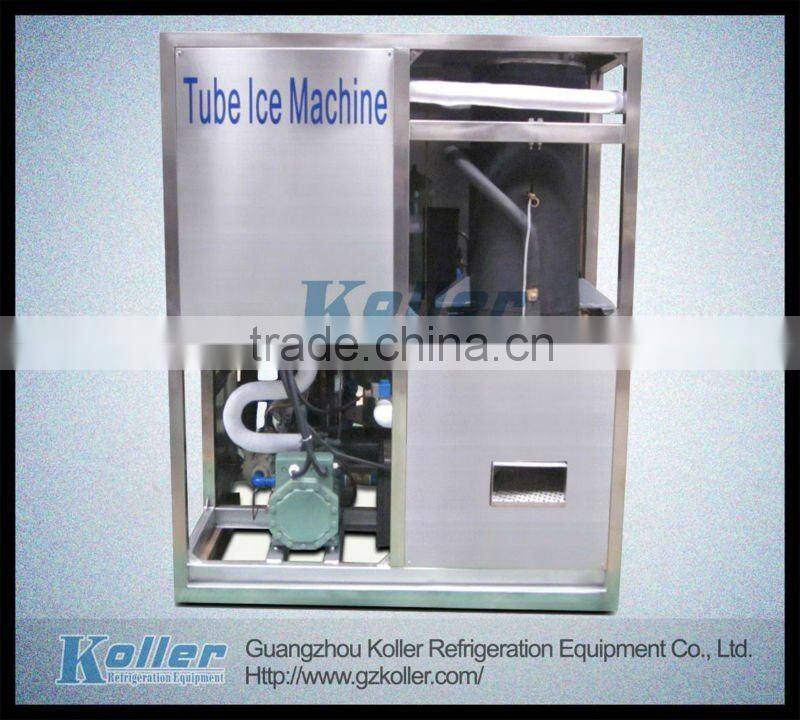

Transparent Ice Tube Machine TV10

1. Product Features

1). Harvest ice way: Hot gas defrosts;

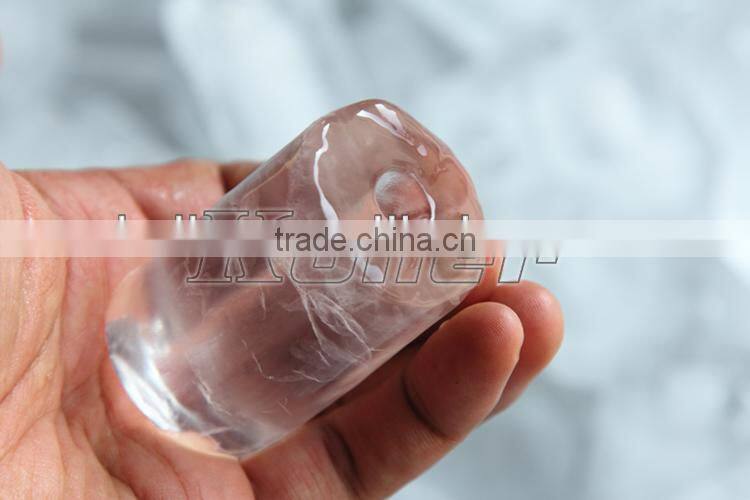

2). Ice tube Size: 26mm, 28mm, 30mm or 34mm in diameter; 27mm~42mm in length.

3). Evaporator: tube vessel, its top and bottom part was welded with quality joining.

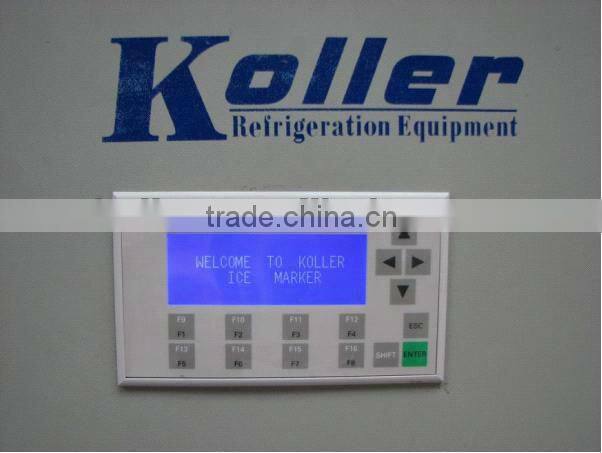

4). PLC program Logic Controller, which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.

5). Rotating Driver Ice Cutter: stainless steel 304 Ice Cutter Blade run by medium speed gear motor.

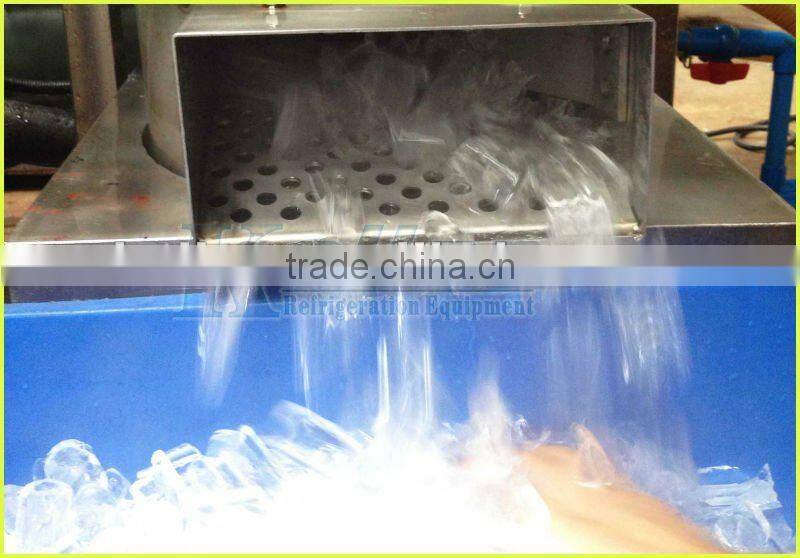

6). Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary.

2. Main Components

Item	Name of Components	Brand Name	Original Country
1	Compressor	BITZER/COPELAND	Germany/U.S.A
2	Ice Maker Evaporator Grid	KOLLER	China
3	Water cooled condenser	KOLLER	China
4	Refrigeration components	DANFOSS/CASTEL	Denmark/Italy
5	PLC Program control	SIEMENS	Germany
6	Electrical components	LG (LS)	South Korea

3. Technical information

Tube ice machine: 1210mm*1550mm*1800mm;

Cooling tower: 1230mm*1230mm*1260mm.

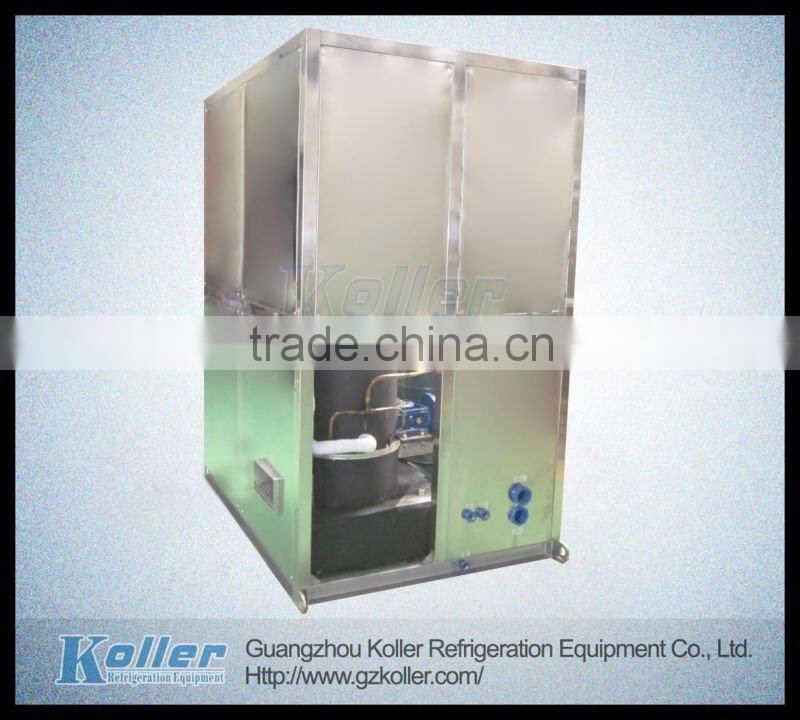

Tube ice machine with water cooling

Cooling tower

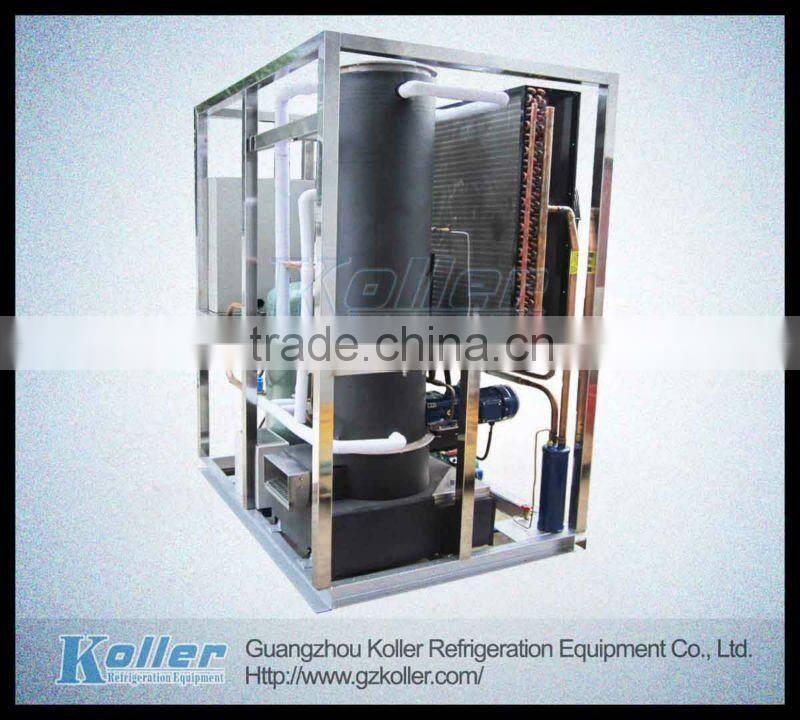

Tube ice machine with air cooling

4. Supply Power Form: 380V, 50Hz, 3P or 220V, 60Hz, 3P.

5. Cooling System: Water cooled system.

6. Installation: The machine has been installed and tested before delivery, only needs customer to connect water pipes and power, the accessory spared parts are offered free of charge.
