Specifications
1,Min.Order:1 Set2,FOB Price: US $0-100000 / Set
3,Payment Terms: L/C,T/T,Western Union
4,Supply Ability: 50 Sets/month

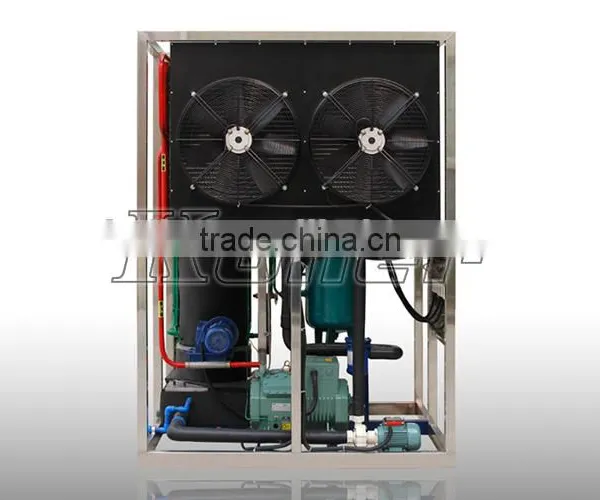

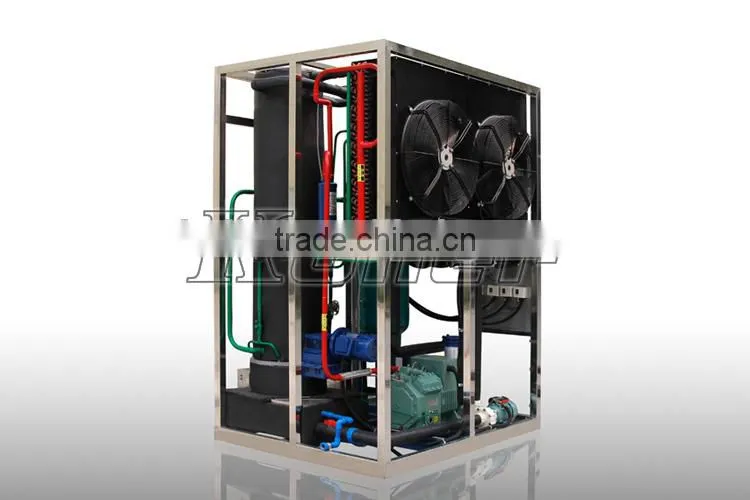

TV10 Ice Tube Maker
1. Product Features
1. Harvest ice way: Hot gas defrosts; 2. Ice tube Size: 20mm, 28mm, 34mm or 40mm in diameter; 30mm~50mm in length.
3. Evaporator: tube vessel, its top and bottom part was welded with quality joining.
4. PLC program Logic Controller, which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.
5. Rotating Driver Ice Cutter: stainless steel 304 Ice Cutter Blade run by medium speed gear motor.
6. Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary.
2. Main Components
Item |
Name of Components |
Brand Name |
Original Country |
1 |
Compressor |
BITZER |
Germany |
2 |
Ice Maker Evaporator Grid |
KOLLER |
China |
3 |
Water cooled condenser |
KOLLER |
|
4 |
Refrigeration components |
DANFOSS/CASTAL |
Demark/Italy |
5 |
PLC Program control |
SIMENS |
Germany |
6 |
Electrical components |
LG (LS) |
South Korea |
3. Tube ice machine : 1640mm*1380mm*2010mm;
4. Supply Power Form: 380V, 50Hz, 3P or 220V, 60Hz, 3P.
5. Cooling System: Air cooled system.
6. Installation: The machine has been installed and tested before delivery, only needs customer to connect water pipes and power, the accessory spared parts are offered free of charge.
7.Koller Similar Tube Ice Machine

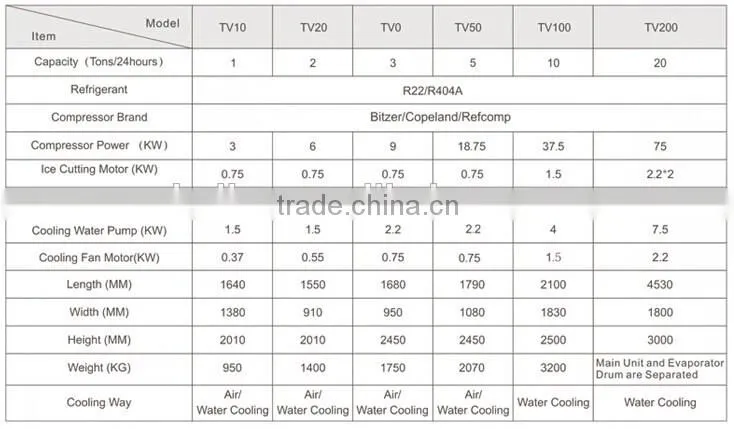

8.Koller TV Series Tube Ice Machine Technical Parameter:

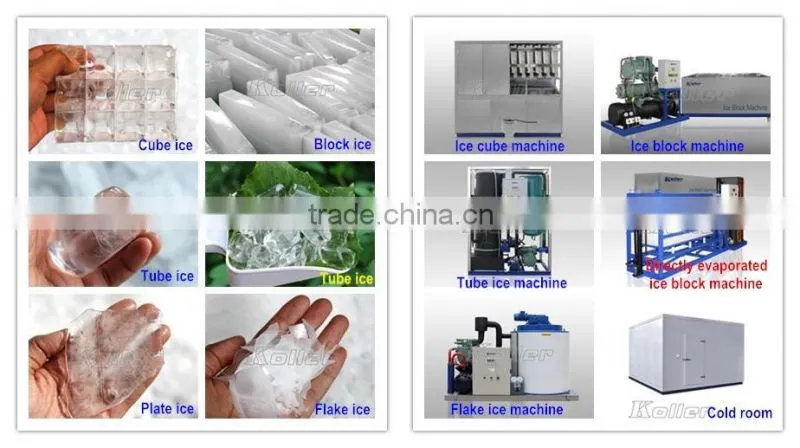

9.Koller Other Ice Machines and Refrigeration Equipments:
