Large Capacity 5 Tons Tube Ice Maker for Ice Plants

FOB Price

US$ 1 - 100,000 / Set

1 Set(Min. Order)

Port Guangzhou Port
Payment TermsT/T D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Capacity	5000kg/Day
Place of Origin	Guangdong, China	Brand Name	Koller
Model Number	TV50	Ice Shape	Other, tube ice
Voltage	380v/50hz/3p or 220V/60HZ/3P	Power(W)	23 HP
Dimension(LWH)	179010802270mm	Weight	2070kg
Certification	CE	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

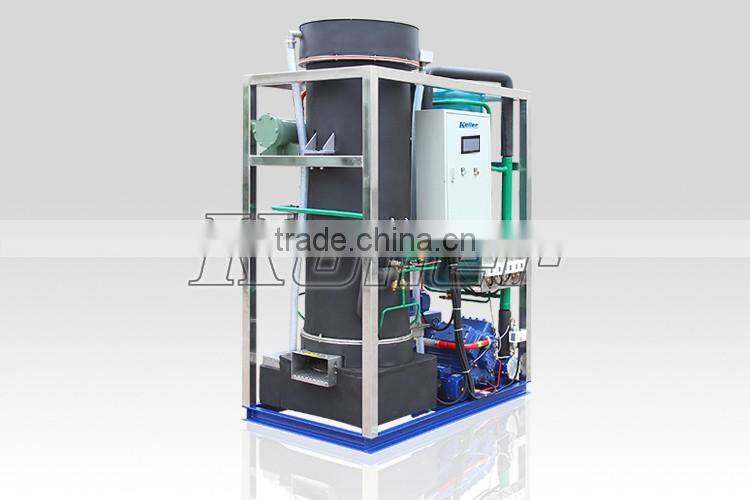

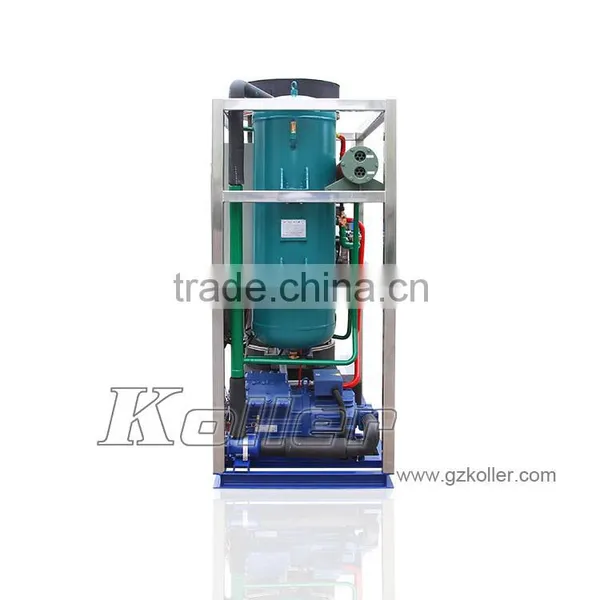

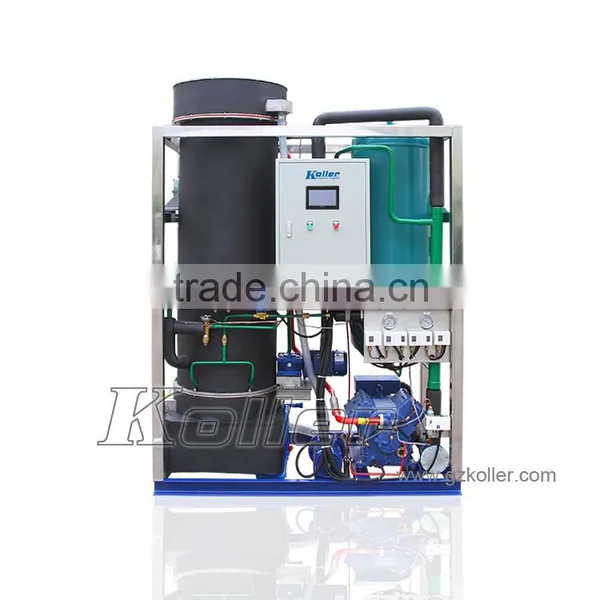

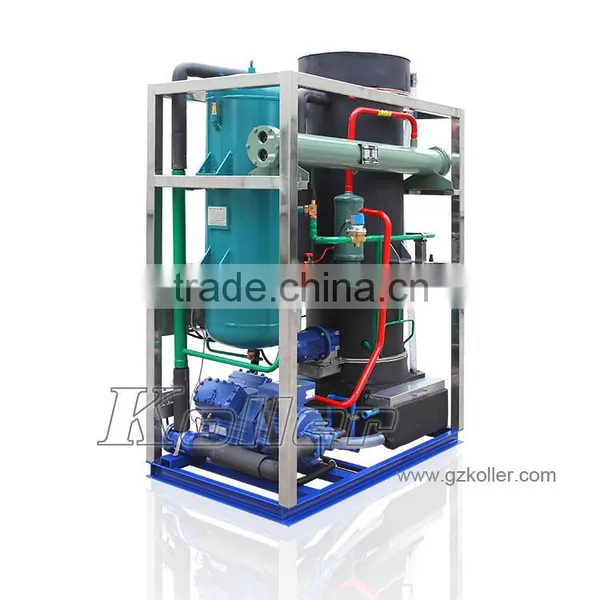

Large Capacity 5 Tons Tube Ice Maker for Ice Plants

Basic parameter

No.	Name		Technical Data
1	Daily capacity		5 tons/24h
2	Material for framework		Stainless steel 304
3	Material for evaporator		Stainless steel 304
4	Tube ice size		28 mm or 34mm in diameter
5	Compressor	Brand name	Semi-hermetic, Bitzer compressor
		Horse power	23 HP
		Quantity	1 set
6	Measurement	Before packing	1790mm(L)1080mm(W)2270mm(H)
Power issues for ice tube machine TV10
1	Compressor power		23 HP
2	Circulated water pump power		1.1 KW
3	Ice cutter motor power		0.37 KW
4	Cooling pump and fan motor		2.2/0.75 KW
5	Running Voltage		220V 3P 60Hz or 380 V 3P 50Hz
6	Running Ampere for different refrigerant		21.5A [R404a] 20A [R22]
Power consumption: 80~85 KW*H making 1Ton ice; Water consumption: 1 Ton water can make 1Ton ice.

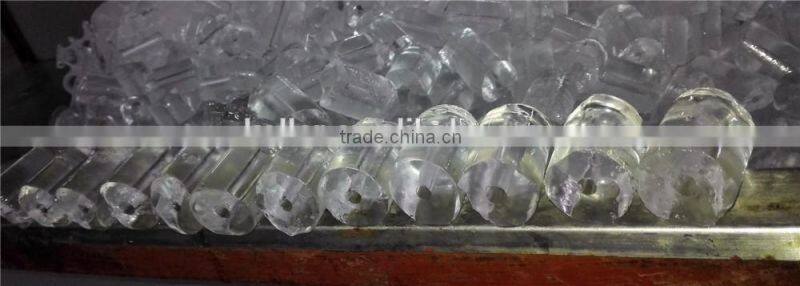

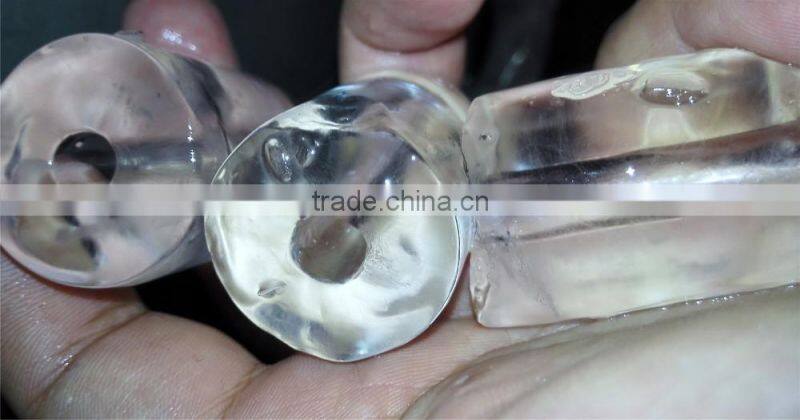

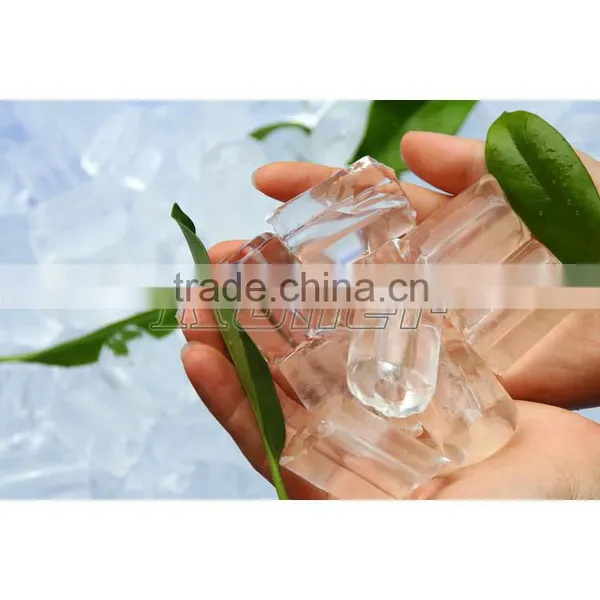

Ice tube diameter: 28mm or 34mm

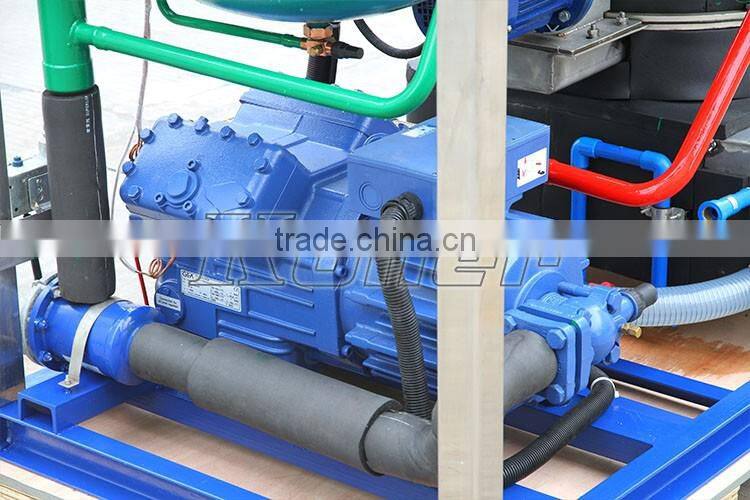

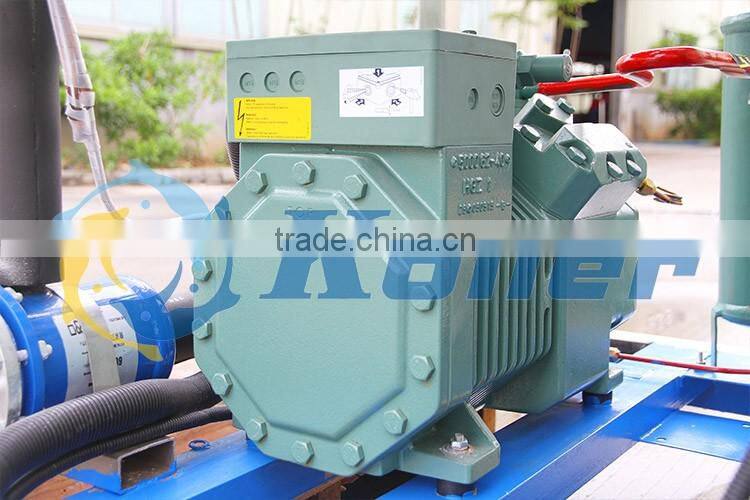

With Germany Bitzer compressor Or GEA BOCK

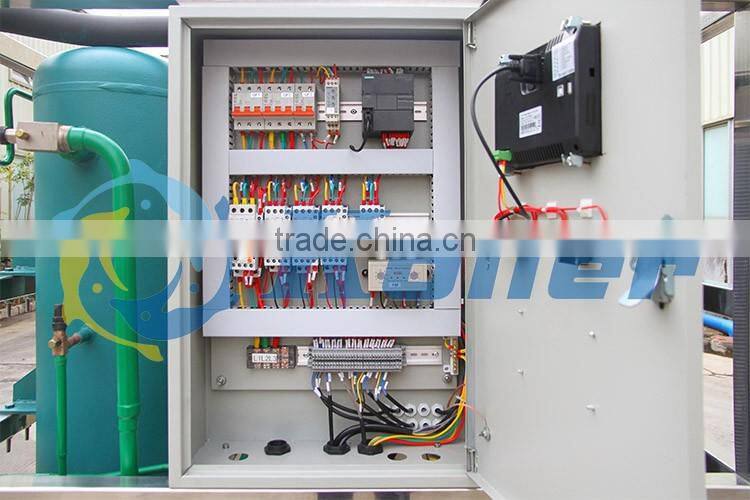

Germany SIEMENS PLC controlling system

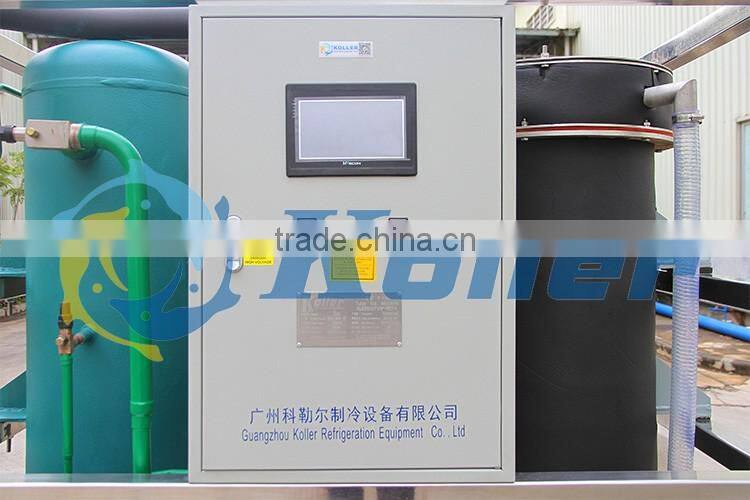

With touch screen design

Terms of Payment:

T/T. 50% of total value as advanced payment, the 50% balance should be paid before shipping.

Installation:

We will test and install the machine before shipping; you need to be ready for connecting the water pipes and power. The operation manual and CD are provided to guide the installation. Meanwhile, if the buyer needs us to send engineer for installation in your place, the buyer affords the tickets, accommodation and food for the engineer, free of charge within 3 days for installation.

Warranty period:

12 months for the machine after delivery. The spare parts are provided with machine free of charge.

Other capacity
