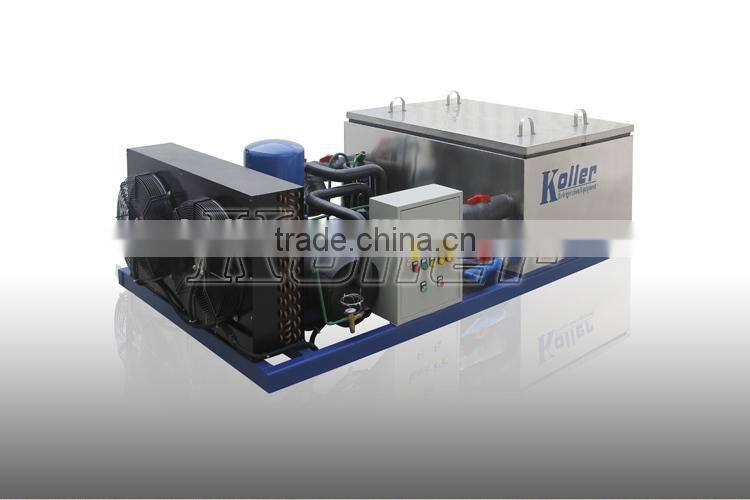

1. Block Ice Machine
a. Integrated design: machinery unit, cooling fan and water tank are stick together, space saving;
b. It adopts digital temperature control;
c. Best material: stainless steel SUS304 for water tank and ice cans, anti-rust and anti-corrosion;
d. Application: keep vegetable/fruits/meat/fish fresh, chemical industrial use and ice plant supplying.

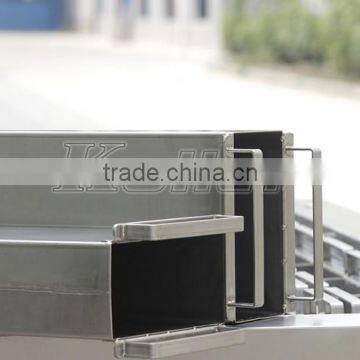

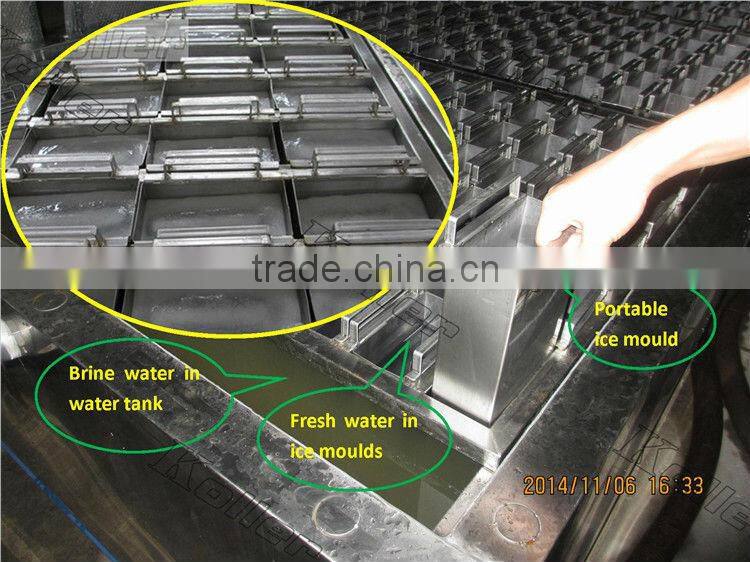

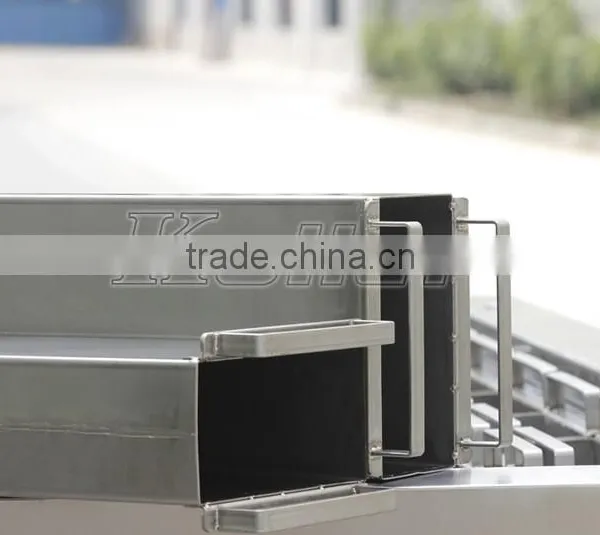

Stainless steel ice cans

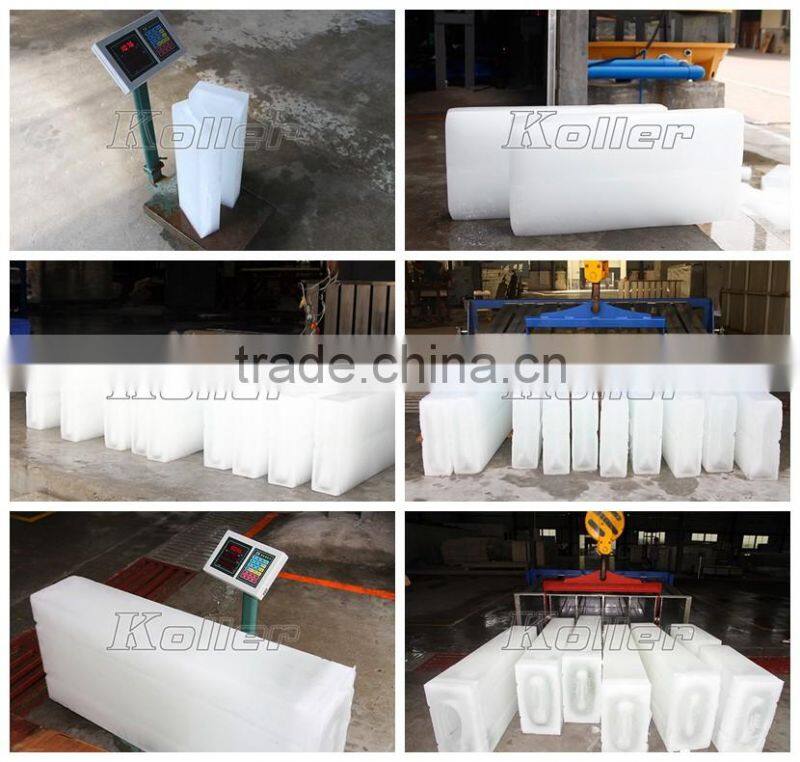

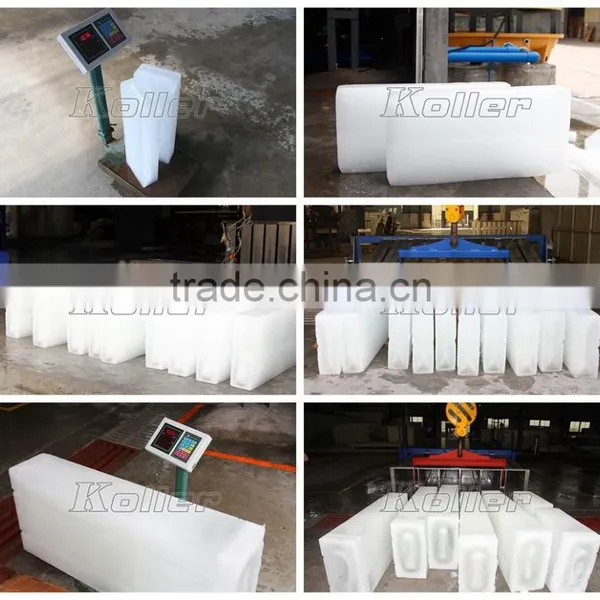

2. Block Ice
It is hard and solid, not easy to melt. We have ice size of
5kg/10kg/15kg/20kg/25kg/30kg/50kg/100kg.
| Koller block ice/ ice block | |||
| Ice weight | Dimension(L*W*H) mm | Freezing time | Times per day |
| 5 kg | 80*165*500 | 4.8 | 5 |
| 10 kg | 100*205*610 | 6 | 4 |
| 15 kg | 100*320*610 | 6 | 4 |
| 20 kg | 120*320*750 | 8 | 3 |
| 25 kg | 120*360*750 | 8 | 3 |
| 30 kg | 145*300*950 | 12 | 2 |
| 50 kg | 145*460*1000 | 12 | 2 |
| 100 kg | 210*550*1200 | 24 | 1 |
3. Technical Parameters
| Model | capacity |
compressor |
Compressor Power |
Cooling system |
refrigerant |
|
MB10 |
1ton |

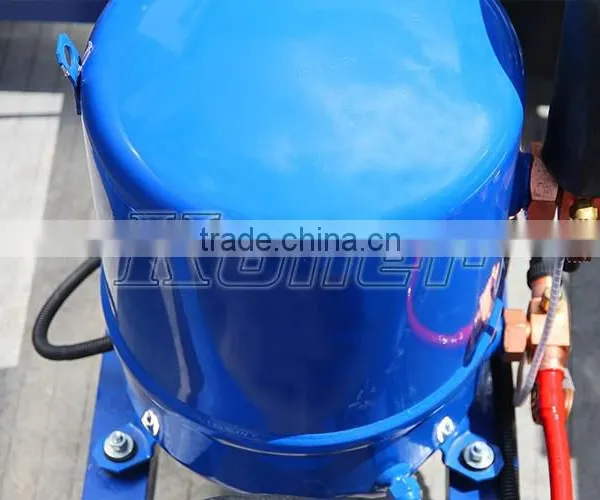

Menurope |
5HP |
Air&Water |
R22/ R404A |
|
MB20 |
2tons |
Menurope |
10HP |
Air&Water |
R22/ R404A |
|
MB30 |
3tons |
Bitzer/Copeland |
10HP/8HP |
Air&Water |
R22/ R404A |
|
MB40 |
4tons |
Bitzer/Copeland |
20HP |
Water |
R22/ R404A |
|
MB50 |
5tons |
Bitzer/Copeland |
25HP |
Water |
R22/ R404A |
|
MB60 |
6tons |
Bitzer/Copeland |
25HP |
Water |
R22/ R404A |
|
MB80 |
8tons |
Bitzer/Copeland |
40HP |
Water |
R22/ R404A |
|
MB100 |
10tons |
Bitzer/Copeland |
50HP |
Water |
R22/ R404A |
|
MB150 |
15tons |
Bitzer/Copeland |
80HP |
Water |
R22/ R404A |
|
MB200 |
20tons |
Bitzer/Copeland |
90P |
Water |
R22/ R404A |
|
MB250 |
25tons |
Bitzer/Copeland |
120P |
Water |
R22/ R404A |
|
MB300 |
30tons |
Bitzer/Copeland |
150P |
Water |
R22/ R404A |
|

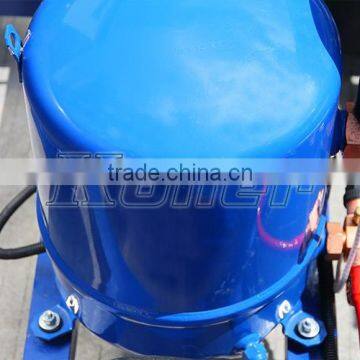

4. World famous brand components
Item |
Name of Components |
Brand Name |
Original Country |
1 |
Compressor |
BITZER |
Germany |
2 |
Evaporator |
KOLLER |
China |
3 |
Water cooled condenser |
KOLLER |
|
4 |
Refrigeration components |
DANFOSS/CASTEL |
Denmark/Italy |
5 |
Oil separator |
EMERSON |
USA |
6 |
Electrical components |
LG (LS) |
South Korea |
Installing by the user:
we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
Installing by Koller engineers:
We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
2~ 3 workers are required to assist the installation for big project.
Any delay due to customer’s reason, it will be charged from the 7th day, USD100/day for one person as installation fee. Free of charge for one week.
Maintenance and parts are free of charge within 12 months after selling
1. Can the machine run on the power of 1 phase?
For most of our machine, the answer is NO. Usually the power form for our machine is 380/415/440V 50Hz 3Phases or 220/380/415/440V 60Hz 3Phases. But for some small machine, 1 phase is OK.
2. Do you have CE certificate?
Yes. We have CE, SGS, IOS9001 to meet the needs of different countries.
3. Can you machine run by generator?
Yes. If the power supply of generator is stable.
