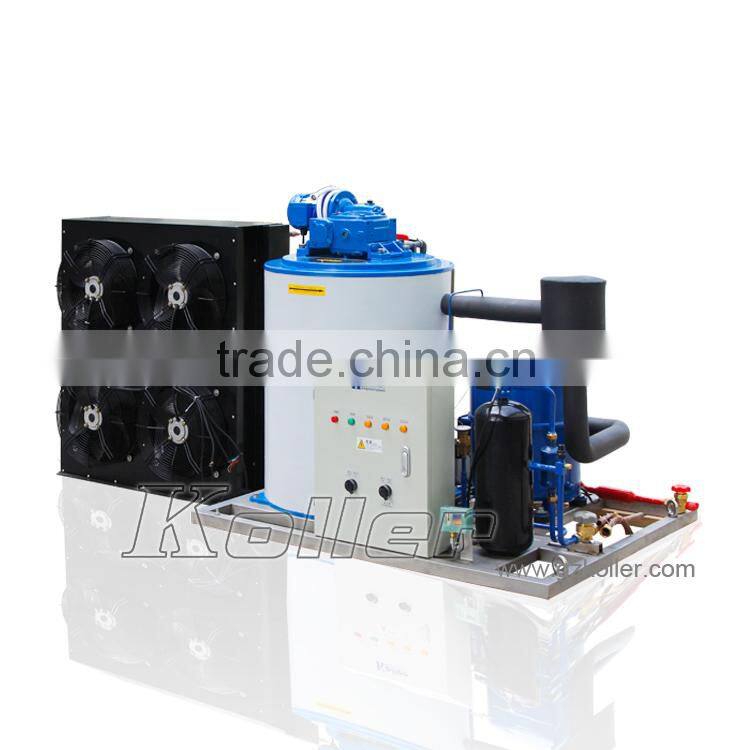

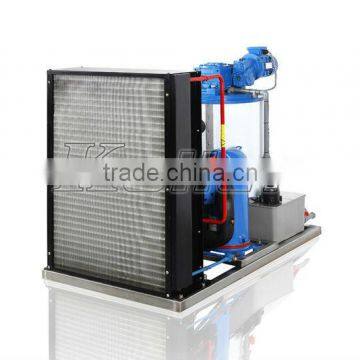

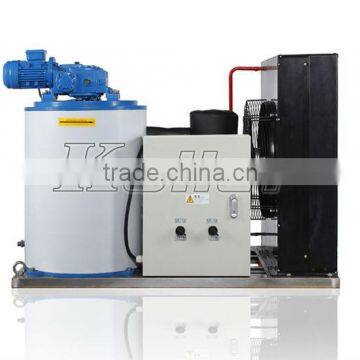

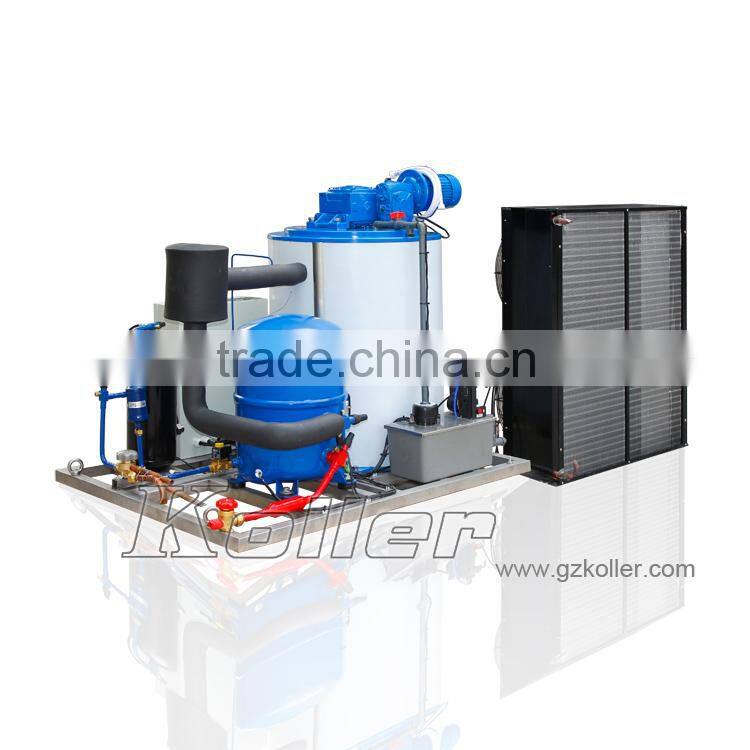

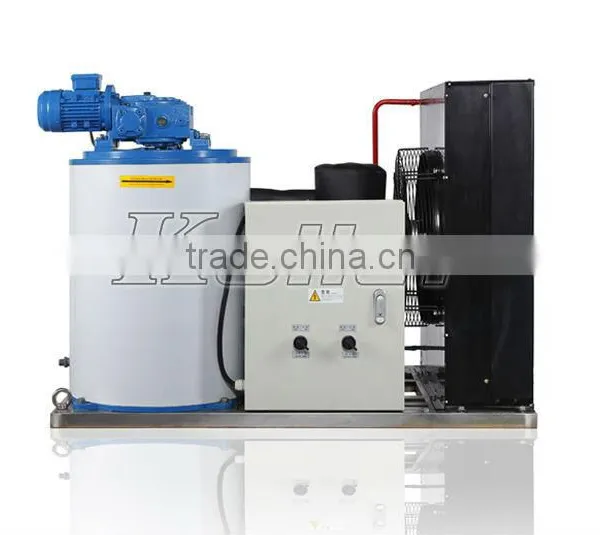

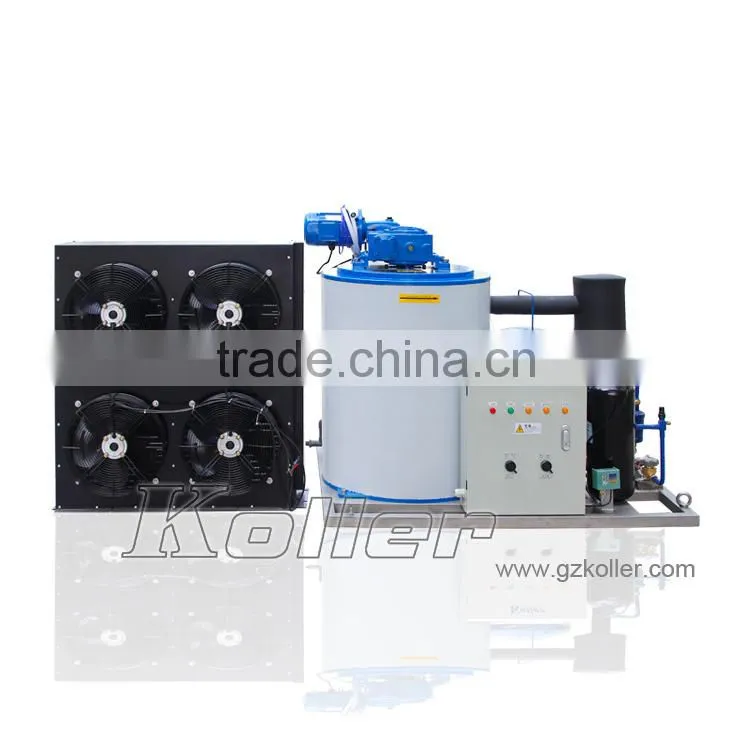

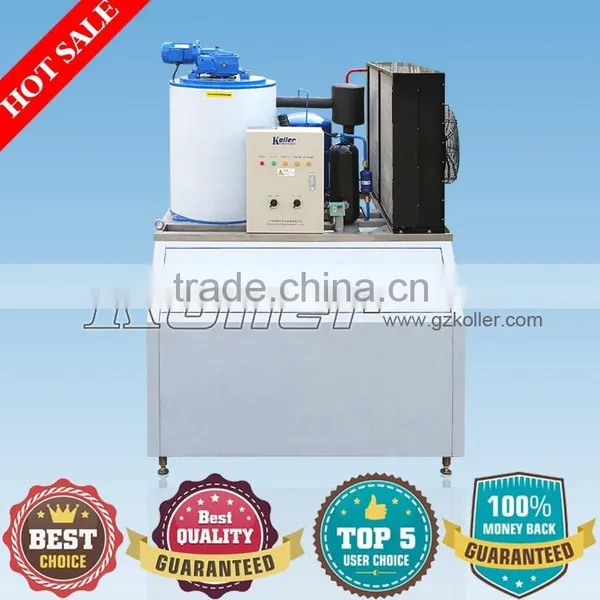

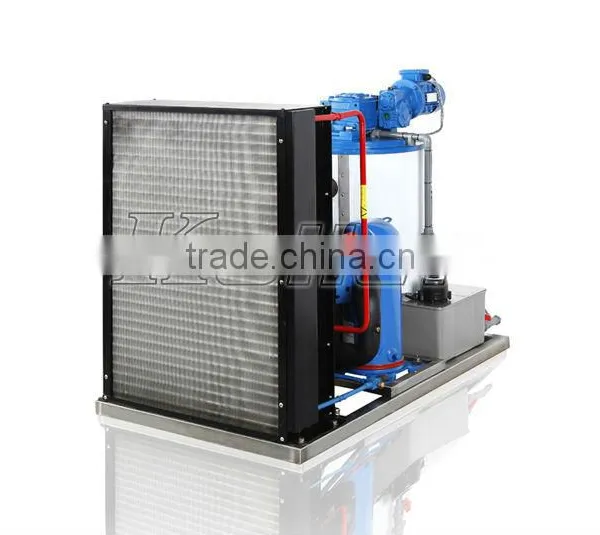

Dry ice making machinery 1 ton/day with ice bin for fishing from China supplier Koller KP20
1.Flake ice Application:
Freshwater Flake ice makers for Fishery, seafood processing.
2. Flake ice machine specification:

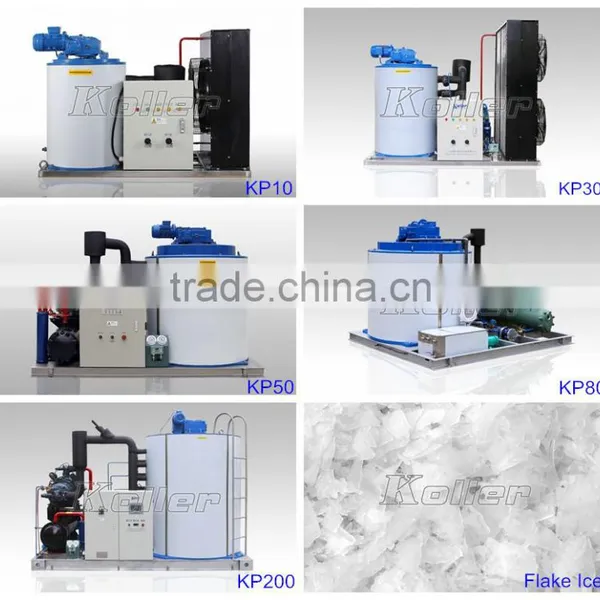

Koller Flake Ice Machine KP Series Technical Parameter:
| Model | KP10 | KP20 | KP30 | KP50 | KP60 | KP100 | KP200 |
| Capacity(Tons/24Hours) | 1 | 2 | 3 | 5 | 6 | 10 | 20 |
| Refrigerant | R22/R404A | ||||||
| Compressor Power(KW) | 3 | 6 | 9 | 18.75 | 27 | 37.6 | 64.8 |
| Motor Power(KW) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Circulating Water Pump Power(KW) | 0.75 | 0.75 | 0.7 | 1.5 | 1.5 | 1.5 | 1.5 |
| Cooling Water Pump Power(KW) | 1.5 | 2.2 | 2.2 | 4 | 5.5 | 5.5 | 7.5 |
| Cooling Fan Power(KW) | 0.37 | 2.2 | 2.2 | 4 | 5.5 | 5.5 | 7.5 |
| Weight(KG) | 380 | 500 | 980 | 1300 | 1800 | 2200 | 3600 |
| Measurement(L*W*H)(MM) | 1200*740*780 | 1560*1200*880 | 1700*910*1200 | 2200*1050*1600 | 3300*1600*1800 | 3600*1600*2100 | 4100*2100*2800 |
| Cooling Way | Water/Air Cooling | Water/Air Cooling | Water/Air Cooling | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
| Water Supply Pipe Diameter(MM) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
3. Product Description
Greatly save energy, only 80-85KW*H are consumed to produce one-ton ice;
Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags;
Adopts the world's famous brand components, which will grantee the best refrigeration effect and working condition.
Working condition for ice block machine:
Max. Ambient Temp |
+40°C |
Max Relative Humidity |
85% |
Supply water temp |
21°C |
Power supply |
380V 50/60HZ 3P or 220V 60HZ 3P |
Refrigerant |
R22/R404a |
Compressor type |
Semi-hermetic piston |
Cooling system |
Water cooling condenser |

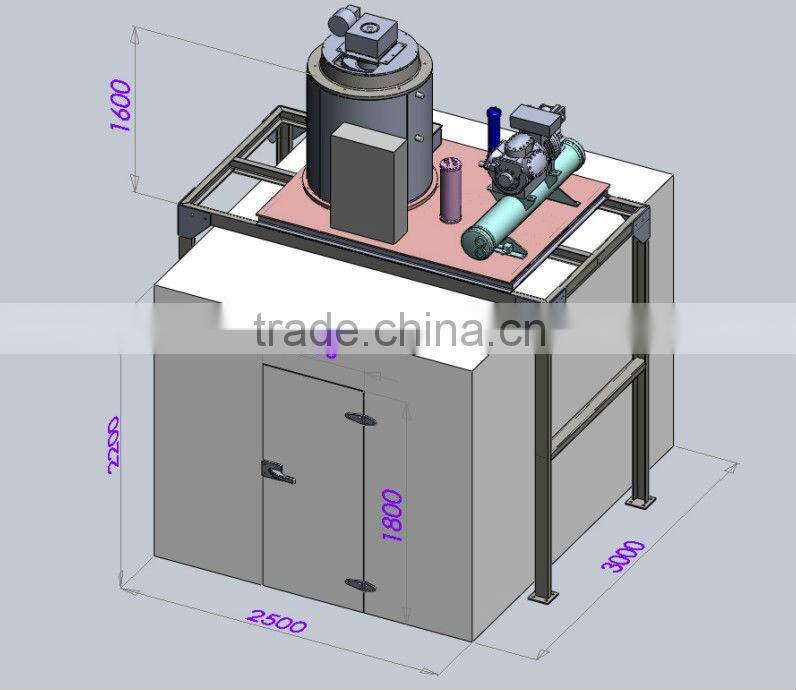

Flake ice machine with cold room
4. Installation:
Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
5.Warranty:
12 months warranty after delivery.
Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
Over 10 engineers available to service machinery overseas.
Free spare parts replacement within warranty period.
Beyond guarantee period, we will charge market price for spare parts.
6. Why choose us?
-
So far, we have exported ice machines to 150 countries in the world.
Excellent Brand of Chinese Ice Machine Industry.
The Drafting Committee of National Ice Machine Industry Standard.
Produce & Academic Research Strategy Cooperating Partner with Tsinghua University.
Independent after-sales department, 8 engineers are ready to service abroad.
