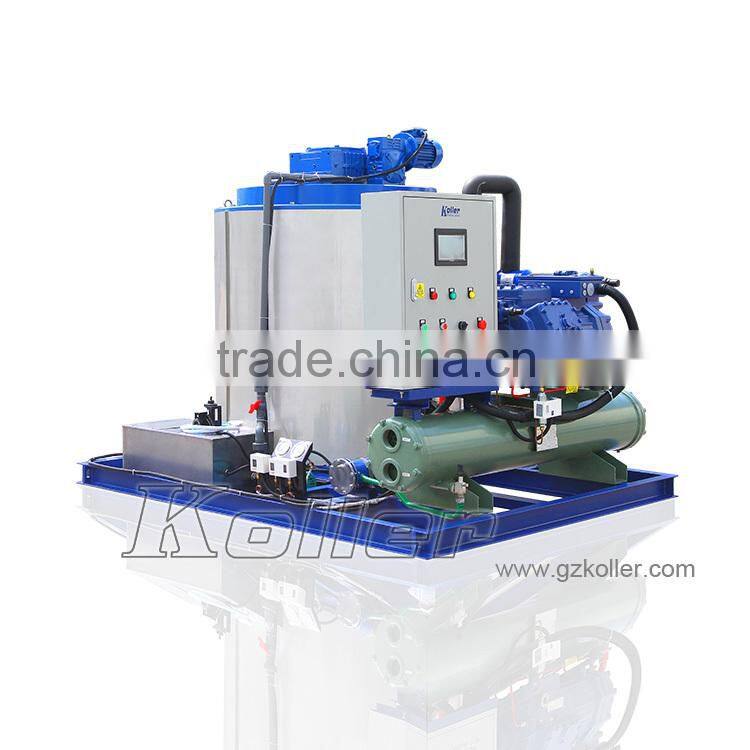

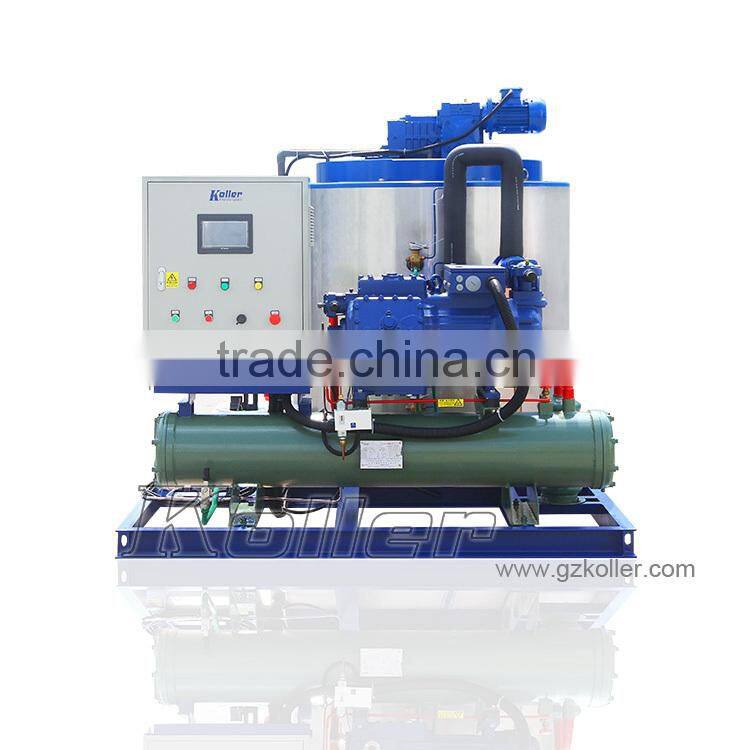

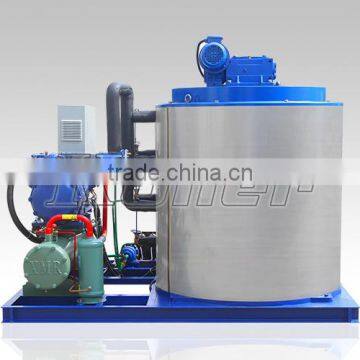

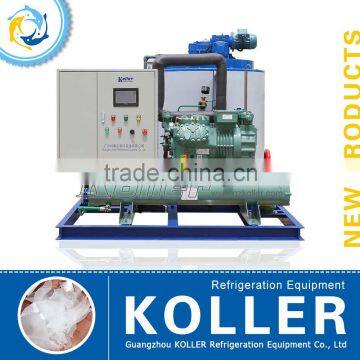

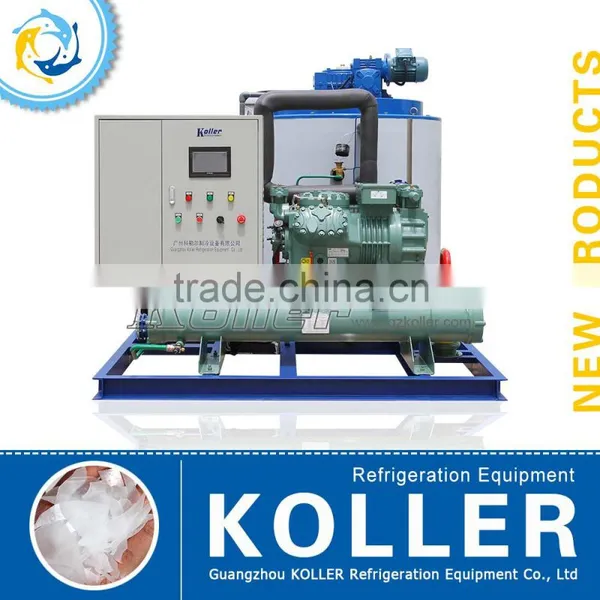

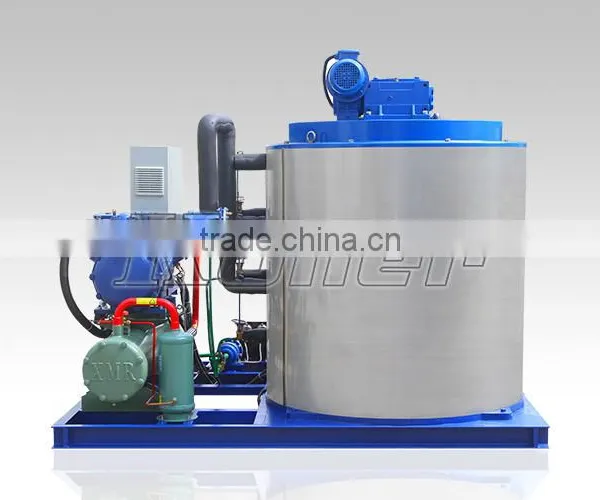

Koller 10 tons Flake Ice Machine with Energy Saving for Fish Processing KP100

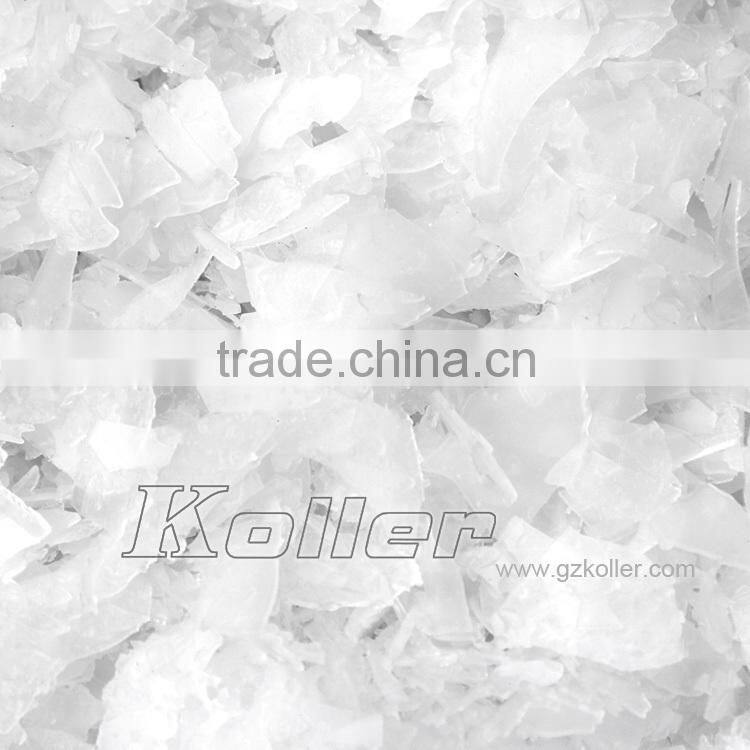

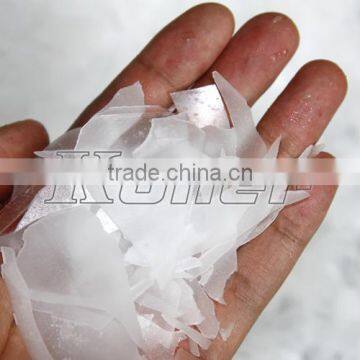

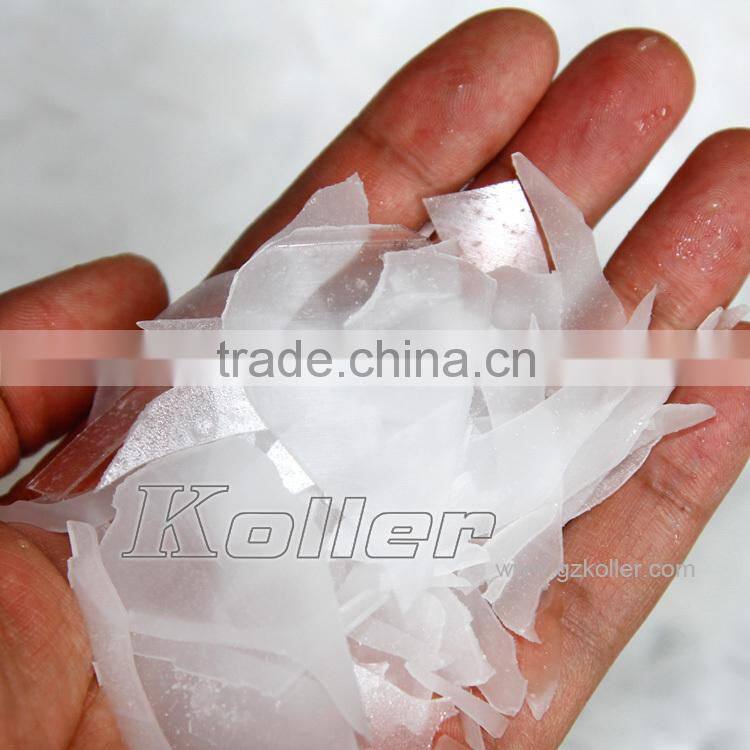

1.Flake ice

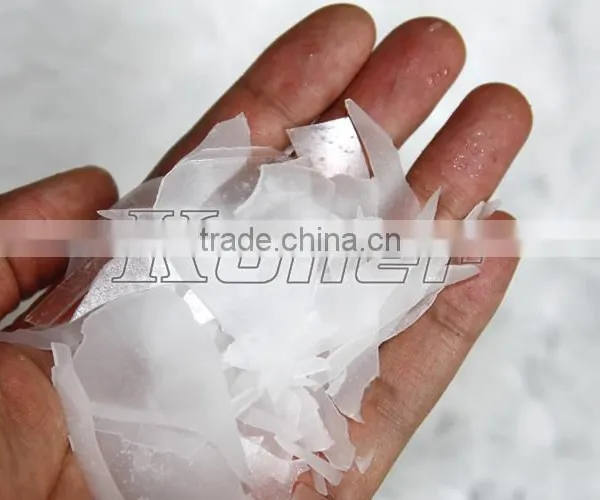

Flake Ice: Dry, pure, powder-less, not easy to block, its thickness is about 1.8mm~2.2mm, without edges or corners which will can product the cooling food, fish, seafood and other products.
2. Flake ice machine specification:
| Model | KP10 | KP20 | KP30 | KP50 | KP60 | KP100 | KP200 |
| Capacity(Tons/24Hours) | 1 | 2 | 3 | 5 | 6 | 10 | 20 |
| Refrigerant | R22/R404A | ||||||
| Compressor Power(KW) | 3 | 6 | 9 | 18.75 | 27 | 37.6 | 64.8 |
| Motor Power(KW) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Circulating Water Pump Power(KW) | 0.75 | 0.75 | 0.7 | 1.5 | 1.5 | 1.5 | 1.5 |
| Cooling Water Pump Power(KW) | 1.5 | 2.2 | 2.2 | 4 | 5.5 | 5.5 | 7.5 |
| Cooling Fan Power(KW) | 0.37 | 2.2 | 2.2 | 4 | 5.5 | 5.5 | 7.5 |
| Weight(KG) | 380 | 500 | 980 | 1300 | 1800 | 2200 | 3600 |
| Measurement(L*W*H)(MM) | 1200*740*780 | 1560*1200*880 | 1700*910*1200 | 2200*1050*1600 | 3300*1600*1800 | 3600*1600*2100 | 4100*2100*2800 |
| Cooling Way | Water/Air Cooling | Water/Air Cooling | Water/Air Cooling | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
| Water Supply Pipe Diameter(MM) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Standard Working Condition: Input Water Temp: 21°C; Condensing Temp: 25°C; Evaporating Temp: -20°C;
Supply Power: 380V~420V, 50Hz/60Hz, 3P; 220V~240V, 60Hz, 3P; 440v~480V, 60Hz, 3P;
Because the technology are developing rapidly, some of the above specifications can be changed without notice.
3. Product Description
- Greatly save energy, only 80-85KW*H are consumed to produce one-ton ice
- Equipped with Siemens PLC central program control, which allows multiple functions such as automatic machine start and shut down; Automatic water making up;
Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags;
-
Adopts the world's famous brand components, which will grantee the best refrigeration effect and working condition.
Item
Name of Components
Brand Name
Original Country
1
Compressor
BITZER/Bock
Germany/China
2
Ice Maker Evaporator Grid
KOLLER
China
3
Water cooled condenser
KOLLER
4
Refrigeration components
DANFOSS/CASTAL
Demark/Italy
5
PLC Program control
SIMENS
Germany
6
Electrical components
LG (LS)
South Korea
4.Working condition for ice block machine:
Max. Ambient Temp |
+40°C |
Max Relative Humidity |
85% |
Supply water temp |
21°C |
Power supply |
380V 50/60HZ 3P or 220V 60HZ 3P |
Refrigerant |
R22/R404a |
Compressor type |
Semi-hermetic piston |
Cooling system |
Water cooling condenser |
5. Installation:
1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by Koller engineers:
- (1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
- (2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared. Meanwhile, we will provide you a Tool List with the machine when delivery.
- (3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
- (4) 2~ 3 workers are required to assist the installation for big project.
- (5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.
- 12 months warranty after delivery
- Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
- Over 10 engineers available to service machinery overseas.
- Free spare parts replacement within warranty period.
- Beyond guarantee period, we will charge market price for spare parts.
- So far, we have exported ice machines to 150 countries in the world.
- Excellent Brand of Chinese Ice Machine Industry.
- The Drafting Committee of National Ice Machine Industry Standard.
- Produce & Academic Research Strategy Cooperating Partner with Tsinghua University.
- Independent after-sales department, 8 engineers are ready to service abroad.
