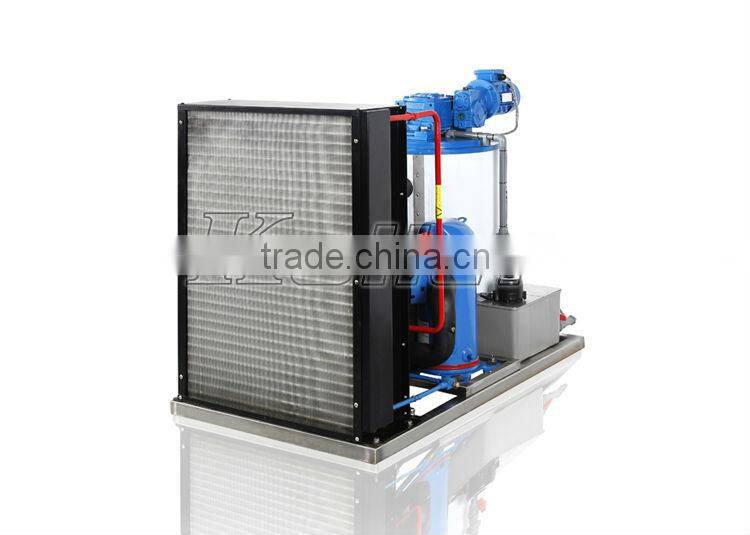

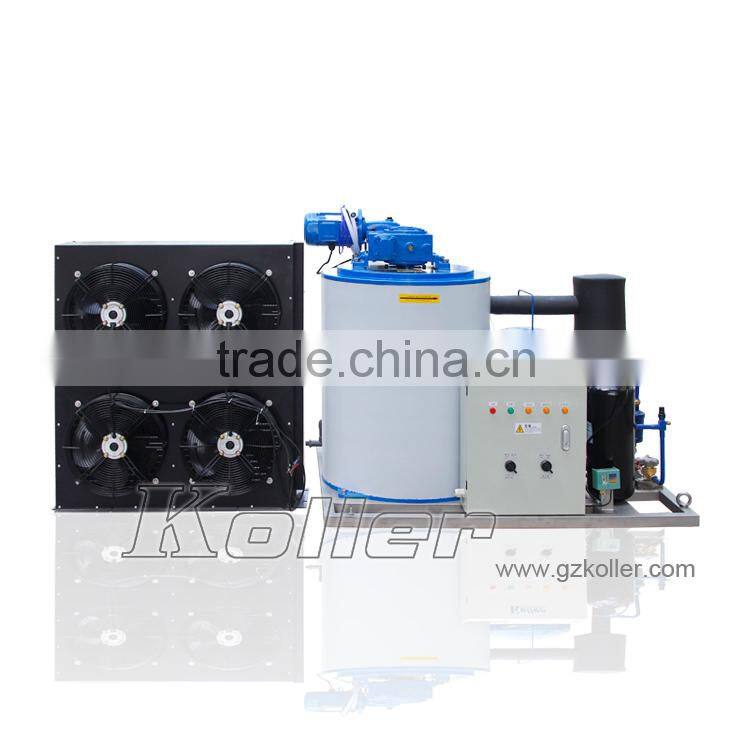

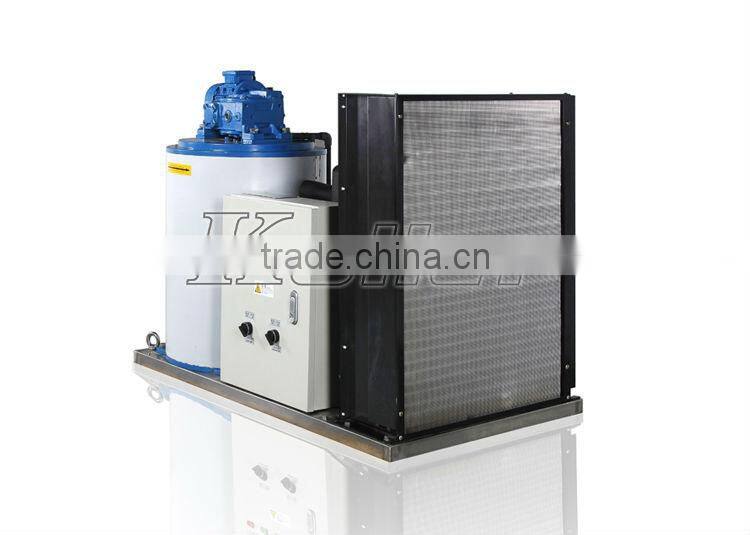

2 Tons Stable Capacity Flake Ice Machine for Sale
- 50 Set / Sets per Month
- Guangzhou Port
- T/T D/P D/A Credit Card PayPal
-
New York slide valve displacement sensor 534D1251H01, maintenance of lubrication system malfunction for turbine compressor
-
New shaft seal 534M0163G02, York TDSH193 compressor disassembly and maintenance parts
-
200kg Dry ice pellets making machine for dry ice production
-
New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
-
New slide valve potentiometer coupling 111Q0451313
-
New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
Product Details
Condition: | New | Capacity: | 2000kg per day | Place of Origin: | Guangdong, China |
Brand Name: | Koller | Model Number: | KP20 | Ice Shape: | Other, flake ice, flake ice |
Voltage: | 380V, 50Hz, 3P or 220V-240V, 60Hz, 3P | Power(W): | 380V,50HZ,3P/220V,60HZ,3P | Dimension(L*W*H): | 1560mmx1200mmx820mm |
Weight: | 800kg | Certification: | CE | Warranty: | one year after delivery |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Flake Ice Machine KP20
Koller Flake Ice Machine Features:

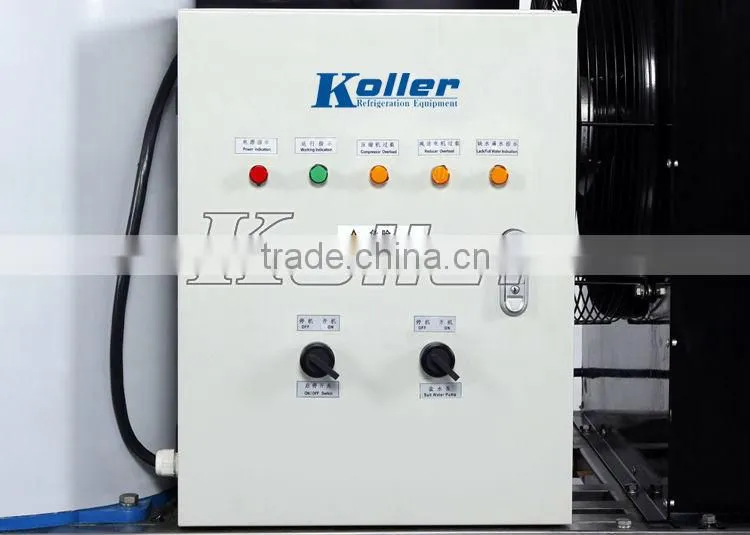

1. Automatic monitoring system: Intelligentized PLC control, don’t need to arrange people to monitor the machine
2. Emergency Alarm: It makes you know immediately once the emergency happens
3. Cable Channel: All the wires packed in stainless steel channel, protects the wire, also makes the machine look neat and tidy
4. Energy Guide: You can see clearly the energy consumption of the machine

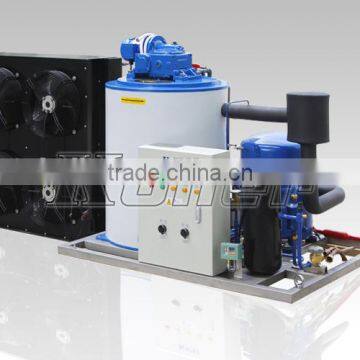

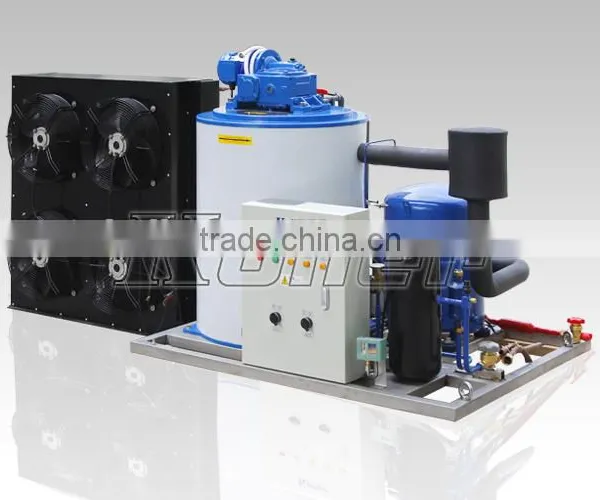

2tons flake ice machine with ice storage bin

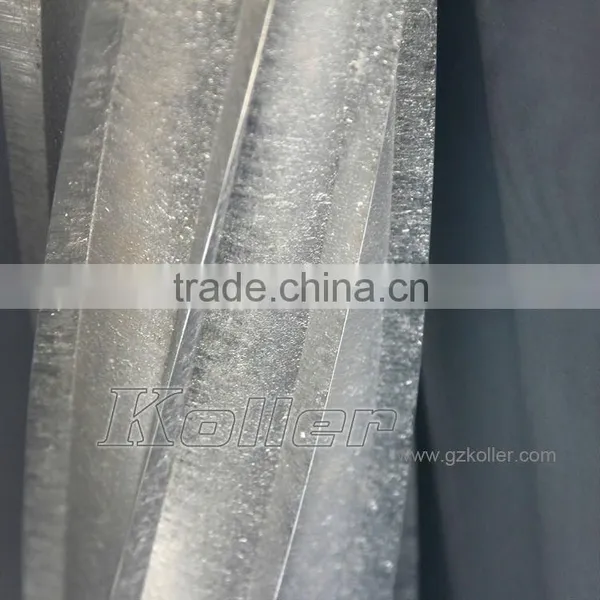

Flake Ice: Flake ice is dry, pure, powder-less, not easy to melt and its temperature can reach -5 degrees. Its thickness is about 1.8mm-2mm, without edges or corners which can produce the cooling food, fish, seafood and other products

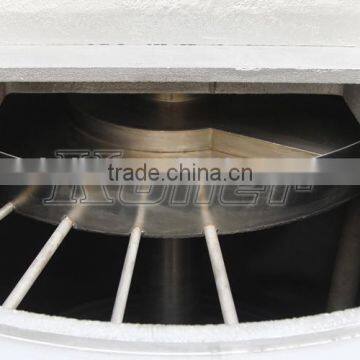

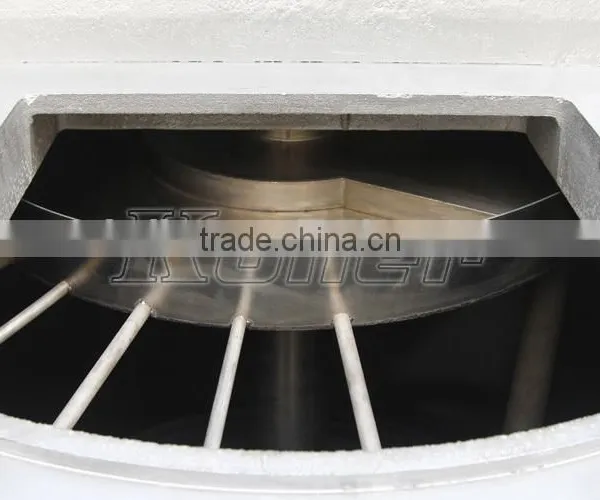

Evaporator Drum: Use stainless steel 304 or carbon steel chrominum. The scartch-style system of inside machine ensures constant running at the lowest power comsumption, exquisite welding and processing technology ensure high-efficent heat transfer and energy saving.
Technical Parameters:
Model | KP10 | KP20 | KP30 | KP50 | KP80 | KP100 | KP200 |
Capacity (tons/24 hours) | 1 | 2 | 3 | 5 | 8 | 10 | 20 |
Refrigrant | R22/R404a | ||||||
Compressor Power (KW) | 3 | 6 | 9 | 18.75 | 27 | 37.6 | 64.8 |

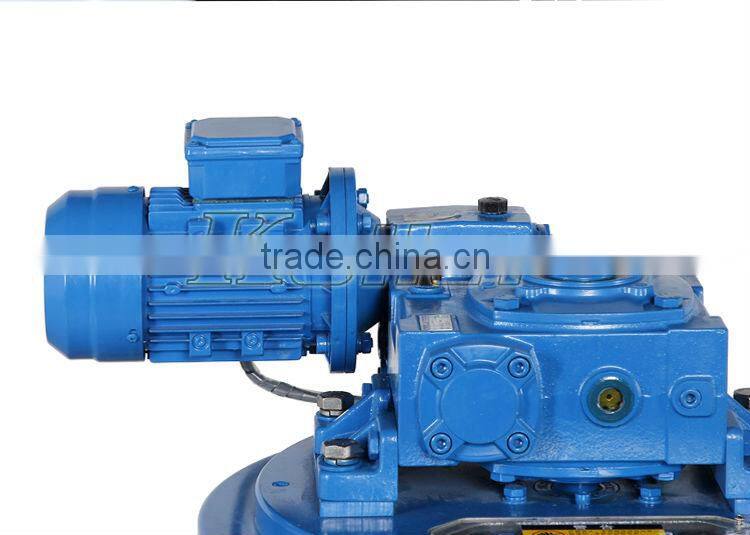

Motor power(KW) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
Circulating Water pump power (KW) | 0.75 | 0.75 | 0.7 | 1.5 | 1.5 | 1.5 | 1.5 |
Cooling Water pump power (KW) | 1.5 | 2.2 | 2.2 | 4 | 5.5 | 5.5 | 7.5 |
Cooling fan power | 0.37 | 0.55 | 0.75 | 1.5 | 2.2 | 2.2 | 2.2 |
wate supply pipe diameter (mm) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Weight (kg) | 380 | 500 | 980 | 1300 | 1800 | 2200 | 3600 |
Length (mm) | 1200 | 1560 | 1700 | 2200 | 3300 | 3600 | 4100 |
Width (mm) | 740 | 1200 | 910 | 1050 | 1600 | 1600 | 2100 |
Height (mm) | 780 | 880 | 1200 | 1600 | 1800 | 2100 | 2800 |
Application: Freshwater Flake ice makers for Fishery, seafood processing.
Warranty: 12 months after the delivery; During the warranty periods, if there is any malfuction, we would try our best to solve the problem at our fastest speed. If some spare parts are needed to be replaced without artificial damage, then we would provide the spare parts free of charge. We also provide the life long technical support.
Delivery Time: 30 days aftre getting the deposit.
