Help CenterElectric Winch
US$ 130 - 180
MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
weknown
Model Number:
P5000
Power Source:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
weknown
Model Number
P5000
Power Source
Electric
Application
Auto
Capacity
5000LBS

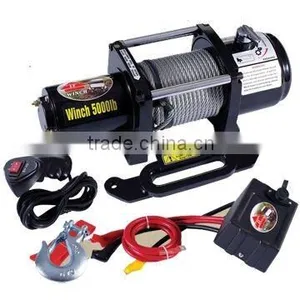

electric winch

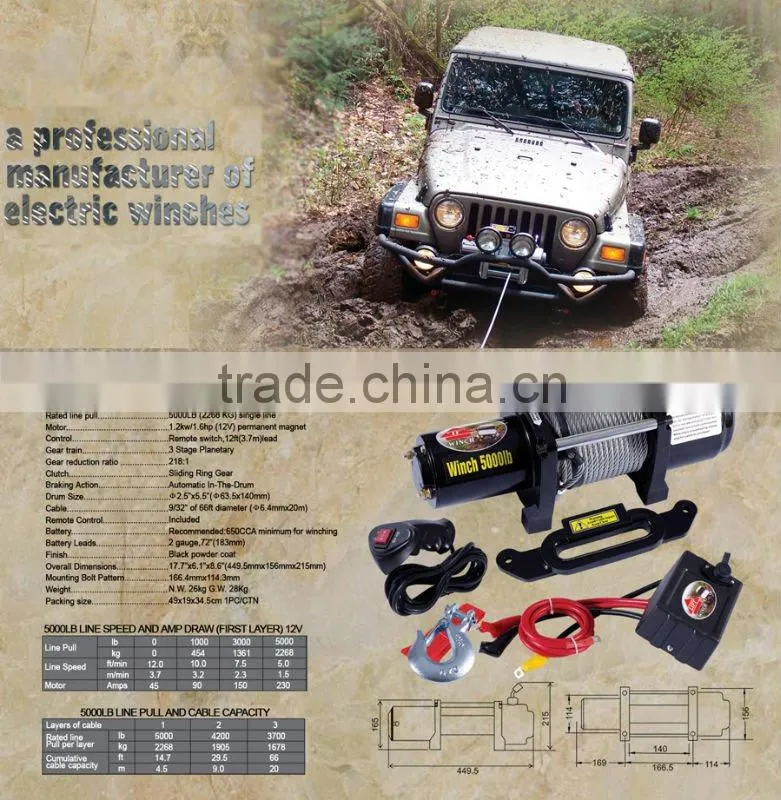

5000 LBS FEATURES AND SPECIFICATIONS winch
| Rated Line Pull | 5000LBS (2268kgs) single line |
| Motor | 1.2kw/1.6hp (12V) pemanent magnet |
| Control | Remote switch, 12ft(3.7m)lead |
| Gear train | 3 Stage Planetary |
| Gear train ratio | 218:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Automatic In-The-Drum |
| Drum Size | Φ2.5"×5.5" (Φ63.5×140m) |
| Cable | 9/32" of 66ft diameter (Φ6.4mm×20m) |
| Remote Control | Included |
| Battery | Recommended:650CCA minimum for winching |
| Battery Leads | 2 gauge,72"(183mm) |
| Finish | Black powder coat |
| Overall Dimensions | 17.9"×6.1"×8.6"(456mm×156mm×215mm) |
| Mounting Bolt Pattern | 166.4mm×114.3mm |
| Weight | N.W.26kgs G.W.28Kgs |
| Packing Size | 49×19×34.5cm 1PC/CTN |
5000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 12V
| Line Pull | lbs |
0 |
1000 |
3000 |
5000 |
kg |
0 |
454 |
1361 |
2268 |
|
| Line Speed | ft/min |
12.0 |
10.0 |
7.5 |
5.0 |
m/min |
3.7 |
3.2 |
2.3 |
1.5 |
|
| Motor | Amps |
4.5 |
90 |
150 |
230 |
5000LBS LINE PULL AND CABLE CAPACITY
| Layers of cable | 1 | 2 | 3 | |
| Rated line pull per layer | lbs | 5000 | 4200 | 3700 |
| kg | 2268 | 1905 | 1678 | |
| Cumulative cable capacity | ft | 14.7 | 29.5 | 66 |
| m | 4.5 | 9.0 | 20 | |
