air cannon1. high temperature, self-lubricating
2. Low maintenance, long life
3. strong spray drying.
1. Used

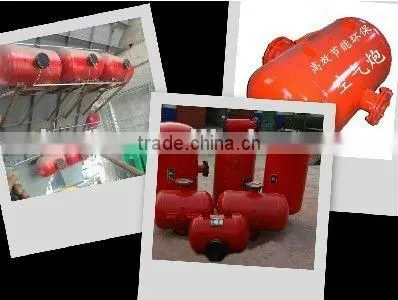

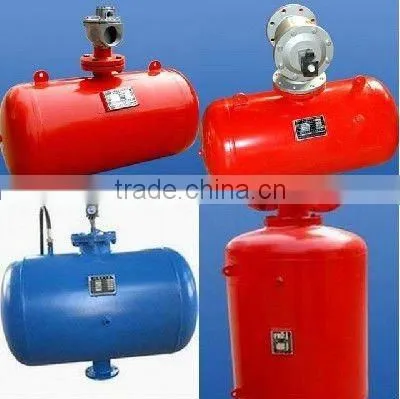

GKQPB newfashioned air cannon is a new generation of newfashioned high temperature and high momentum air
cannon. It's developed by our company with foreign advanced technology. Provide a more efficient clearing blocking
solution for the high temperature silos' problems.
2. Characteristics
1.) High temperature: body of air cannon valve internal moving parts and no rubber seals. Particularly suitable for grate
cooler, kiln slope, smoke room and high temperature operating requirements, substantially reducing maintenance
costs, significantly extended service lift. Body moving parts(piston) inelastic body.
2.) Self-lubricating: unique design cylinder and piston bearings without lubrication.
3. ) Low maintenance: 25 million times without failure, removal of the replacement parts is very convenient.
4. ) Long life: key components used to optimize the design of modern design, good air tightness.
5. ) Strong spray drying: spray dry strength increased by 10% compared with similar products.
6. ) Easily compatible: dual connection method, the body of air cannon valve with other brands of air cannons gas
cylinders connected to reduce the cost of the user to upgrade.
3. Specification
|
Model |
Capacity(L) |
Dia. mm |
Exhaust Dia. mm |
Slinger hole. mm |
air intake (") |
Safe valve seat(") |
Working Temperature(°C ) |
working Pressure (Mpa) |
Inpact force (N) |
Explosion energy (J) |
Weight(Kg) |
GKQP-75 |
75 |
410 |
89 |
16 |
G1/2 |
ZG3/8 |
-40-1200 |
0.4-0.8 |
4500-10000 |
123600 |
50 |
GKQP-100 |
100 |
410 |
89 |
16 |
G1/2 |
ZG3/8 |
-40-1200 |
0.4-0.8 |
4500-10000 |
129000 |
60 |
GKQP-150 |
150 |
510 |
108 |
16 |
G1/2 |
ZG3/8 |
-40-1200 |
0.4-0.8 |
4500-10000 |
221000 |
70 |
GKQP-170 |
170 |
510 |
108 |
16 |
G1/2 |
ZG3/8 |
-40-1200 |
0.4-0.8 |
4500-10000 |
251000 |
75 |
GKQP-200 |
200 |
510 |
108 |
16 |
G1/2 |
ZG3/8 |
-40-1200 |
0.4-0.8 |
4500-10000 |
271000 |
85 |
GKQP-300 |
300 |
510 |
108 |
16 |
G1/2 |
ZG3/8 |
-40-1200 |
0.4-0.8 |
4500-10000 |
321000 |
110 |
