Vertical Ceramic Pump Filling Machine

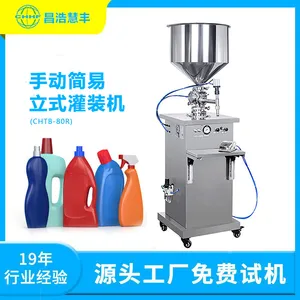

Vertical Ceramic Pump Filling Machine photo-1

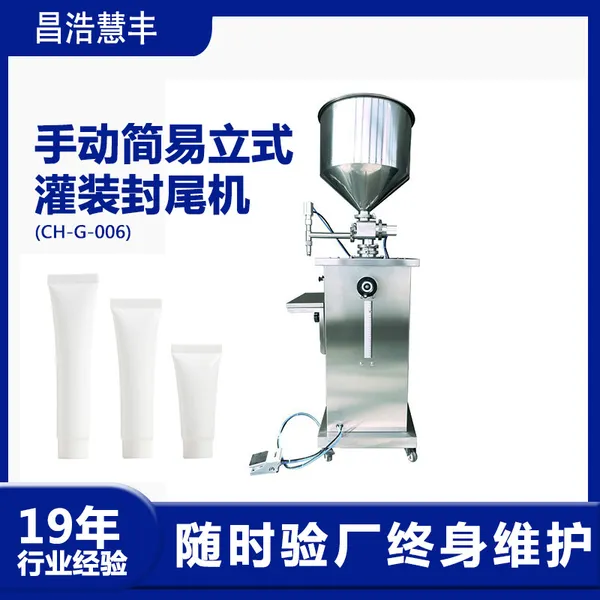

Vertical Ceramic Pump Filling Machine photo-2
Vertical Ceramic Pump Filling Machine photo-3
Vertical Ceramic Pump Filling Machine photo-4

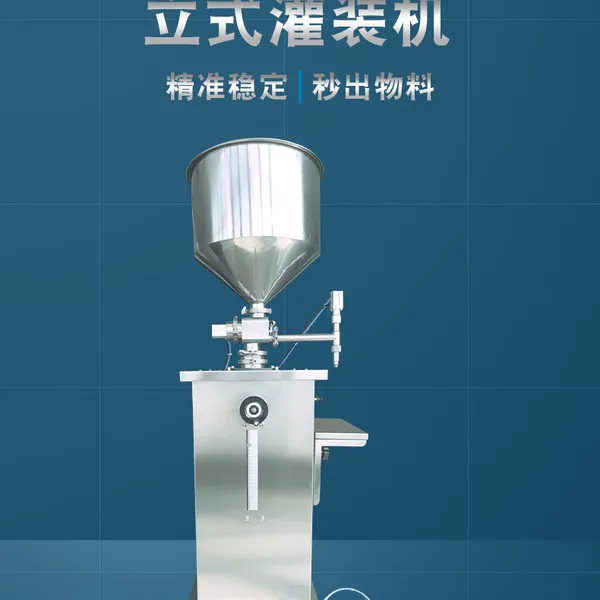

Vertical Ceramic Pump Filling Machine photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
chang hao hui feng
Place of Origin:
China
Model Number:
CH-QTBG
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name chang hao hui feng
Place of Origin China
Model Number CH-QTBG
After-sales Service Provided Overseas service center available
Dimension(L*W*H) L:425mm*W:360mm*H:1055mm
Voltage AC220V/110VIPH50/60HZ
Application Other, Chemical, Medical, cosmetics
Automatic Grade Semi-Automatic
Driven Type Electric

Precision ceramic rotary valve and ceramic plunger design, suitable for medium and high viscosity liquid, paste need homogeneity (1000-100,000CPS) and quantitative perfusion of materials containing certain particles;

The micrometer capacity adjustment device makes the pump have high measuring accuracy and repeated consistency, the accuracy is better than ±0.5%;

The metal part of the contact material is made of 316L stainless steel, which has better corrosion resistance;

Pump body full quick disassembly connection, convenient disassembly and cleaning, in line with the cleaning requirements of food hygiene standards;

With its own hopper, quick replacement of filling head, to meet different specifications of the variety;

Especially suitable for water needle, gel and other needle products filling.

It is mainly used for liquid filling with medium and high viscosity.

Widely used in pharmaceutical, pharmaceutical, food, chemical, cosmetics and other industries.
