Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > EYH Series 2D Motion Mixer

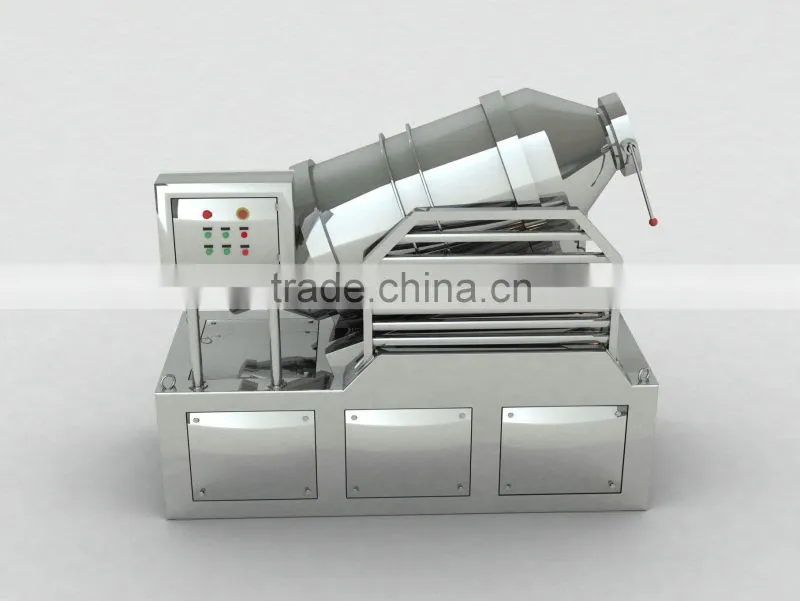

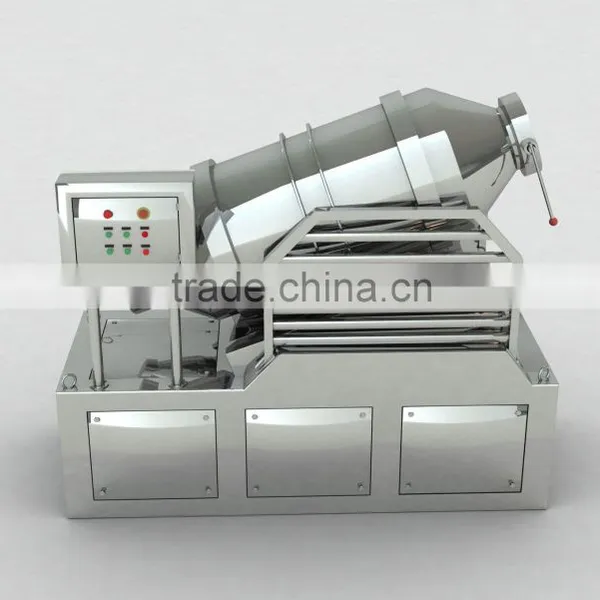

EYH Series 2D Motion Mixer

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Mixer Type:

Other, Move Mixer

Product Type:

Other, Medicine

Contact Supplier Request Quote Chat Now

Shanghai Pharmaceutical Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Mixer Type Other, Move Mixer

Product Type Other, Medicine

Application Powder

Additional Capabilities Other, Without dead angle

Place of Origin Shanghai, China

Brand Name SPM

Model Number EYH

Max. Loading Capacity 25-10000L

Voltage 380V/220V

Power(W) 0.55-22KW

Dimension(L*W*H) According to the machine size

Certification ISO

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

GMP Standard
PLC Control
Easy for Operation

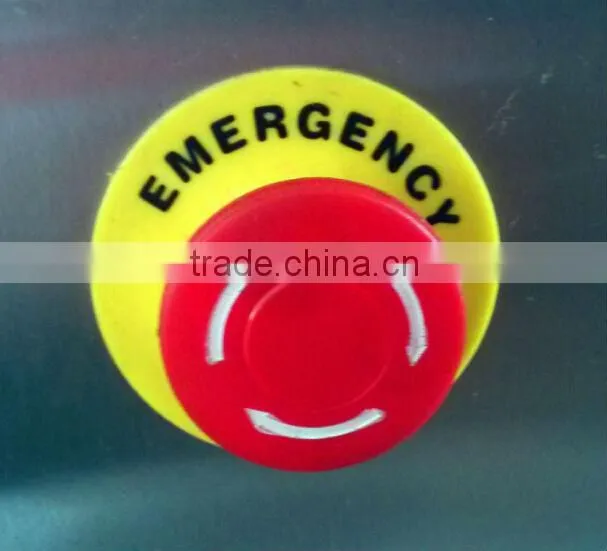

Emergency Stopping Function
Highly Cost Effective

We can supply a complete set according to the users' requirments

Product Description

Main Application :

The mixer is suitable for the mixing of dry granule materials for pharmaceutical, chemical industries, etc., especially for the mixing of materials with high tonnage.

Working principle :

The mixing tank is a cylinder-shape barrel without any stirring device inside, which makes the self-rotation around its axis and also produces turnover swing movement around its plane axis synchronized, therefore, the target materials inside the barrel could be mixed diffusely and moveable, it is featured with short mixing time, good uniformity, big output, convenient to discharge, etc..

Technical Parameters :

Model	Barrel volume	Max loading volume	Max loading weigh	Mixing time	No.of rotation	No.of swing	rotation Motor power	swing Motor power	Overall dimension	Weight
EYH-50	50L	25L	25kg	0-99min	20r/min	11.5r/min	0.55kw	0.75kw	900730950mm	115kg
EYH-100	100L	50L	50kg	0-99min	20r/min	11.5r/min	0.75kw	1.1kw	13658101150mm	190kg
EYH-150	150L	75L	75kg	0-99min	20r/min	11.5r/min	1.1kw	1.1kw	16509501250mm	210kg
EYH-200	200L	100L	100kg	0-99min	20r/min	7.5r/min	1.1kw	1.1kw	185010001340mm	285kg
EYH-300	300L	150L	150kg	0-99min	17r/min	7.5r/min	1.1kw	1.1kw	180010501450mm	340kg
EYH-400	400L	200L	200kg	0-99min	15r/min	7.5r/min	1.1kw	1.1kw	195011401550mm	545kg
EYH-600	600L	300L	300kg	0-99min	15r/min	7.5r/min	1.1kw	1.5kw	199013001650mm	1150kg
EYH-800	800L	400L	400kg	0-99min	12r/min	7.5r/min	1.5kw	1.5kw	210013501710mm	1600kg
EYH-1000	1000L	500L	500kg	0-99min	12r/min	7.5r/min	1.5kw	2.2kw	250015001850mm	1700kg
EYH-1500	1500L	750L	750kg	0-99min	10r/min	7.5r/min	3kw	4kw	263016702050mm	2000kg
EYH-2000	2000L	1000L	1000kg	0-99min	8r/min	5r/min	4kw	4kw	284017802170mm	2600kg
EYH-3000	3000L	1500L	1500kg	0-99min	6r/min	5r/min	5.5kw	5.5kw	320021002550mm	3500kg
EYH-4000	4000L	2000L	2000kg	0-99min	5r/min	3.7r/min	7.5kw	11kw	367025602980mm	4100kg
EYH-6000	6000L	3000L	3000kg	0-99min	5r/min	3.7r/min	7.5kw	11kw	450039003500mm	6100kg
EYH-8000	8000L	4000L	4000kg	0-99min	4r/min	3.7r/min	11kw	15kw	500033004000mm	7900kg
EYH-10000	10000L	5000L	5000kg	0-99min	3r/min	3.7r/min	11kw	18.5kw	530038004400mm	9500kg

Quality Assurance

Packaging & Shipping

Our Services

Customer Service

Our excellent customer service also includes the installation of our machines. To ensure smooth

performance, we also provide a one year warranty, and a spare set of wearing parts to our customers.

If any difficulty occurs, we will supply free spare parts and even on-site service, upon request.

Please contact us to help you with your particular spare parts of pharmaceutical equipment.
