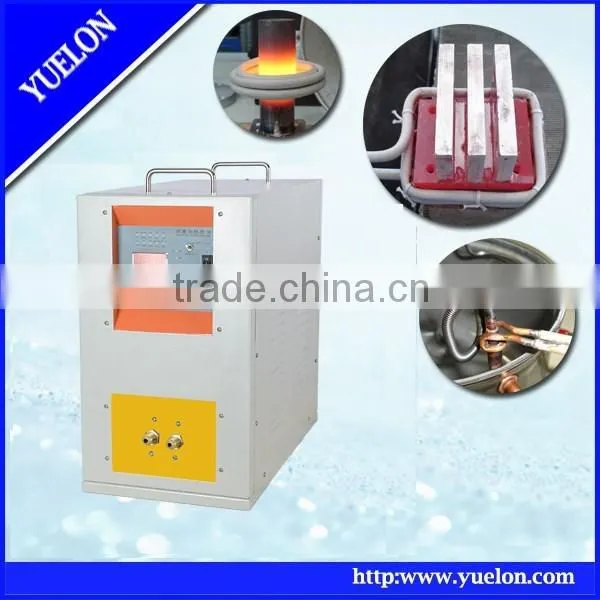

Ultrahigh Frequency Induction Heating Machine 6KW, 500-1100KHz

Name: Ultrahigh Frequency Induction Heating Machine 6KW, 500-1100KHz
Brand: YUELON
SKU: 130284645
Availability: InStock

US$ 7,000 - 9,500 MOQ: 1 Unit

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

YUELON

Model Number:

UF-06-III

Yongkang Yuelon Electronic Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name YUELON

Model Number UF-06-III

After-sales Service Provided No overseas service provided

UF-06A/AB-III

Main specifications:

Maximum input power: 6.6KW

Oscillating frequency: 500-1100KHz

Maximum input current: 30A

Input voltage: 220VAC single phases, 50 or 60Hz

Duty cycle: 100%

Cooling water: ≥0.2Mpa 2-5L/min

Auto heating time: 0.1-99.9seconds

Auto retaining time: 0.1-99.9seconds

Auto cooling time: 0.1-99.9seconds

Weight and dimension:

Main characteristics:

With high frequency up to 1100KHZ the quenching thickness can be controlled lower than 1mm, and very thin and tiny parts can be easily heated.
IGBT and current inverting technologies have been used; higher reliability and lower maintenace cost.
100% duty cycle, continuous working is allowed at maximum power output.
Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;
Display of heating power and heating current and oscillating frequency.
Simple to install , installation can be done by unprofessional person very easily;
Light weight, small size;

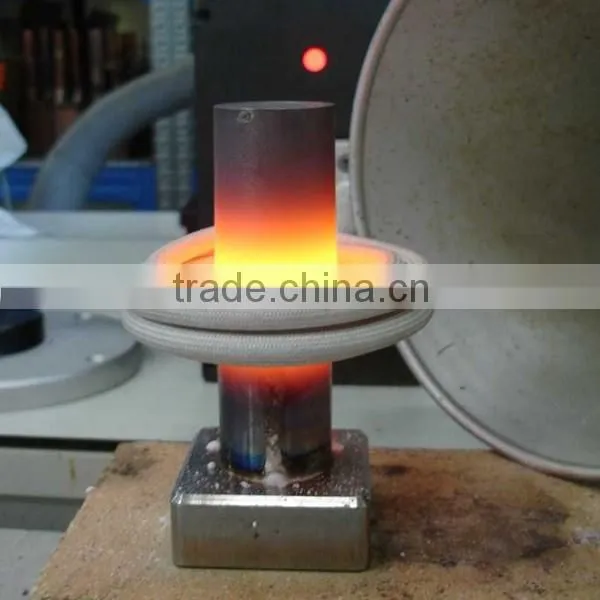

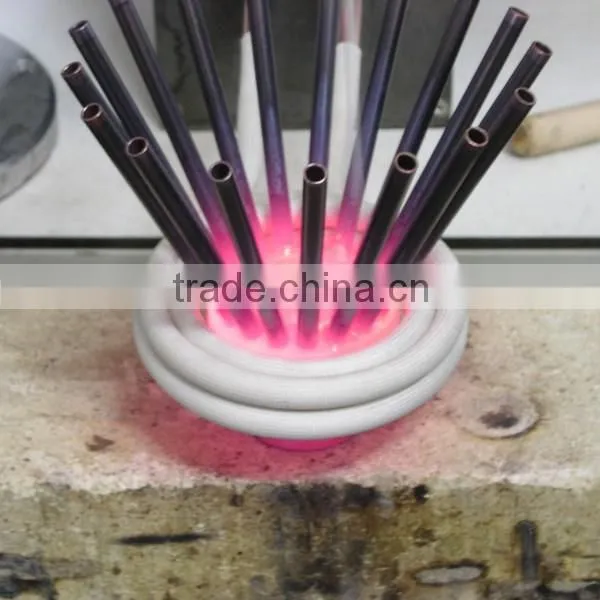

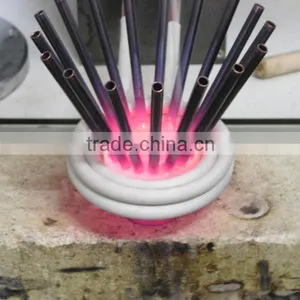

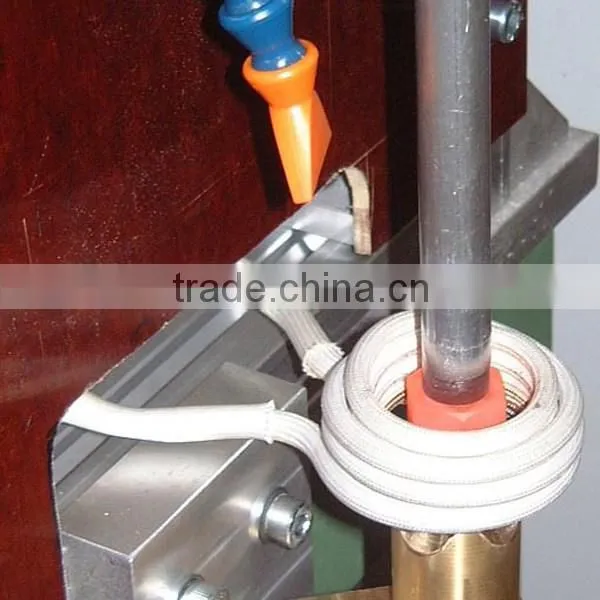

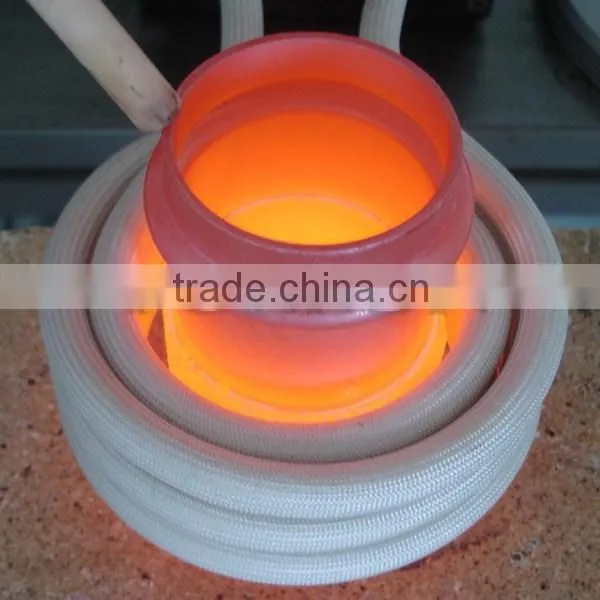

different shape and size of induction coil can be changed easily to heat different parts.
Advantages of the model with timer: the power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability.

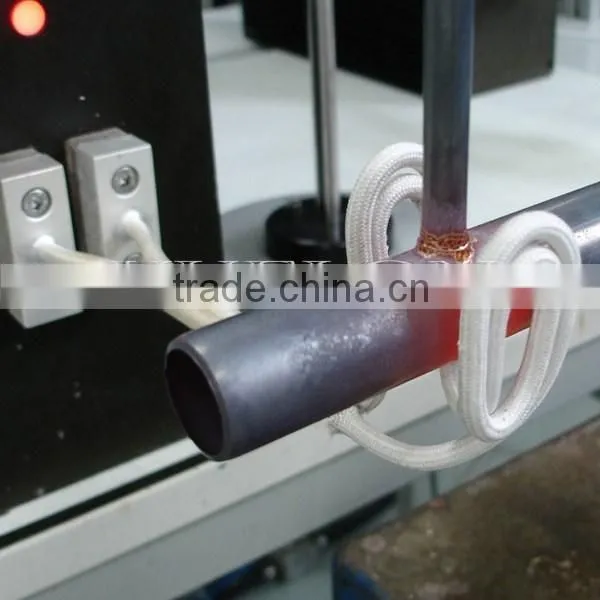

the separated small heating head is especially suitable for the applications in which the parts are stationary and the heating head is moved to fit the place.

Main applications:

etc.

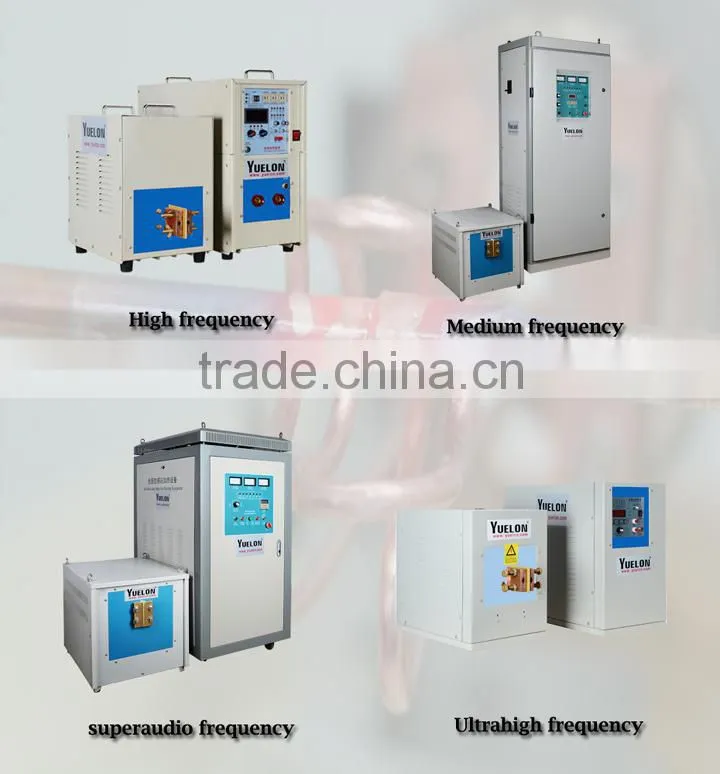

Main model and specifications:

Model	SF-30AB	SF-40AB	SF-50AB	SF-60AB	SF-80AB	SF-100AB
Max output power	30KW	40KW	50KW	60KW	80KW	100KW
frequency	10-40KHz	10-40KHz	10-40KHz	10-40KHz	10-40KHz	10-40KHz
Max input current	48A	80A	90A	110A	160A	200A
Working voltage	342-430V
Input voltage	380VAC 3phases, 50 or 60Hz
Duty cycle	100%
Water flow	27L/min (0.1Mpa)	32L/min (0.1Mpa)	32L/min (0.1Mpa)	40L/min (0.1Mpa)	50L/min (0.1Mpa)	50L/min (0.1Mpa)
Generator weight	61KG	73KG	75KG	80KG	106KG	121KG
Transformer weight	31KG	37KG	41KG	46KG	68KG	91KG
Generator size(mm)	510x380x810	810x465x895	810x465x895	810x465x895	770x510x1100	770x510x1100
Transformer Size(mm)	320x320x330	470x415x445	470x415x445	470x415x445	480x410x410	560x440x530

Model	SF-120AB	SF-160AB	SF-200AB	SF-250AB	SF-300AB	SF-350AB
Max output power	120KW	160KW	200KW	250KW	300KW	350KW
frequency	10-40KHz	8-30KHz	8-30KHz	8-30KHz	8-30KHz	8-30KHz
Max input current	240A	280A	320A	380A	460A	540A
Working voltage	342-430V
Input voltage	380VAC 3phases, 50 or 60Hz
Duty cycle	100%
Water flow	68L/min (0.1Mpa)	68L/min (0.1Mpa)	80L/min (0.1Mpa)	80L/min (0.1Mpa)	100L/min (0.1Mpa)	100L/min (0.1Mpa)
Generator weight	138KG	151KG	172KG	180KG	185KG	192KG
Transformer weight	95KG	121KG	125KG	131KG	136KG	141KG
Generator size(mm)	930x550x1190	930x550x1190	603x852x1850	603x852x1850	603x852x1850	603x852x1850
Transformer Size(mm)	560x440x530	630x470x550	841x546x580	841x546x580	841x546x580	841x546x580
