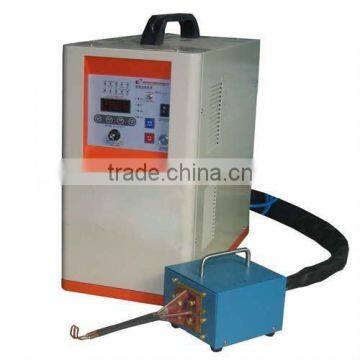

Ultrahigh Frequency Induction Heating Machine 6kw,500-1100KHz

Name: Ultrahigh Frequency Induction Heating Machine 6kw,500-1100KHz
Brand: YUELON
SKU: 130284735
Availability: InStock

US$ 5,500 - 9,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

YUELON

Model Number:

UF-06AB-III

Yongkang Yuelon Electronic Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name YUELON

Model Number UF-06AB-III

Voltage 220V

Current 30A

Rated Duty Cycle 100%

Dimensions 580x260x500mm

Weight 25KG

Usage induction brazing, induction welding

UF-06A/AB-III

Main specifications:

Maximum input power: 6.6KW

Oscillating frequency: 500-1100KHz

Maximum input current: 30A

Input voltage: 220VAC single phases, 50 or 60Hz

Duty cycle: 100%

Cooling water: ≥0.2Mpa 2-5L/min

Auto heating time: 0.1-99.9seconds

Auto retaining time: 0.1-99.9seconds

Auto cooling time: 0.1-99.9seconds

Weight and dimension:

Main characteristics:

With high frequency up to 1100KHZ the quenching thickness can be controlled lower than 1mm, and very thin and tiny parts can be easily heated.
IGBT and current inverting technologies have been used; higher reliability and lower maintenace cost.
100% duty cycle, continuous working is allowed at maximum power output.
Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;
Display of heating power and heating current and oscillating frequency.
Simple to install , installation can be done by unprofessional person very easily;
Light weight, small size;
different shape and size of induction coil can be changed easily to heat different parts.
Advantages of the model with timer: the power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability.
the separated small heating head is especially suitable for the applications in which the parts are stationary and the heating head is moved to fit the place.
