Help CenterUltrahigh Frequency Induction Heating Machine 6KW, 200-700KHz
Related Products
-
Ultrahigh Frequency Induction Heating Machine 6kwUS$ 5,000 - 7,500MOQ: 1 Unit -
Ultrahigh Frequency Induction Heating Machine 3kwUS$ 5,000 - 7,500MOQ: 1 Unit
-
Ultrahigh Frequency Induction Heating Machine 100kwUS$ 17,000 - 22,000MOQ: 1 Set
-
Ultrahigh Frequency Induction Heating Machine 6kw,500-1100KHzUS$ 5,500 - 9,000MOQ: 1 Unit
-
Ultrahigh Frequency Induction Heating Machine 6kw,200-500KHzUS$ 4,800 - 7,800MOQ: 1 Unit
UF-06A/AB-II
Main specifications:
Maximum input power: 6.6KW
Oscillating frequency: 200-700KHz
Maximum input current: 30A
Input voltage: 220VAC single phases, 50 or 60Hz
Duty cycle: 100%
Cooling water: ≥0.2Mpa 2-5L/min
Auto heating time: 0.1-99.9seconds
Auto retaining time: 0.1-99.9seconds
Auto cooling time: 0.1-99.9seconds
Weight and dimension:
Model |
Net weight(KG) |
Size: L x W x H (mm) |
Packing weight |
Pacing size: L x W x H (mm) |
UF-06A-II |
25KG |
580x260x500mm |
42KG |
680x360x600mm |
UF-06AB-II generator |
18KG |
520x240x500mm |
40KG |
620x480x600mm |
UF-06AB-II heating head |
4KG |
140x93x140mm |
Main models and specifications:
Models |
Maximum input power |
Oscillating frequency |
Maximum input current |
Input voltage |
Duty cycle |
UF-04A |
4KW |
100-250KHZ |
15A |
Single phase 220V |
80% |
UF-03AB |
3KW |
0.5-1.1MHZ |
14A |
Single phase 220V |
80% |
UF-06A-I |
6.6KW |
200-500KHZ |
27A |
Single phase 220V |
80% |
UF-06A-II |
200-700KHZ |
||||
UF-06A-III |
0.5-1.1MHZ |
||||
UF-10A-I |
10KW |
50-300KHZ |
15A |
3phase 380V |
100% |
UF-10A-II |
10KW |
200-500KHZ |
15A |
Single phase 220V |
80% |
UF-20AB |
20KW |
50-250KHZ |
30A |
3phase 380V |
100% |
UF-30AB |
30KW |
50-200KHZ |
45A |
3phase 380V |
100% |
UF-40AB |
40KW |
50-200KHZ |
60A |
3phase 80V |
100% |
UF-60AB |
60KW |
30-150KHZ |
90A |
3phase 380V |
100% |
UF-100AB |
100KW |
30-150KHZ |
150A |
3phase 380V |
100% |
UF-160AB |
160KW |
30-120KHZ |
240A |
3phase 380V |
100% |
Main characteristics:
- With high frequency up to 700KHZ the quenching thickness can be controlled lower than 1mm, and very thin and tiny parts can be easily heated.
- IGBT and current inverting technologies have been used; higher reliability and lower maintenace cost.
- 100% duty cycle, continuous working is allowed at maximum power output.
- Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;
- Display of heating power and heating current and oscillating frequency.
- Simple to install , installation can be done by unprofessional person very easily;
- Light weight, small size;
- different shape and size of induction coil can be changed easily to heat different parts.
- Advantages of the model with timer: the power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability.
- the separated small heating head is especially suitable for the applications in which the parts are stationary and the heating head is moved to fit the place.

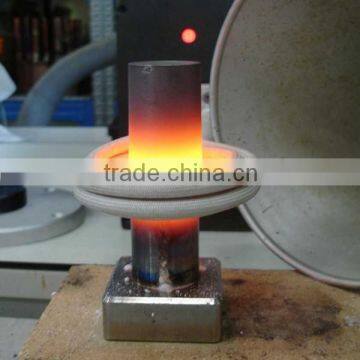

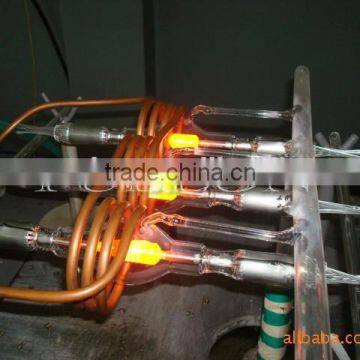

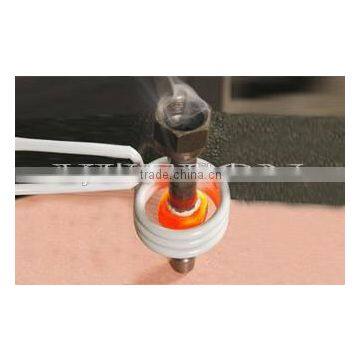

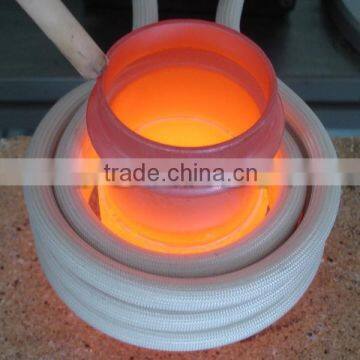

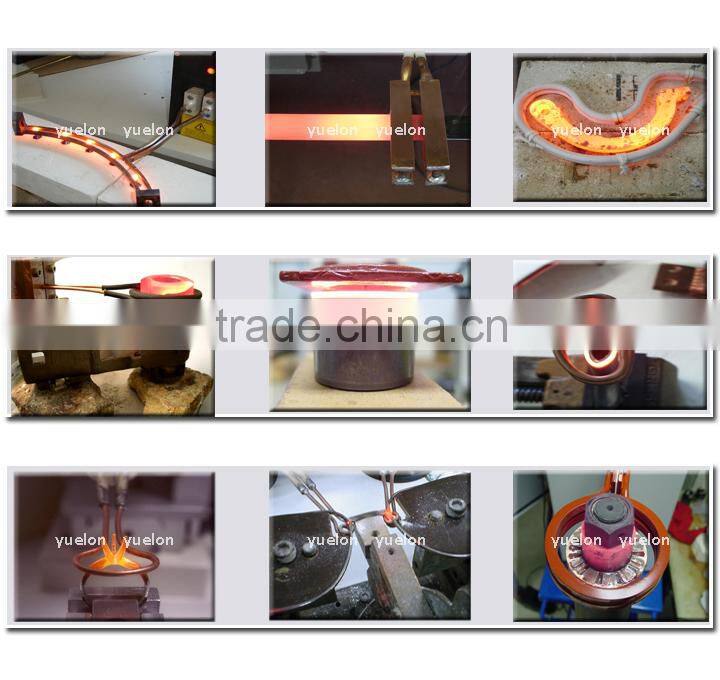

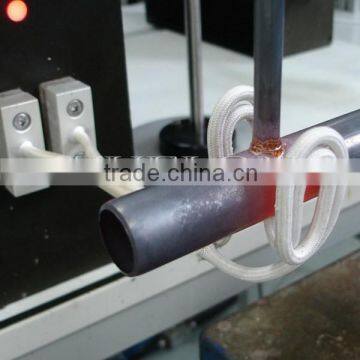

Main applications:
- brazing of diamond tool blades and machining tools.
- heat treatment of small parts
- Quenching of the saw tip
- Shaping of the small driller
etc.
...
