Help CenterVICTOR 86D,digital Multimeter
Related Products
-

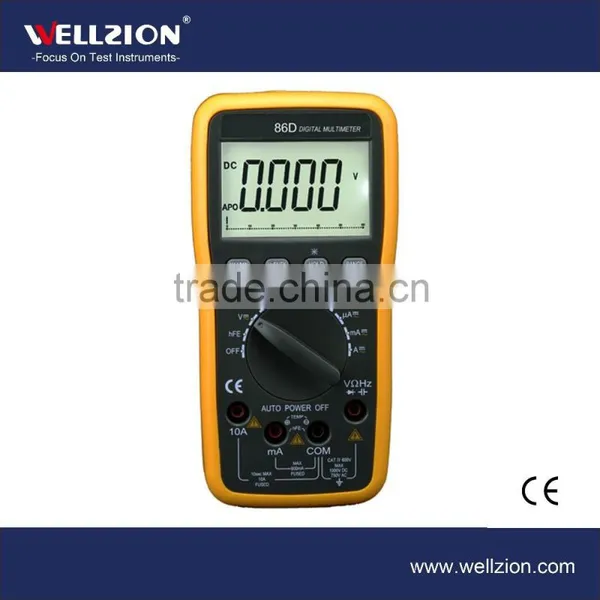

VICTOR 86D,digital Multimeter,Max.reading:6000NegotiableMOQ: 30 Pieces -
VC87,True RMS Digital Pocket Multimeter,max to 2000uFNegotiableMOQ: 30 Pieces
-
VC87,True RMS Digital Manual Multimeter,max to 2000uFNegotiableMOQ: 30 Pieces
-
VC87,True RMS Digital Auto Range Multimeter,max to 2000uFNegotiableMOQ: 30 Pieces
-
VC87,True RMS Digital Multimeter,max to 2000uFNegotiableMOQ: 30 Pieces
Function and Benefits
- New type holster, streamline design,
- USB interface can connect to computer ,Large LCD anoloq bar graph display
- Unit symbol display,make the reading clearly, display.
- Metallic screen board with strong antimagnetic and anti-interferential function
- Auto power off and alarm when stopped used after 15 minutes.
- Full function protection,anti-high voltage circuit design
Specifications
Basic Function |
Range |
Basic Function |
|
DC Voltage |
600mV/6V/60V/600V/1000V |
±(0.5%+4) |
|
AC Voltage |
6V/60V/600V/750V |
±(0.8%+10) |
|
DC Current |
600uA/6000uA /60mA/600mA/10A |
±(1.2%+10) |
|
AC Current |
600uA/6000uA /60mA/600mA/10A |
±(1.5%+10) |
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
±(0.8%+4) |
|
Capacitance |
40nF/400nF/4uF/40uF/200uF |
±(3.5%+8) |
|
Frequency |
100Hz/1kHz/10kHz/100kHz/1MHz/30MHz |
±(0.5%+15) |
|
Temperature/Ceisius |
(-20 ~ 1000) / (0~1832) |
±(1.5%+15) |
|
Special Function
Diode test |
√ |
||
Transistor test |
- |
||
Continuity buzzer |
√ |
||
Low battery indication |
√ |
||
Data hold |
√ |
||
Auto power off |
√ |
||
Unit symbol display |
√ |
||
RS232 interface jack |
√ |
||
Max./ Min |
√ |
||
Function protection |
√ |
||
Shkproof protection |
√ |
||
Frequency /duty cycle |
0.1%~99.9% |
||
Input impedance |
10MΩ |
||
Sampling rate |
3 times/s |
||
AC Frequency response |
(40-400)Hz |
||
Operation way |
Auto range |
||
Max. display |
5999 |
||
LCD Size |
70×50mm |
||
Power |
3V (1.5V×2) |
General Characters
Product color |
Case: dark gray; Holster color:yellow |
Product Net Weight |
Approx.350g (including battery) |
Product dimension |
191×93×48mm |
Standard Accessories |
Test leads; battery; instruction manual TP01 temperature probe;(86C Transistor test accessory) |
Standard inner packing |
Color box
|
Carton size |
465×317×506mm |
Standard Quantity Per Carton |
30 pcs |
Standard Gross Weight |
Approx. 26kg |
