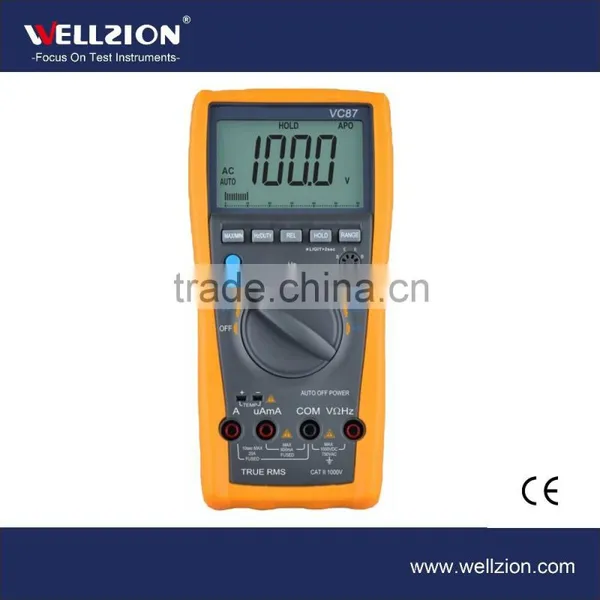

VC87,True RMS Digital Multimeter,max to 2000uF

VC87,True RMS Digital Multimeter,max to 2000uF thumbnail-1
VC87,True RMS Digital Multimeter,max to 2000uF photo-1
Negotiable MOQ: 30 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Model Number:
VC87
Measuring Current Range:
600uA~20A
Contact Supplier Request Quote Chat Now
Xiamen Wellzion Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Model Number VC87
Measuring Current Range 600uA~20A
Measuring Voltage Range 600mV~1000V
Measuring Resistance Range 600Ω~30MΩ
Measuring Capacitance Range 4nF~2000uF
Operating Temperature °C:-40°C~1000°C°F: -0°F~1832°F
Dimensions 43.5cm*29.5cm*40.5cm

Specifications

VC87,True RMS Digital multimeter,max to 2000uF
1000V AC/DC Volt/amp
Variable frequency measurement
Special DMM for autocar



VC87 True rms 3 5/6 industrial gauge meter digital for car motor drives/ VSD/ variable frequency, pocket multimeter





Features and Benefits:

  • True RMS ACV and ACA for accurate measurements on nonlinear signals;
  • Accurate measurement of voltage and frequency on motor drive;
  • 12 kinds of measuring function, with VSD, diode, hFE, duty cycle, resistance, continuity, etc.
  • Analog display, manual or auto range;
  • Strong antimagnetic and anti-jamming performance. Full function protection, with anti high voltage circuit design;
  • Large LCD display, white backlight, unit symbol display, very easy to read;
  • Relative value, Max/Min value measuring, data hold.

Technical data:

Basic function

Range

Accuracy

DCV

600mV/6V/60V/600V/1000V

±(0.5%+4)

ACV

6V/60/600/1000V

±(0.8%+10)

DCA

600uA/6000uA/60mA/600mA/6A/20A

±(0.8%+3)

ACA

600uA/6000uA/60mA/600mA/6A/20A

±(1.0%+20)

Resistance

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

±(0.8%+5)

Capacitance

40nF/ 400nF/4uF/40uF/400uF/2000uF

±(3.5%+8)

Frequency

100Hz/1kHz/10kHz/100kHz/1MHz/60MHz

±(0.5%+4)

Centigrade temperature

-40°C~1000°C

±(0.75%+3)

0°F~1832°F

±(1.2%+3)

Special function

VC87

VSD

√

True RMS

√

Diode test

√

hFE test

√

Continuity test

Approx. less than 30Ω±10Ω

Low battery indication

Approx less than 5V

Duty cycle measuring

√

Data hold

√

Auto power off

Approx.15minutes

Analog bar

√

Backlight display

√

Function protection

√

Input impendence

10MΩ

Sampling rate

3times/s

AC frequency response

40-10KHz

Operation method

Manual or auto range

Max. display

6000

LCD size

65x41mm

Battery

9V(6F22)

Power dissipation

Quiescent current approx. 3mA

General characteristic

Color

Body: dark grey, holster: yellow or orange

Weight

290g(including battery)

Meter size

185×93×35mm

Standard accessory

Test leads, battery, manual, TP01 temperature probe,Crocodile clip

Packing

Gift box

Standard packing per carton

30pcs

Carton size

43.5×29.5×40.5cm

Standard G.W per carton

16.5kg
