Help CenterTH1912,Digital AC Millivoltmeter,5Hz~3MHz,4 1/2 Double VFD
Related Products
-
SP2281,Digital RF Millivoltmeter/ Frequency Counter,rf Millivoltmeter,9kHz~1200MHzNegotiableMOQ: 1 Piece -
SM2050A,Digital AC Millivolt Meter,millivoltmeter,4 1/2 Digits,5Hz~5MHzNegotiableMOQ: 1 Piece
-
SM2030A,5Hz~3MHz,Digital AC MillivoltMeter,digital Millivoltmeter,3 1/2 DigitsNegotiableMOQ: 1 Piece
-
CA-101,Audio Signal Generator,digital Audio Signal Generator,10Hz~1MHz Signal GenratorNegotiableMOQ: 1 Piece
-
SP1651,DDS Audio Sweep Signal Generator,0.1Hz~200kHz,audio Generator,sweep GeneratorNegotiableMOQ: 1 Piece
Specifications
1.40,500 reading display2.Calibration without uncovering
3.Selection of ground and float
Brief description:

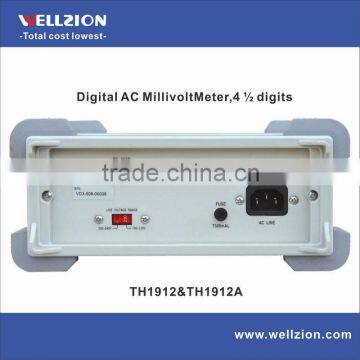

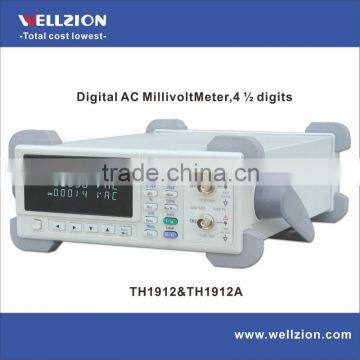

TH1912 is 4 1/2 double VFD digit AC millvoltmeters, which can also be used as power meter and level meter.
The test value and operation value can be displayed. The adoption of intelligent micro processor control technology, good amplifier and A/D linearity cymoscope makes the deviation of test voltage lower than 1%.
Chip production and installing craft make the millivoltemeter with the good performance of small volume, light, high stability, fast test speed, small deviation of frequency response .etc Setting function of multi parameter and math operation, as well asthe function of ground and float, expands the using range of millivoltemeter, and improves the safety.
Standard RS 232 interface, optional GPIB interface, and general RS232 software are provided to meet the demand of connecting with computer and forming auto test system. The instrument can receive the SCPI command to guarantee the compatibility of communication software.
Function
| Parameter | AC voltage |
| Math function | %,dB,dBm |
| Range | Auto manual |
| Display | VFD,dual display |
| Reading mode | Main display; all test parameter Sub-display: display all function parameters except the current main display |
| Trigger mode | INT/MAN/BUS |
| Reading hold | Within the deviation range, pursuit an optimal stable reading for data block |
| Comparator | Perform MAX, MIN status judgment and display, and send ALARM (open/close) |
| Communication interface | RS232C, SCPI command program supportable |
Specifications
| Model | TH1912 | TH1912A | |||
| Channel | Dual Channels | ||||
| Frequency Bandwidth | 5Hz~3MHz | 5Hz~5MHz | |||
| Speed and full scale reading | slow | middle | fast | ||
| (reading/second) | ACV | 1 | 2 | 12.5 | |
| Full scale reading | 40,500 | 40,500 | 4,050 | ||
| ACV | Max. reading | Resolution | Accuracy | Input impedance | |
| Range | 3.8mV | 4.0500 | 0.1μV | 1% | 1MΩ |
| 38mV | 40.500 | 1μV | 1% | 1MΩ | |
| 380mV | 405.00 | 10μV | 1% | 1MΩ | |
| 3.8V | 4.0500 | 100μV | 1% | 1MΩ | |
| 38V | 40.500 | 1mV | 1% | 1MΩ | |
| 300V | 405.00 | 10mV | 1% | 1MΩ | |
| Frequency response deviation | 5Hz~20Hz | ±(4% of reading value+ 0.5% of full scale) | |||
| 20Hz~2MHz | ±(2% of reading value+ 0.5% of full scale) | ||||
| 2MHz~3MHz | ±(3% of reading value+ 0.5% of full scale) | ||||
| 3MHz~5MHz | ---- | ±(4% of reading value+ 0.5% of full scale) | |||
| Dimensions (W×H×D) | 225mm×100mm×355mm | ||||
| Weight | Approx.2.5 kg | ||||
