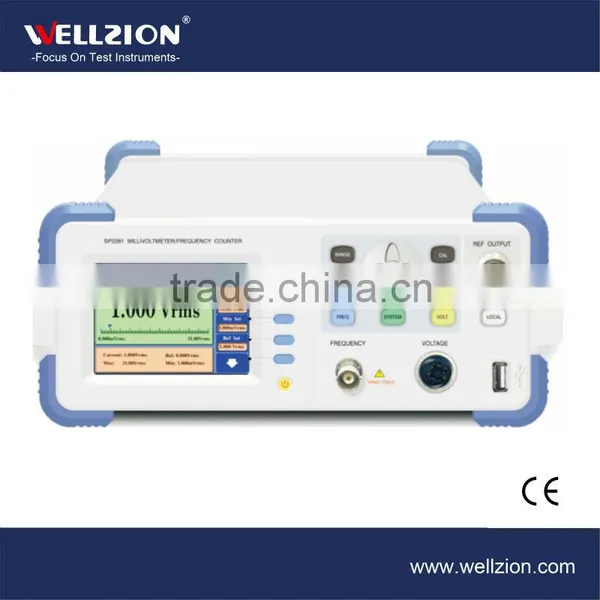

SP2281,Digital RF Millivoltmeter/ Frequency Counter,rf Millivoltmeter,9kHz~1200MHz

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Model Number:

SP2281

Xiamen Wellzion Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Model Number SP2281

Specifications

Voltage measurement available for both manual and auto
Level measurement for auto

Features and Benefits:

Controlled by advanced MCU,some advantages such as, high resolution, high precision and high reliablility.
QVGA, using numerical keys
Produced by SMT, new_type metal box
MTBF:> 20000h
RS-232 Interface, Option GPIB Interface,USB Interface

FrequencyRange of Voltage to be measured	1.2GHz RF Probe:9kHz~1200MHz
	2G Coaxial Detector:10kHz~2000MHz
	3G Coaxial Detector:10kHz~3000MHz
Voltage Measurement Range	1mVrms~10Vrms 50Ω
Level Measurement Range	-47dBm~+33dBm,50Ω
Voltage Ranging	4mVrms/40mVrms/400mVrms/4Vrms/10Vrms
Level Ranging	-40/-20/0/+20/+40dBm
Coaxial Detector Frequency Response Error	Frequency Range	2GHz Coaxial Detector		3GHz Coaxial Detector
	Ranging	2.25V~10mVrms	10mV~2mVrms	2.25V~10Vrms	10mV~2mVrms
	100kHz~100MHz	±2%	±3%	±2%	±3%
	10kHz~200MHz	±3%	±4%	±3%	±4%
	200MHz~600MHz	±5%	±7%	±5%	±7%
	600MHz~1000MHz	±8%	±9%	±7%	±9%
	1000MHz~1500MHz	±12%	±13%	±12%	±13%
	1500MHz~2000MHz	±15%	±16%	±16%	±17%
	2000MHz~2500MHz	- -	- -	±15%	±16%
	2500MHz~3000MHz	- -	- -	±17%	±18%
Surface SW Coefficient of 10V Coaxial Deteetor(50Ω)	Frequency Range			SW Coefficient
	10kHz~200MHz			≤1.03
	200MHz~500MHz			≤1.04
	500MHz~1000MHz			≤1.15
	1000MHz~1600MHz			≤1.25
	1600MHz~2000MHz			≤1.35
	2000MHz~3000MHz			≤1.40
Reference Output	Output Voltage:1V_RMS
	Output Frequency:≈100kHz
	Output Impedance:50Ω
Frequency Counter	Frequency Range:10kHz~1GHz/2.5GHz/3GHz
(Configurable)	Input Characteristics	Minimum Input Voltage:50mV	Maximum Input Voltage:5V	Time base:10MHz Stability 5×10^-6
Dimension	255mm×370mm×100mm
Weigth	3.5kg
