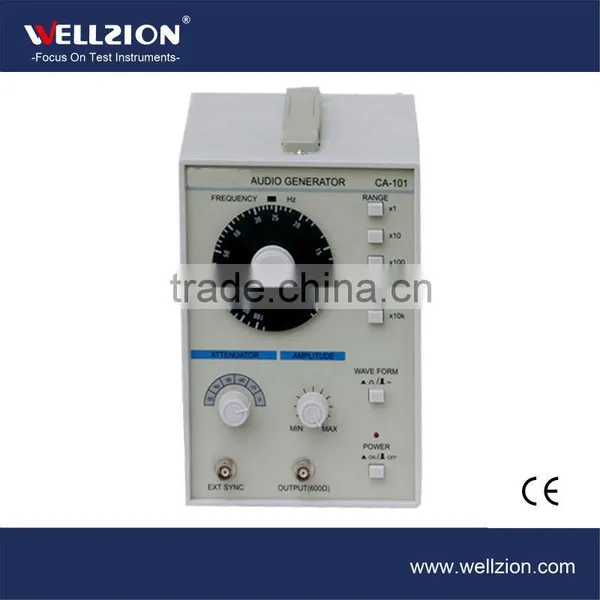

CA-101,Audio Signal Generator,digital Audio Signal Generator,10Hz~1MHz Signal Genrator

Xiamen Wellzion Electronics Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

OEM

Model Number:

CA-101

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name OEM

Model Number CA-101

CA-101,Audio Signal Generator,digital audio signal generator,10Hz~1MHz signal genrator

Features and Benefits

Frequency range:10Hz-1MHz divided into five steps
Sine wave characteristics:output voltage ≥20Vp-p(NO Load)
Noliear distortion:≤0.1%
Square characteristics:
output voltage:≥10Vp-p(No Load)
Rise time:200ns
External synchronization characteristics:±1%/V
Power output:about 5W
Frequency range of external measuring:1Hz~100MHz

Specifications

Sine Wave
Frequency range	10Hz~1MHz, 5 ranges
Frequency indicator	Dial scale
Frequency accuracy	±(3%+1Hz)
Output voltage	≥5 Vrms (no load);≥2.8 Vrms (600Ω load)
Frequency response	10Hz~1MHz ±1.5dB (600Ω load, 1kHz reference frequency)
Distortion factor	400Hz~20kHz 0.1% or less
Distortion factor	50Hz~500kHz 0.5% or less
Square Wave
Output voltage	10Vp-p or more
Rise & fall time	≤0.25μ s
Duty ratio	50%±5% at1kHz
External synchronization
Synchronization range	±3%/Vrms
Max. input voltage	10Vrms
Input impedance	10kΩ±10%
Output characteristic
Impedance	600Ω±10%
Output attenuator	0, -10, -20, -30, -40, -50dB 6 ranges (accuracy±1dB at 600Ω load)
Frequency counter
Frequency range	1Hz~1MHz
Power source	110 ~ 127VAC±10%/220 ~ 240VAC±10%, 50Hz±2Hz/60Hz±2Hz
General Specification
Dimensions	140(W) mm x 210(H)mm x 240mm(D)
Weight	Approx 3.5kg
