Yuelon is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction
heating equipment and systems. our company was established in 1998 and is privately held. Precision induction
heating solutions are our specialty. Use induction heating to improve the efficiency and effectiveness for industrial
heating process. That are used for application such as brazing. annealing, hardening, forging, melting, shrink
fitting etc.
MF-90
Typical applications:
- ≤120KG of gold,silver,copper, brass melting.
- ≤40KG of steel, stainless steel melting.
- ≤40KG of aluminum , aluminum alloy melting.
- heat for matching of shaft into hole.
- Heat of steel or brass rod and nut for forging
- etc.
Medium frequency power of the main models
Models |
MF-15 |
MF-25 |
MF-35 |
MF-45 |
MF-70 |
Max input power Frequency |
15W |
25W |
35W |
45W |
70W |
Frequency |
1-20KHZ |
1-20KHZ |
1-20KHZ |
1-20KHZ |
1-20KHZ |
Max input current |
23A |
36A |
51A |
68A |
105A |
Output current |
3-22A |
5-45A |
10-70A |
15-95A |
20-130A |
Output voltage |
70-550V |
70-550V |
70-550V |
70-550V |
70-550V |
Input voltage |
3qhase 380V±20%50 or 60HZ |
||||
Duty cycle |
100% |
||||
Timer |
Heating time/retaining time:0.1-99.9seconds |
||||
Whole systems water flow |
≥0.2Mpa ≥6L/Min |
≥0.2Mpa ≥6L/Min |
≥0.3Mpa ≥10L/Min |
≥0.3Mpa ≥10L/Min |
≥0.3Mpa ≥20L/Min |
Power supply water flow |
≥0.2Mpa ≥3L/Min |
≥0.2Mpa ≥3L/Min |
≥0.2Mpa ≥4L/Min |
≥0.2Mpa ≥4L/Min |
≥0.2Mpa ≥6L/Min |
Max water temperature |
<40℃ |
||||
Water way |
1 water inlet, 1 water outlet |
1 water inlet, 3 water outlet |
|||
Generator weigh |
26kg |
28kg |
35kg |
47kg |
75kg |
Generator size(mm) |
470×270×450 |
470×270×450 |
520×270×450 |
650×270×450 |
750×270×450 |
Models |
MF-90 |
MF-110 |
MF-160 |
MF-240 |
MF-300 |
Max input power Frequency |
90W |
110W |
160W |
240W |
300W |
Frequency |
1-20KHZ |
1-20KHZ |
1-20KHZ |
1-20KHZ |
1-20KHZ |
Max input current |
135A |
240A |
320A |
360A |
480A |
Output current |
25-170A |
30-320A |
50-500A |
40-430A |
50-610A |
Output voltage |
70-550V |
70-550V |
70-550V |
70-550V |
70-550V |
Input voltage |
3qhase 380V±20%50 or 60HZ |
||||
Duty cycle |
100% |
||||
Timer |
Heating time/retaining time:0.1-99.9seconds |
||||
Whole systems water flow |
≥0.3Mpa ≥20L/Min |
≥0.3Mpa ≥30L/Min |
≥0.3Mpa ≥30L/Min |
≥0.3Mpa ≥30L/Min |
≥0.3Mpa ≥30L/Min |
Power supply water flow |
≥0.2Mpa ≥6L/Min |
≥0.2Mpa ≥10L/Min |
≥0.2Mpa ≥10L/Min |
≥0.2Mpa ≥10L/Min |
≥0.2Mpa ≥10L/Min |
Max water temperature |
<40℃ |
||||
Water way |
1 water inlet, 3 water outlet |
||||
Generator weigh |
82kg |
125kg |
280kg |
280kg |
300kg |
Generator size(mm) |
750×400×870 |
820×500×870 |
800×560×1800 |
800 x 560 x 1800 |
800×560×1800 |

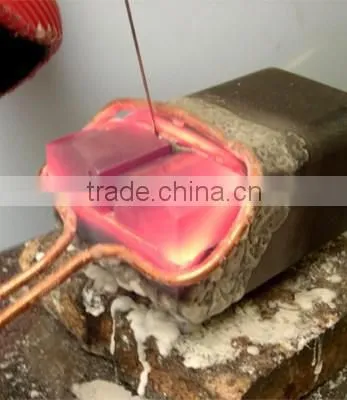

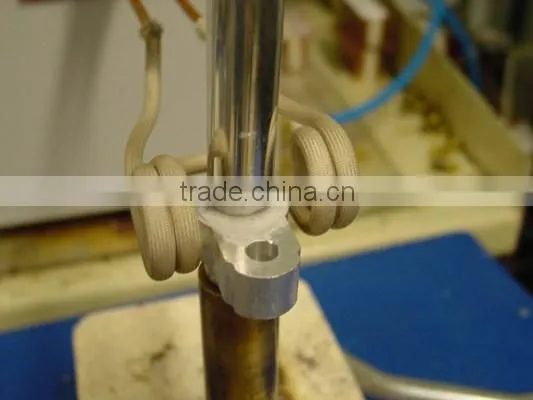

Brazing is a heating process in which two or more like or unlike materials are joined together by means of
anther metal alloy with a lower melting point(solder).
Heat treatment(headening, annealing, tempering etc.)
It is mainly aims to change the rigidity of the metal materials through the heat treatment to workpieces.

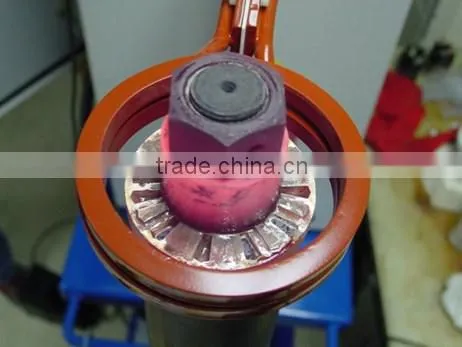

Hot forging/hot forming
Hot forging aims to fabricate the workpieces of certain temperature(different materials require different
temperatures) into other shapes though forging press with the help of punch press, forging machine or other
equipment.

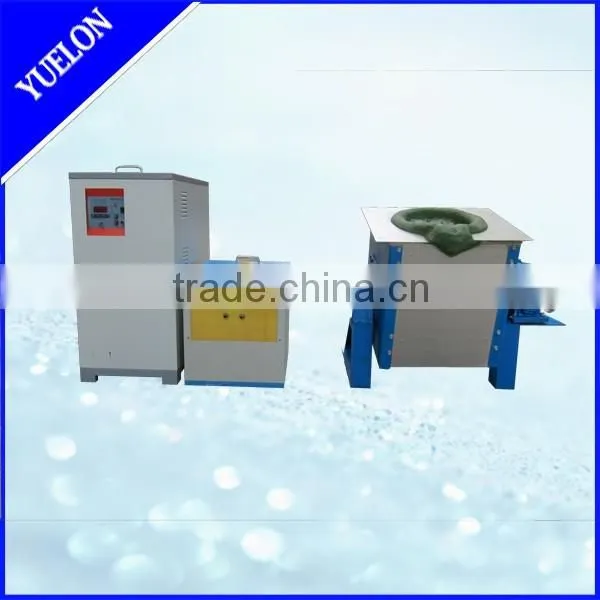

Melting
Melting metals with solid state induction heating is usually accomplised by heating the metal in a crucible
made from a non-conductive refractory meterial. The charge of metal within the crucible is melted down to
liquid form.
This process is commonly used to produce high quality steels and non ferrous alloys for casting operations
. The liquefied metal is poured into a cavity having the desired shape. The metal solidifies with a minimum of
shrinkage, after which the mold is removed to reveal a finished, machinable product.
Shrink fitting
Shrink fitting refers to the connection of different metals or metals with nonmetals through the heating based
on the principle of hot expansion or hot smelting.
Others
