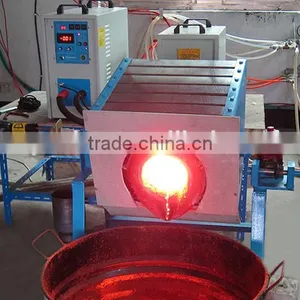

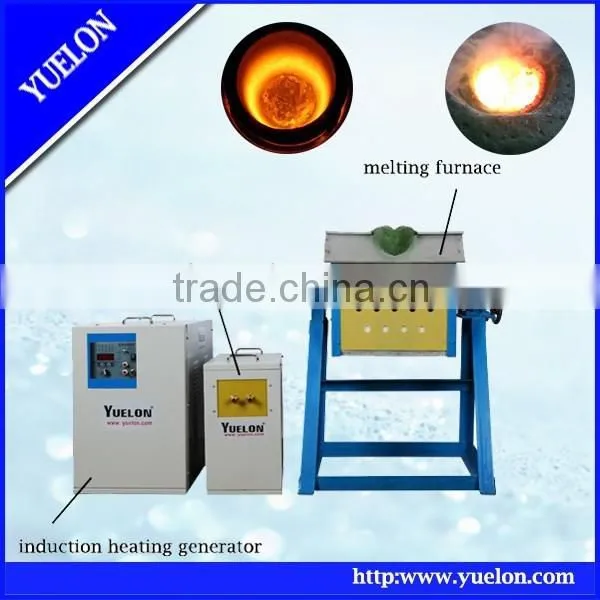

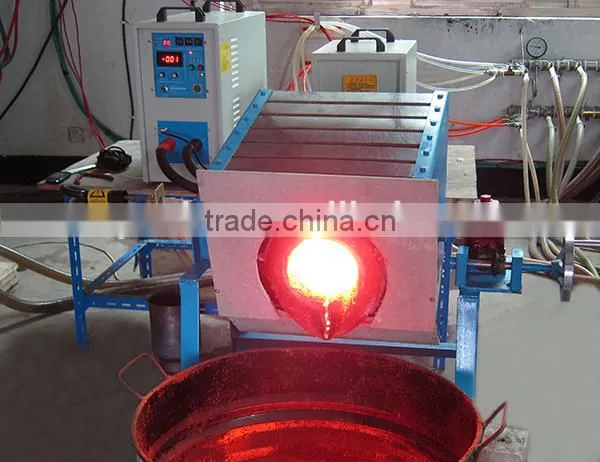

Help CenterHigh Quality and Energy-saving Induction Melting Furnace
Related Products
-
160kw Energy-saving Induction Melting FurnaceUS$ 9,500 - 11,000MOQ: 1 Set -
Medium Frequency Electric Smelting FurnaceUS$ 8,000 - 9,000MOQ: 1 Set
-
Electric Induction Melting Furnace For SmeltingUS$ 5,000 - 5,000MOQ: 1 Set
-
High-quality Induction Gold Melting EquipmentUS$ 11,000 - 12,000MOQ: 1 Set
-
High Power Design Medium Frequency Induction Melting FurnaceUS$ 12,000 - 14,000MOQ: 1 Set
YONGKANG YUELON ELECTRONIC EQUIPMENT CO.,LTD
YUELON is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction heating equipment and systems.
Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the efficiency and effectiveness for industrial heating process.
that are used for application such as brazing, annealing, quenching, forging, melting, shrink fitting etc.
our induction heating machine are Available from 2KW to 1500KW deliverable output power with 0.5KHZ to 1.1MHZ operating frequency range.
All our products are divided into four major series according to the frequency:
Medium frequency series (abbr. MF series): 0.2-20KHZ
High frequency series (abbr. HF series): 30-100KHZ
Superaudio frequency series (abbr. SF series): 8-40KHZ
Ultrahigh frequency series (abbr. UF series) : 100-1000KHZ
Model |
Max input power |
Maximum melting capacity |
||
Iron, steel ,stainless steel |
Gold,silver,copper,bronze |
aluminum,aluminum alloy |
||
MF-15 induction melting furnace |
15KW |
3KG |
10KG |
3KG |
MF-25 induction melting furnace |
25KW |
5KG |
20KG |
5KG |
MF-35 induction melting furnace |
35KW |
10KG |
30KG |
10KG |
MF-45 induction melting furnace |
45KW |
18KG |
50KG |
18KG |
MF-70 induction melting furnace |
70KW |
25KG |
100KG |
25KG |
MF-90 induction melting furnace |
90KW |
40KG |
120KG |
40KG |
MF-110 induction melting furnace |
110KW |
50KG |
150KG |
50KG |
MF-160 induction melting furnace |
160KW |
100KG |
250KG |
100KG |
MF-240 induction melting furnace |
240KW |
150KG |
400KG |
150KG |
MF-300 induction melting furnace |
300KW |
200KG |
500KG |
200KG |
Features:
Installation and operation is simple, easy to learn.
It has an ability of continuous smelting during 24 hours per day, saving electricity and energy.
Diathermanous ability is excellent during heating, and heating uniformly.
The magnetic field in the furnace body has a function of magnetic mixing to the smelting metals, making the compositions of the smelting metals better distributed.
It is convenient to change the furnace body, for fitting different requirements of different smelting requirements.
The machine is using a power supply of high quality IGBT modules and new converter technique.
...
Send Inquiry to This Supplier
