YONGKANG YUELON ELECTRONIC EQUIPMENT CO.,LTD
YUELON is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction heating equipment and systems.
Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the efficiency and effectiveness for industrial heating process.
that are used for application such as brazing, annealing, quenching, forging, melting, shrink fitting etc.
our induction heating machine are Available from 2KW to 1500KW deliverable output power with 0.5KHZ to 1.1MHZ operating frequency range. All
our products are divided into four major series according to the frequency:
Medium frequency series (abbr. MF series): 0.2-20KHZ
High frequency series (abbr. HF series): 30-100KHZ
Superaudio frequency series (abbr. SF series): 8-40KHZ
Ultrahigh frequency series (abbr. UF series) : 100-1000KHZ
Category |
Model |
Maximum Input power |
Oscilating frequency |
Maximum Input current |
Input voltage |
The range of operating voltage |
Duty cycle |
|
Medium frequeny series |
MF-15 |
15KW |
1-20KHZ |
23A |
3phase 380V50Hz |
70-550V |
100% |
MF-25 |
25KW |
36A |
|||||
MF-35 |
35KW |
51A |
|||||
MF-45 |
45KW |
68A |
|||||
MF-70 |
70KW |
105A |
|||||
MF-90 |
90KW |
135A |
|||||
MF-110 |
110KW |
170A |
|||||
MF-160 |
160KW |
240A |
|||||
MF-240 |
240KW |
360A |
|||||
MF-300 |
300KW |
1-20KHZ |
480A |
Features:
1.All-solid-state IGBT frequency conversion and power adjustment, soft-switching responance dual-control and frequency automatic tracking technology is the
reliability of guarantee. module and soft switching inverting technologies are used in the production of the generator, higher reliability can be achieved;
2.Small size and portable , compared with SCR controlled machine, only 1/10 working space is needed, greatly reduce occupation space;
3.High efficiency and energy saving: a high power factor and power efficiency within the scope of full power.
4.With wide frequency range from 1-20KHZ automatic trackin ability, no need adjustment at scene.
5.100% duty cycle , 24hours continuous working ability at maximum power.
6.Constant output voltage or power control modes are alternative;
7.Full display of output power, output frequency, output voltage and current.
8.The timer function: heating time and retaining time: 0.1~99.9second.
Main models and recommend applications:
Model |
Max. melting capacity of Steel ,stainless steel |
Max melting capacity of Gold, silver, copper, bronze |
Max melting capacity of aluminum |
MF-15 15KW furnace |
3kg |
10kg |
3kg |
MF-25 25KW furnace |
5kg |
20kg |
5kg |
MF-35 35KW furnace |
10kg |
30kg |
10kg |
MF-45 45KW furnace |
18kg |
50kg |
18kg |
MF-70 70KW furnace |
25kg |
100kg |
25kg |
MF-90 90KW furnace |
40kg |
120kg |
40kg |
MF-110 110KW furnace |
50kg |
150kg |
50kg |
MF-160 160KW furnace |
100kg |
250kg |
100kg |
MF-240 240KW furnace |
150kg |
400kg |
150kg |
MF-300 300KW furnace |
200kg |
500kg |
200kg |

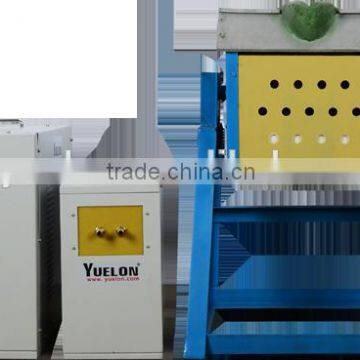

The composing of medium frequency induction melting furnace:
1.Medium frequency induction heating power supply

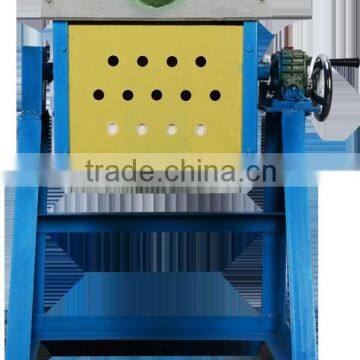

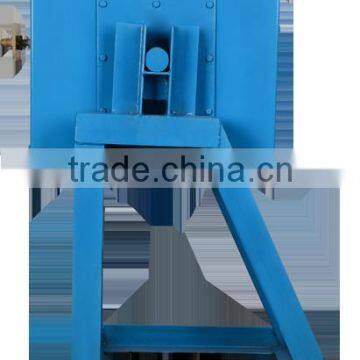

2.Melting furnace
3.Compensation capacitor
4.accessories.
Characteristics of melting by medium frequency machine
1.better heating penetration and even temperature inside the melting metal.
dium frequency filed force can stir the melting pool to achieve better melting quality.

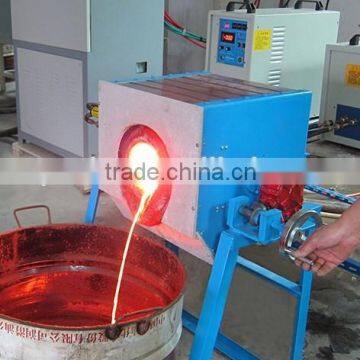

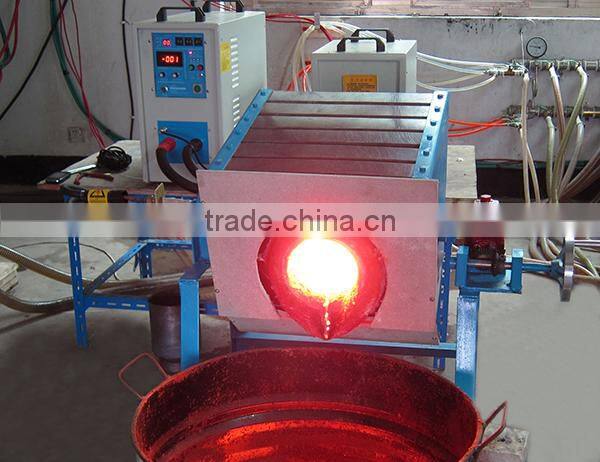

Melting the maximum quantity by the recommended machine according to above data, the first melting when the furnace is cold, and it will take 20minutes fo the
preheating, when the furnace is already hot, the melting time is about 20-30minutes per furnace.
Other examples of application
We offer complete service :
Before sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
...
