Induction Heating Power Supply 15KW-160KW

Name: Induction Heating Power Supply 15KW-160KW
Brand: YUELON
SKU: 130267387

US$ 4,000 - 40,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

YUELON

Model Number:

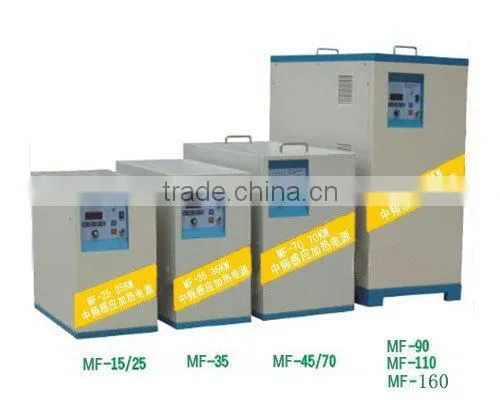

MF-15/25/35/45/70/90/110/160

Yongkang Yuelon Electronic Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name YUELON

Model Number MF-15/25/35/45/70/90/110/160

After-sales Service Provided No overseas service provided

induction heating power supply

Generator specifications:

Model	MF-15	MF-25	MF-35	MF-45	MF-70	MF-90	MF-110		MF-160	MF-300
Max Input power	15KW	25KW	35KW	45KW	70KW	90KW	110KW		160KW	300KW
Max Input current	23A	36A	51A	68A	105A	135A	170A		240A	480A
Output current	3-22A	5-45A	10-70A	15-95A	20-130A	25-170A	30-200A		30-320A	30-450A
output voltage	70-550V
Input voltage	3phase 380V ±20% 50 or 60HZ or according customer’s requirement.
Frequency	1KHZ – 20KHZ according customer’s workpiece require.
Duty cycle	100% 24hours continuous working
Generator Net weight	26	28	35	47	75	82		95	125	240
Generator Size LxWx H	470x270x450mm		520x270x450mm	650x350x550mm	750x400x870mm				820x500x870mm	560x560x1750mm
Timer	Heating time: 0.1-99.9seconds retaining time: 0.1-99.9seconds
Front panel	LCD, display frequency, power, time etc.
Whole systems water flow	≥0.2Mpa ≥6L/Min		≥0.3Mpa ≥10L/Min		≥0.3Mpa ≥20L/Min				≥0.3Mpa ≥30L/Min
Power supply water flow	≥0.2Mpa ≥3L/Min		≥0.2Mpa ≥4L/Min		≥0.2Mpa ≥6L/Min				≥0.2Mpa ≥10L/Min
Water way	1 water inlet, 1 water outlet			1 water inlet, 3 water outlet
Max water temperature	≤45°C

Generator main characteristics:

With IGBT power component and current inverting technology, and parallel oscillating circuit is used.
wide frequency range from 1KHZ to 20KHZ, it is easy to match the machine according to the parts and heating desire.
due to the parallel oscillating structure, it is easy to get the best matching of the machine to get high heating efficiency and full power output of generator.
due to the high technologies of inverting control, soft and accurate switching control is realized to assure the high reliability and low repair of the machine.
small size , compared with SCR controlled machine, only 1/10 working space is needed, greatly reduce occupation space.
High efficiency and energy saving:,a high power factor and power efficiency within the scope of full power.
With wide frequency range from 1-20KHZ automatic tracking ability, no need adjustment at scene.
100% duty cycle , 24hours continuous working ability at maximum power.
Constant output voltage or power control modes are alternative;
Full display of output power, output frequency, output voltage and current.
simple operation: operation can be learned in a one minute.
simple installation: connect the machine to 3phase 380VAC and cooling water only.
timer can be chosen to preset and adjusted the heating time, heating power, retaining time, retaining power respectively to control the heating curve and heating temperature.

Advantages and applications of models with timer function:

heating power, retaining power, heating time, retaining time can be preset and adjusted, this makes it possible to control the heating curve and heating temperature.
it is suitable to use in the repeated heating or high speed heating of small parts.
by presetting the timer and the power of the generator, retaining can be realized to a certain extent.

Main application:

Medium frequency machines are usually used in the penetration heating occations, for example,

rod heating for forging

rod end heating

melting of almost all kinds of metals

heating of stators or rotors for fitting

heating of tube end for extrusion

heating of moulds

deep quenching of shafts and gears

tempering or preheating of weld joint and so on .

...
