promotional high quality induction heati treatment machine :
Yuelon induction heating machines are wildly used in heat treatment, bonding, brazing, welding, forging, melting and
heat fitting solutions in many fields like medical device, auto parts, metalwork, Machinery&equipment Industry, electronics
and electrical industry, Metal industry and Packaging industry, Cable&wire, Foundry&metal .Tube&pipe, ect. The main
applications are as following.

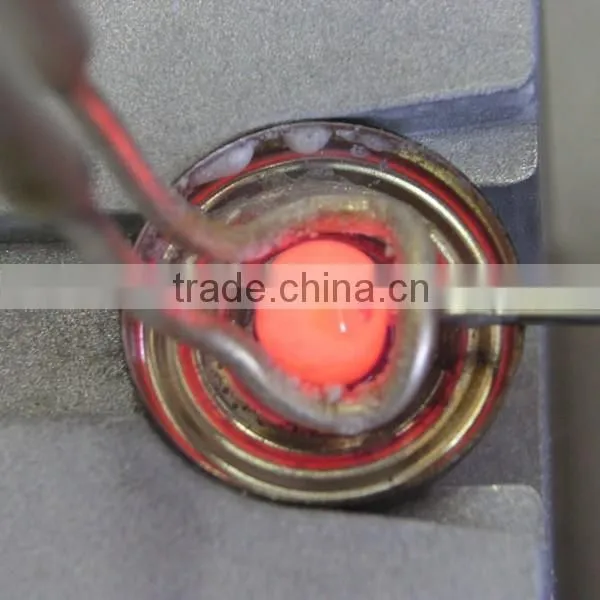

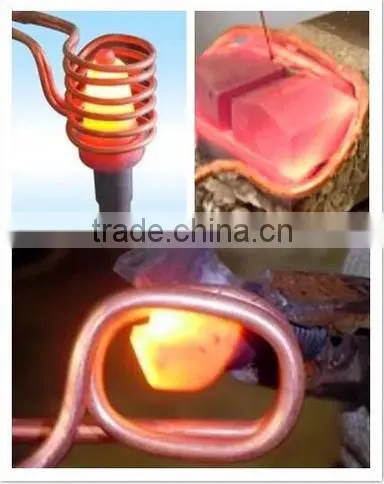

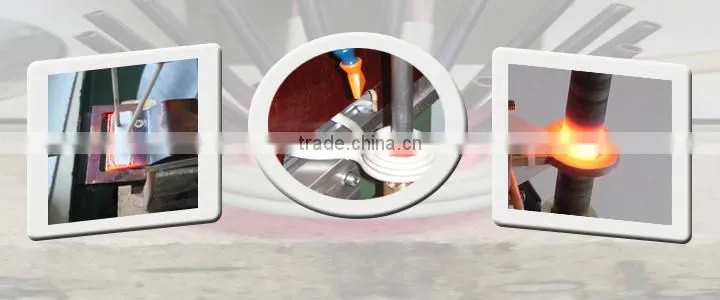

A: parts surface heating treatment, parts surface hardening, tempering, annealing, etc.
B: metal brazing, high-frequency brazing, pan bottom brazing, tool head brazing, copper brazing, lead-free soldering,
vacuum fusion, etc.
C: forging, shaping, warm bending, high frequency shrinkage fitting, heat enveloping, heat sealing, metal desiccating,
nut inserting, rotor inserting,etc.
D: precious metals melting.
E. dry resin, resin coating, warm resin forming,shrinkage fitting & Extraction ect.
Heat treating services including HSS Heat Treatment, Induction Hardening, Hardening and Tempering, Gas
Carburizing, Case Hardening, Toughening, Carbo Nitriding, Core Refining, Spherodizing, Annealing, Normalizing,
Stress Relieving, etc. Heat treatment is used to fabricate tool parts, jigs & fixtures, gears and gear parts, sprockets,
gauges, moulds, piston rods, etc.
Medium frequency power of the main models
Models |
MF-15 |
MF-25 |
MF-35 |
MF-45 |
MF-70 |
Max input power Frequency |
15W |
25W |
35W |
45W |
70W |
Frequency |
1-20KHZ |
1-20KHZ |
1-20KHZ |
1-20KHZ |
1-20KHZ |
Max input current |
23A |
36A |
51A |
68A |
105A |
Output current |
3-22A |
5-45A |
10-70A |
15-95A |
20-130A |
Output voltage |
70-550V |
70-550V |
70-550V |
70-550V |
70-550V |
Input voltage |
3qhase 380V±20%50 or 60HZ |
||||
Duty cycle |
100% |
||||
Timer |
Heating time/retaining time:0.1-99.9seconds |
||||
Whole systems water flow |
≥0.2Mpa ≥6L/Min |
≥0.2Mpa ≥6L/Min |
≥0.3Mpa ≥10L/Min |
≥0.3Mpa ≥10L/Min |
≥0.3Mpa ≥20L/Min |
Power supply water flow |
≥0.2Mpa ≥3L/Min |
≥0.2Mpa ≥3L/Min |
≥0.2Mpa ≥4L/Min |
≥0.2Mpa ≥4L/Min |
≥0.2Mpa ≥6L/Min |
Max water temperature |
<40℃ |
||||
Water way |
1 water inlet, 1 water outlet |
1 water inlet, 3 water outlet |
|||
Generator weigh |
26kg |
28kg |
35kg |
47kg |
75kg |
Generator size(mm) |
470×270×450 |
470×270×450 |
520×270×450 |
650×270×450 |
750×270×450 |
Models |
MF-90 |
MF-110 |
MF-160 |
MF-240 |
MF-300 |
Max input power Frequency |
90W |
110W |
160W |
240W |
300W |
Frequency |
1-20KHZ |
1-20KHZ |
1-20KHZ |
1-20KHZ |
1-20KHZ |
Max input current |
135A |
240A |
320A |
360A |
480A |
Output current |
25-170A |
30-320A |
50-500A |
40-430A |
50-610A |
Output voltage |
70-550V |
70-550V |
70-550V |
70-550V |
70-550V |
Input voltage |
3qhase 380V±20%50 or 60HZ |
||||
Duty cycle |
100% |
||||
Timer |
Heating time/retaining time:0.1-99.9seconds |
||||
Whole systems water flow |
≥0.3Mpa ≥20L/Min |
≥0.3Mpa ≥30L/Min |
≥0.3Mpa ≥30L/Min |
≥0.3Mpa ≥30L/Min |
≥0.3Mpa ≥30L/Min |
Power supply water flow |
≥0.2Mpa ≥6L/Min |
≥0.2Mpa ≥10L/Min |
≥0.2Mpa ≥10L/Min |
≥0.2Mpa ≥10L/Min |
≥0.2Mpa ≥10L/Min |
Max water temperature |
<40℃ |
||||
Water way |
1 water inlet, 3 water outlet |
||||
Generator weigh |
82kg |
125kg |
280kg |
280kg |
300kg |
Generator size(mm) |
750×400×870 |
820×500×870 |
800×560×1800 |
800 x 560 x 1800 |
800×560×1800 |
YONGKANG YUELON ELECTRONIC EQUIPMENT CO.,LTD
YUELON is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction heating equipment and
systems. Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the efficiency and effectiveness for industrial heating
process. that are used for application such as brazing, annealing, quenching, forging, melting, shrink fitting etc.
our induction heating machine are Available from 2KW to 1500KW deliverable output power with 0.5KHZ to 1.1MHZ operating frequency
range. All our products are divided into four major series according to the frequency:
Medium frequency series (abbr. MF series): 0.2-20KHZ
High frequency series (abbr. HF series): 30-100KHZ
Superaudio frequency series (abbr. SF series): 8-40KHZ
Ultrahigh frequency series (abbr. UF series) : 100-1000KHZ
Main characteristics:

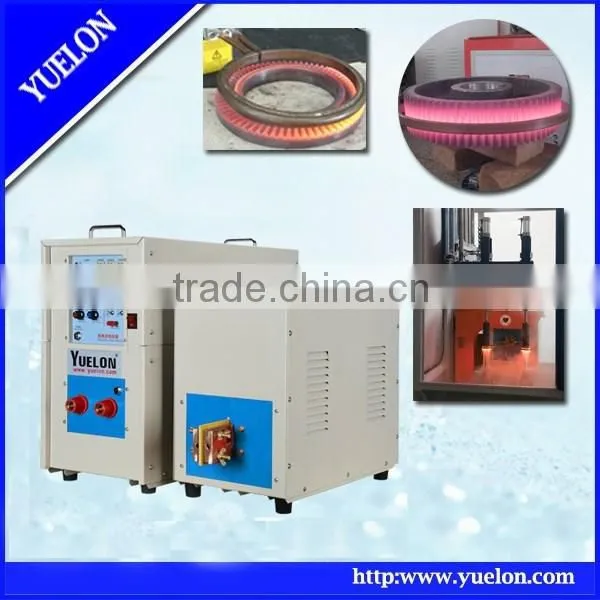

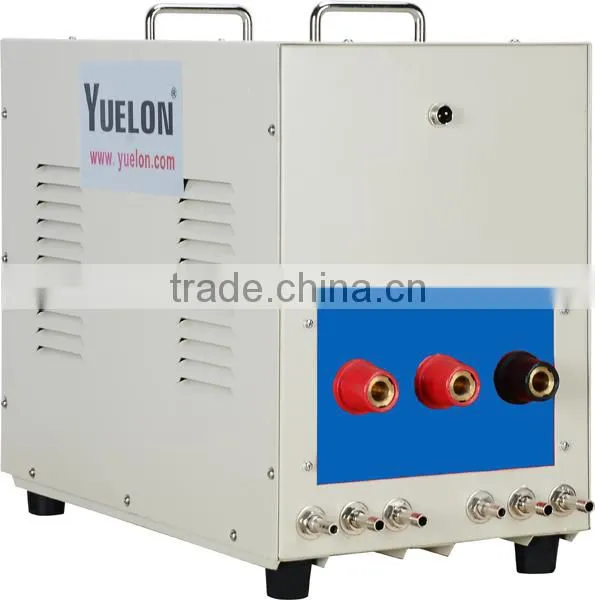

Model:HF-45AB
Maximum input power:45KW
Oscillating frequency:30-80KHz
Max input current:68A
Input voltage:3 phase 380V 50Hz
Water flow:0.2Mpa,6-10L/min
Net weight:55kg/42kg
Size:620*310*530/510*270*400
We offer complete service :
Before sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
