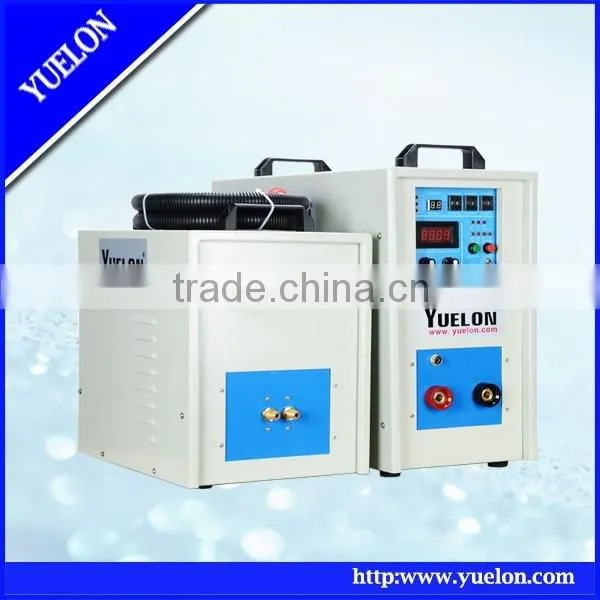

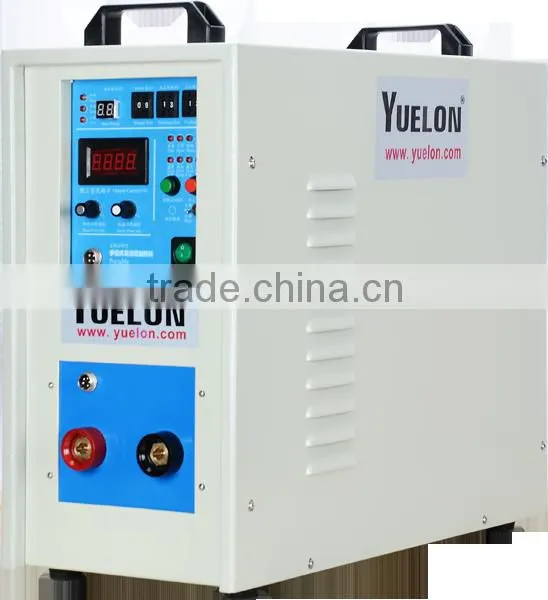

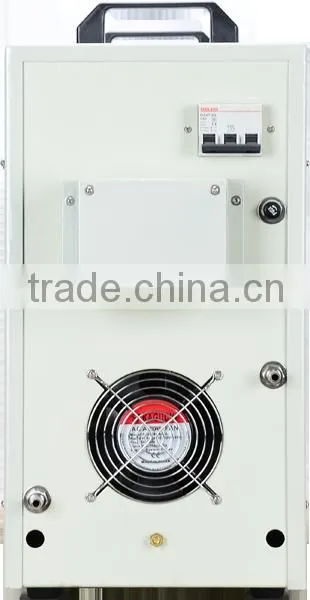

HF-25ABD
Main specifications:
Maximum input power: 25KW
Oscillating frequency: 30-80KHz
Heating current: 10-52A
Maximum input current: 38A
Input voltage: 380VAC 3phases, 50 or 60Hz
Duty cycle: 100%
Cooling water: ≥0.2Mpa 6L/min
Auto heating time: 1-99seconds
Auto retaining time: 1-99seconds
Auto cooling time: 1-99seconds
Weight and dimension:
Model |
Net weight(KG) |
Size: L x W x H (mm) |
Packing weight |
Pacing size: L x W x H (mm) |
HF-25ABD generator |
32KG |
600x260x500mm |
82KG |
700x650x600mm |
HF-25ABD transformer |
30KG |
470x270x400mm |
Model |
Maximum input power |
Oscillating frequency |
Max input current |
Input voltage |
Duty cycle |
HF-15A/AB |
7KW |
30-100KHz |
32A |
Single phase 220V 50Hz |
80% |
HF-25A/AB |
15KW |
30-80KHz |
23A |
3phase 380V 50Hz |
100 |
HF-25ABD |
25KW |
30-80KHz |
38A |
3phase 380V 50Hz |
100% |
HF-35AB |
35KW |
30-80KHz |
55A |
3phase 380V 50Hz |
100% |
HF-45AB |
45KW |
30-80KHz |
68A |
3phase 380V 50Hz |
100% |
HF-70AB |
70KW |
30-80KHz |
105A |
3phase 380V 50Hz |
100% |
