Help CenterPan Bottom Brazing Machine
Related Products
Yuelon is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction
heating equipment and systems. our company was established in 1998 and is privately held. Precision
induction heating solutions are our specialty. Use induction heating to improve the efficiency and
effectivenesfor industrial heating process. That are used for application such as brazing. annealing,hardening,
forging, melting, shrink fitting etc.
Our induction heating machine are Available from 3kw to 1500kw deliverable output power with 0.5KHZ to1.1M
HZ operating frequency range. All our products are divided into four major series according to the frequency:
Medium frequency series (abbr. MF series):0.2-20KHZ
High frequency series (abbr. HF series):30-100KHZ
Superaudio frequency series (abbr. SF series):5-40KHZ
Ultrahigh frequency series (abbr. UF series):100-1100KHZ
Main Characteristics:
1. Induction heating machine adopts the most advanced IGBT frequency conversion control technologies to ensure the high efficiency and maximum output power.
2. Induction heaters has the constant current and power control function, which can significantly optimize metal heating process, realize the high efficient and fast heating and bring into play the superior performance of the products.
3. It has the function of three-stage time setting represented by heating- heat preservation- cooling. Furthermore, the power for heating and heat preservation is available for independent regulation, which can facilitate the heating and heat preservation, which is applicable to places requiring bulking and repeated heating.
4. A maximum ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.
5. High frequency induction heaters are safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.
6. The comprehensive full load design is available for 24-hours continuous operation.
7. Induction heaters are available for ultraviolet temperature detection, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.
Application:

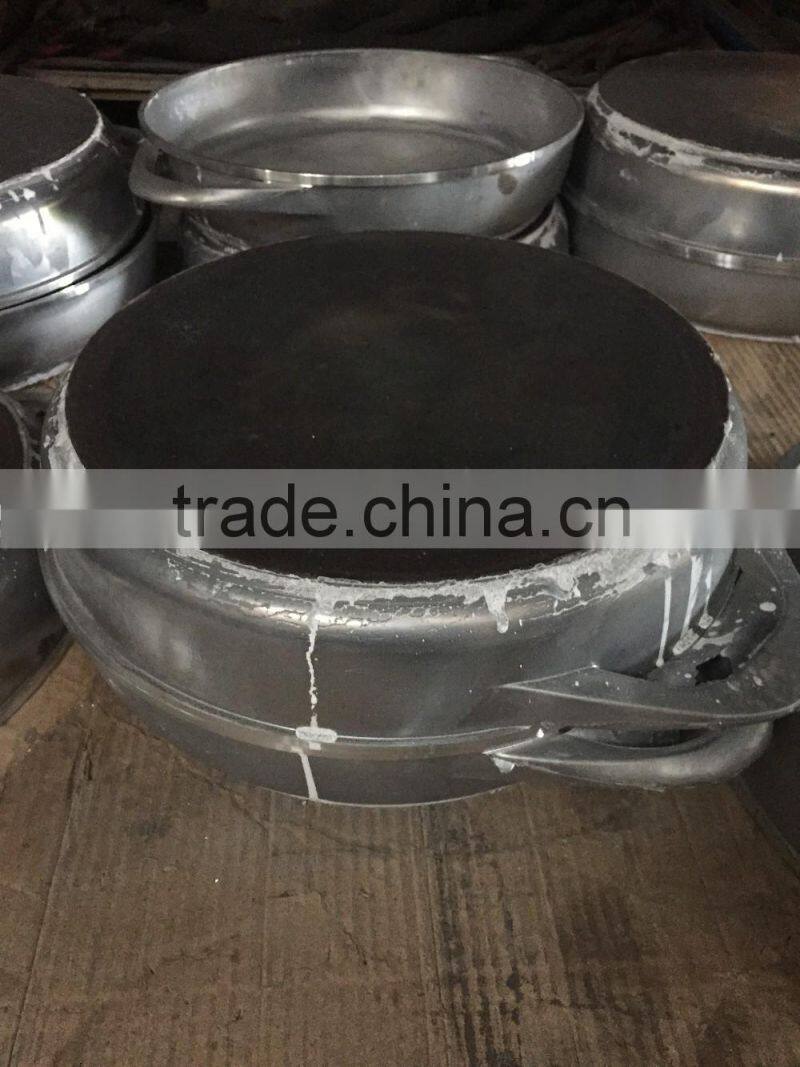

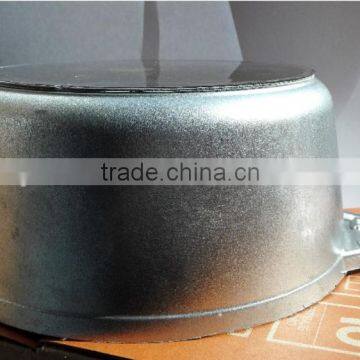

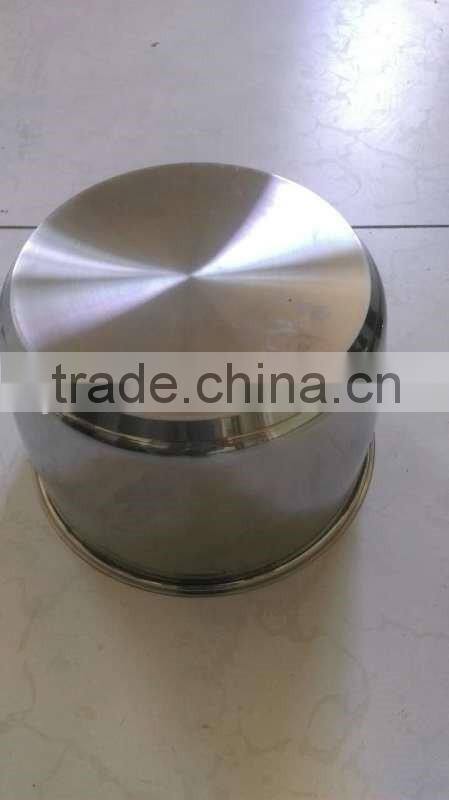

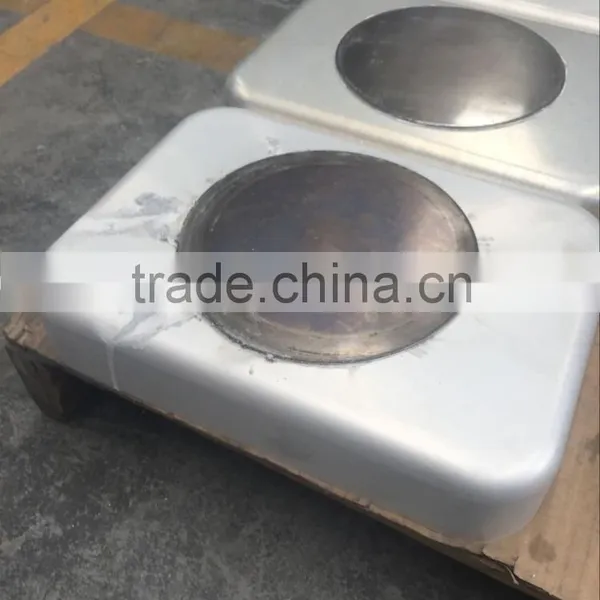

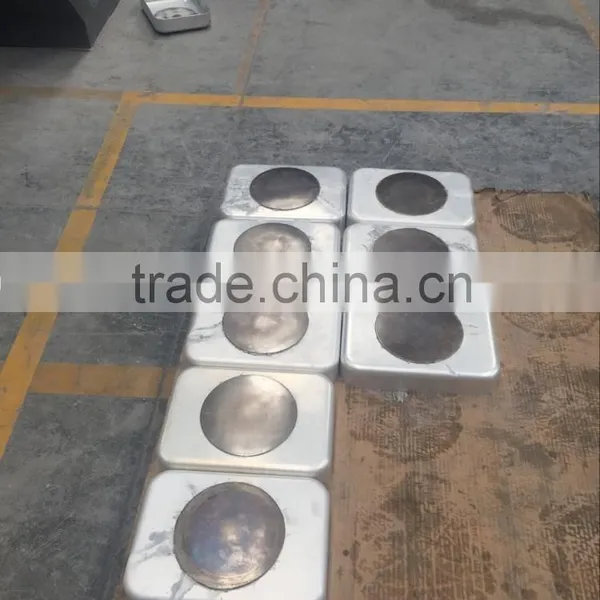

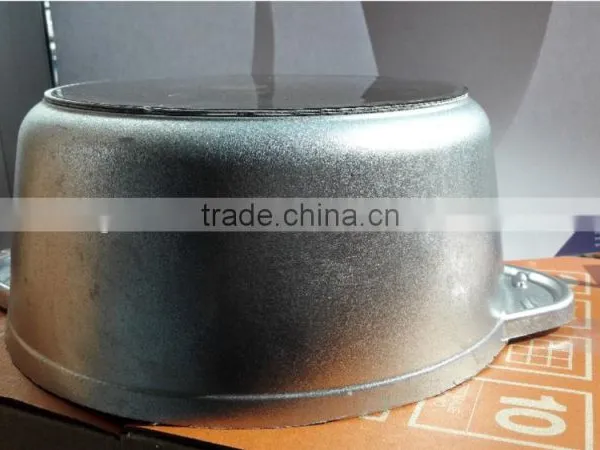

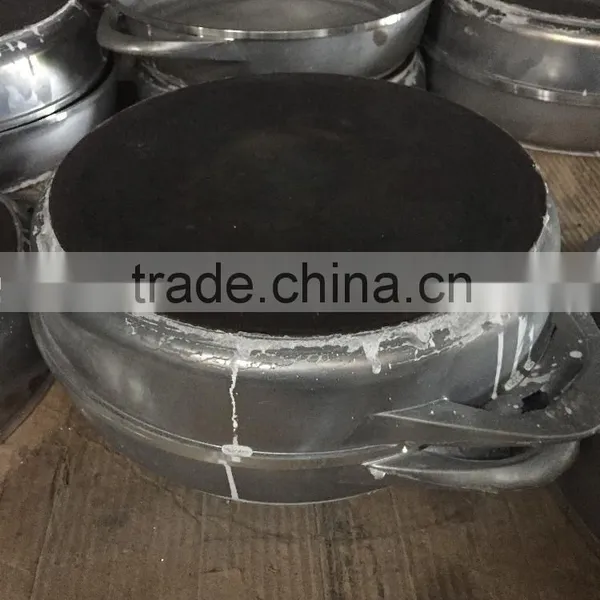

Cookware composite pot bottom brazing machine / cookware sandwich bottom brazing machine for pan, pot, kettle

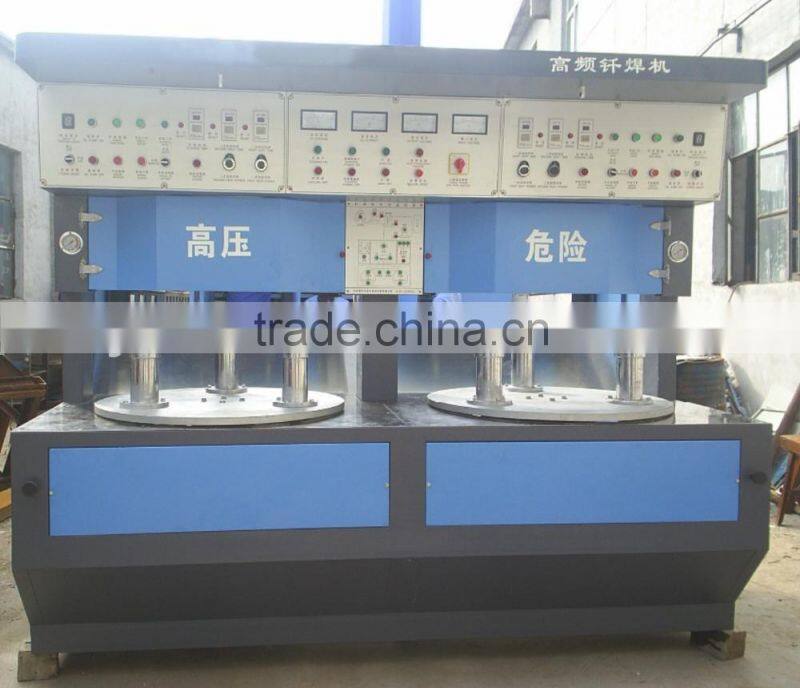

Cookware pan bottom induction brazing machine is mainly used for cookware compound bottom welding of stainless steel pan, pot, kettle, and also can be used for plane heating of other workpiece. Cookware Pan and pot bottom brazing machine is an mechanical, hydraulic and electrical integrated equipment controlled by several sets microcomputer. The main performance index takes the leading position at home and aboard.
According to the difference of heating power supply and welding diameters, this cookware sandwich bottom induction brazing equipment can be divided into a variety of models, such as:
A. Transistor high frequency cookware bottom brazing machine
Features:
1. Using high power transistor, safety and reliability, energy saving.
2. Uniform heating and good welding quality.
3. Fast heating speed and high production rate.
4. Digital display of operating mode, simple operation and easy maintenance.
Power: 50KW, 80KW, 100KW
Frequency: 200-300KHz
Welding diameter: 100-500mm
Specifications:
Model |
Power supply |
description |
Rated power |
Max welding diameter |
Size L x W x H mm |
V-21-60kw/280 |
Vacuum tube |
Single heating head double station |
60KW |
280mm |
2450 x 3100 x 2000mm |
V-22-100kw/240 |
Vacuum tube |
Double heating head double station |
100KW |
240mm |
2450 x 3100 x 2000mm |
V-21-150kw/500 |
Vacuum tube |
Single heating head double station |
150KW |
500mm |
2650 x 3100 x 2000mm |
T-11-50kw/280 |
Transistor |
Single heating head single station |
50KW |
280mm |
1350 x 3100 x 2000mm |
T-21-50kw/280 |
Transistor |
Single heating head double station |
50KW |
280mm |
2450 x 3100 x 2000mm |
T-21-80kw/340 |
Transistor |
Single heating head double station |
80KW |
340mm |
2650 x 3100 x 2000mm |
T-21-100kw/360 |
Transistor |
Single heating head double station |
100KW |
360mm |
2650 x 3100 x 2000mm |
