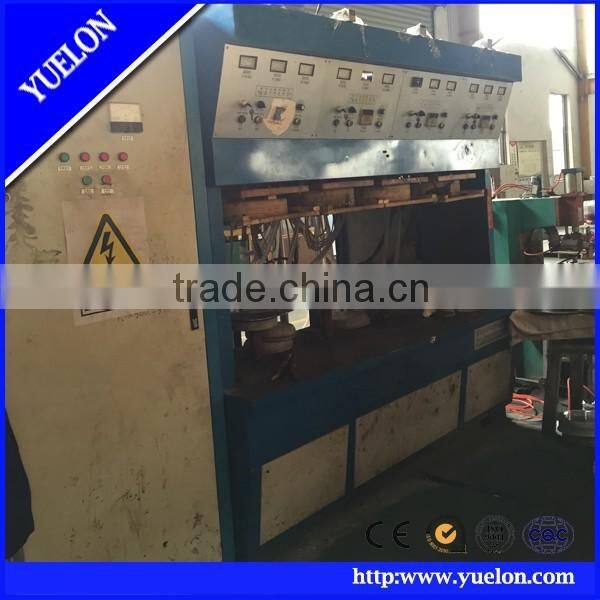

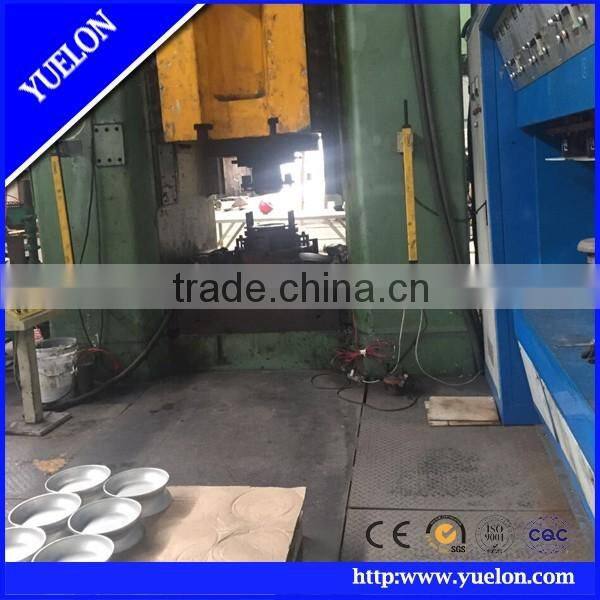

Cookware compound bottom heating machine mainly used for the preheating before compound pan bottom pressure welding, and working together with the friction press machine, and then finish the pressure welding process of compound metal, and this process also called “bottoming”. The heating power supply and the machine are both controlled by microcomputer, and this cookware bottom heating equipment is an electric, mechanical and pneumatic integrated high-tech equipment controlled by several sets microcomputer.
It is mainly consists of three parts:
1. Heating power supply
2. Heating machine tool.
3. Water cooling system
Technical parameters of Heating power supply:
The power supply using the advanced solid state high frequency technology, mainly consists of step-down transformer, rectifier bridge, flat wave filter,inverter bridge, tank capacitance etc.
heating machine tool technical parameters:

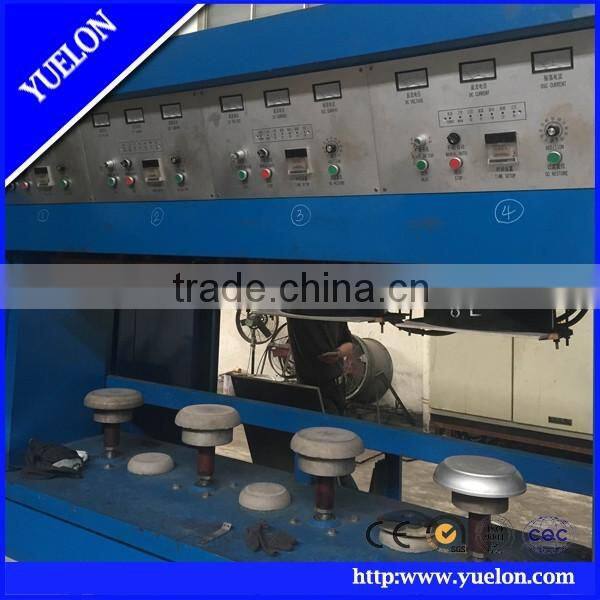

Mainly consists of turntable, protractor, induction head, electric motor, pneumatic cylinder and its components etc..
Brief Introduction of Cooling System:
The equipment adopts water-water cooling system, with external water (natural water) cooling internal water (pure water), internal water closed circulation cooling equipment.
Features of cookware bottom induction heating machine:
1. <![endif]>Using high power IGBT super-audio induction heating power supply, save electricity, water saving, safety and reliability.
2. Uniform heating and good product quality.
3. Fast heating speed and high production efficiency.
4. Little stainless steel surface oxidation.
5. Digital display of operating mode and easy maintenance.
6. Energy saving and environment protection, low failure rate.
Power option: 50KW,100KW, 160KW, 200KW
Frequency: 10-40KHz
Induction heating head: four/five
Yuelon is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction
heating equipment and systems. our company was established in 1998 and is privately held. Precision
induction heating solutions are our specialty. Use induction heating to improve the efficiency and
effectivenesfor industrial heating process. That are used for application such as brazing. annealing,hardening,
forging, melting, shrink fitting etc.
Our induction heating machine are Available from 3kw to 1500kw deliverable output power with 0.5KHZ to1.1M
HZ operating frequency range. All our products are divided into four major series according to the frequency:
Medium frequency series (abbr. MF series):0.2-20KHZ
High frequency series (abbr. HF series):30-100KHZ
Superaudio frequency series (abbr. SF series):5-40KHZ
Ultrahigh frequency series (abbr. UF series):100-1100KHZ
