Help Center35KW Induction Heating Brazing Equipment
Related Products
-
Customize Induction Heater Coil(inductor)US$ 5,000 - 7,600MOQ: 1 Set -
Customize Induction Furnace CoilUS$ 5,000 - 7,600MOQ: 1 Set
-
China High-quality Induction Gold Melting EquipmentUS$ 800 - 1,500MOQ: 1 Carton
-
IGBT High Efficiency Induction Heating DeviceUS$ 2,000 - 2,000MOQ: 1 Set
-
Heat TreatmentUS$ 6,500 - 7,000MOQ: 1 Set

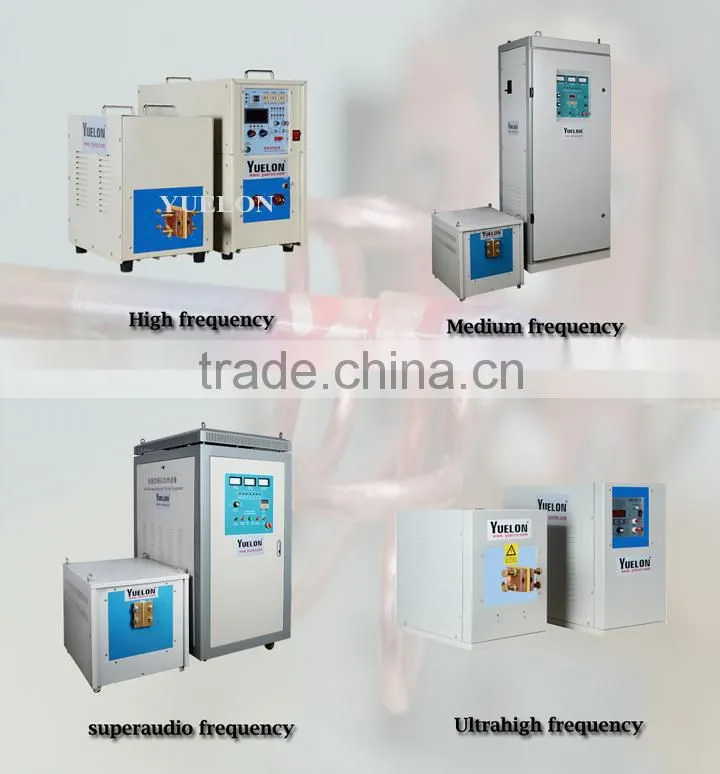

Yuelon is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction
heating equipment and systems. our company was established in 1998 and is privately held. Precision induction
heating solutions are our specialty. Use induction heating to improve the efficiency and effectiveness for industrial
heating process. That are used for application such as brazing. annealing, hardening, forging, melting, shrink
fitting etc.

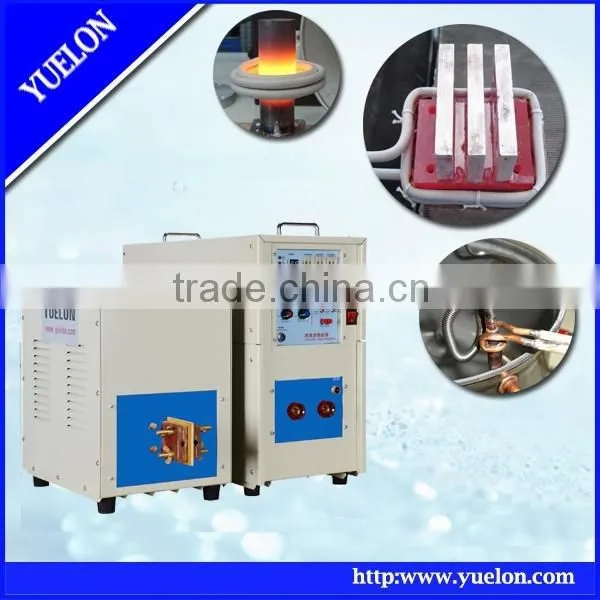

HF-35AB
Main specifications:
Maximum input power: 35KW
Oscillating frequency: 30-80KHz
Heating current: 10-70A
Maximum input current: 55A
Input voltage: 380VAC 3phases, 50 or 60Hz
Duty cycle: 100%
Cooling water: ≥0.2Mpa 6L/min
Auto heating time: 1-99seconds
Auto retaining time: 1-99seconds
Auto cooling time: 1-99seconds
Weight and dimension:
Model |
Net weight(KG) |
Size: L x W x H (mm) |
Packing weight |
Pacing size: L x W x H (mm) |
HF-35ABD generator |
38KG |
600x260x500mm |
96KG |
700x650x600mm |
HF-35ABD transformer |
35KG |
470x270x400mm |
Main models and specifications:
Model |
Maximum input power |
Oscillating frequency |
Max input current |
Input voltage |
Duty cycle |
HF-15A/AB |
7KW |
30-100KHz |
32A |
Single phase 220V |
80% |
HF-25A/AB |
15KW |
30-80KHz |
23A |
3phase 380V 50Hz |
100% |
HF-25ABD |
25KW |
30-80KHz |
38A |
3phase 380V 50Hz |
100% |
HF-35AB |
35KW |
30-80KHz |
55A |
3phase 380V 50Hz |
100% |
HF-45AB |
45KW |
30-80KHz |
68A |
3phase 380V 50Hz |
100% |
HF-70AB |
70KW |
30-80KHz |
105A |
3phase 380V 50Hz |
100% |

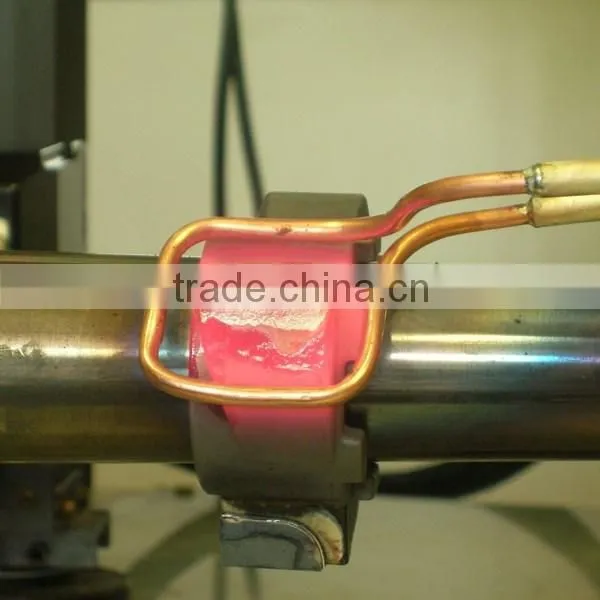

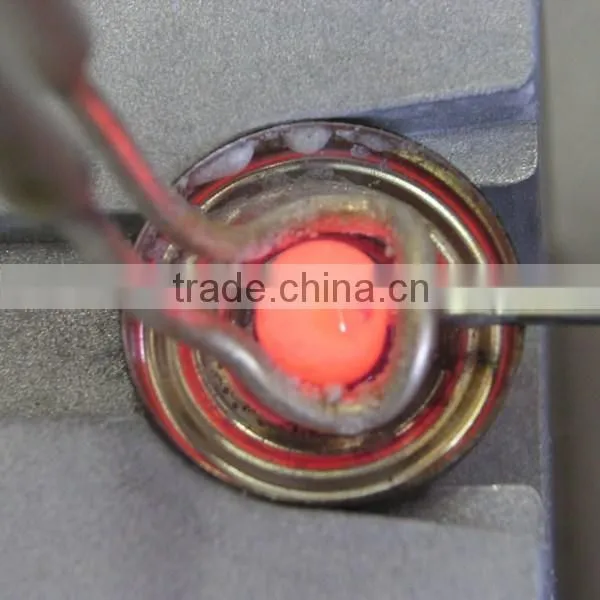

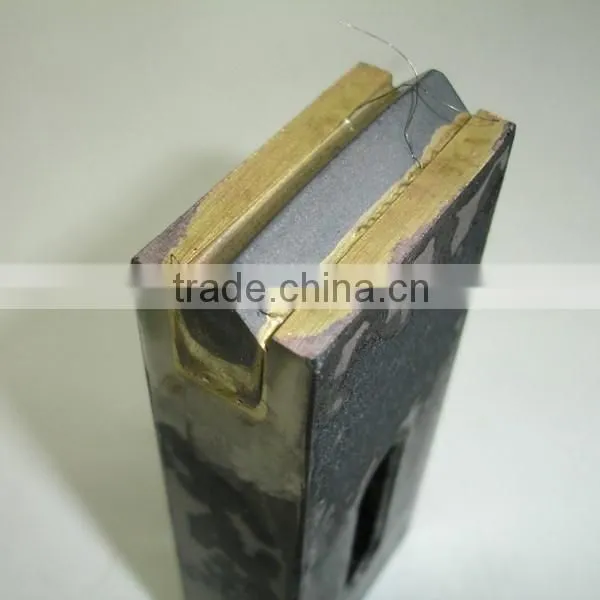

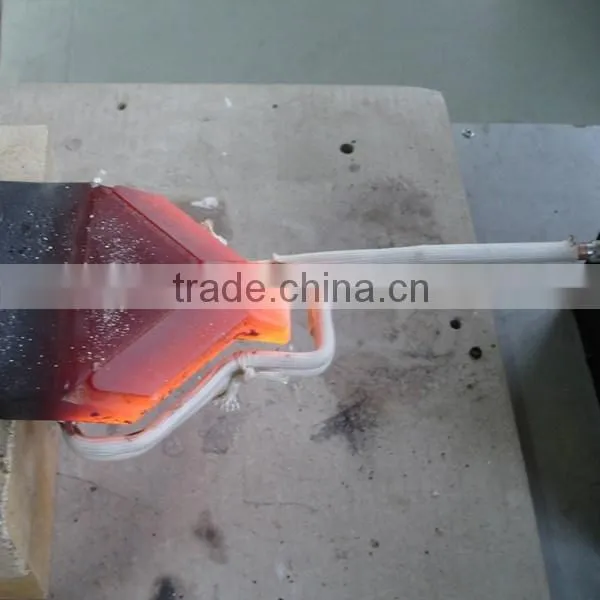

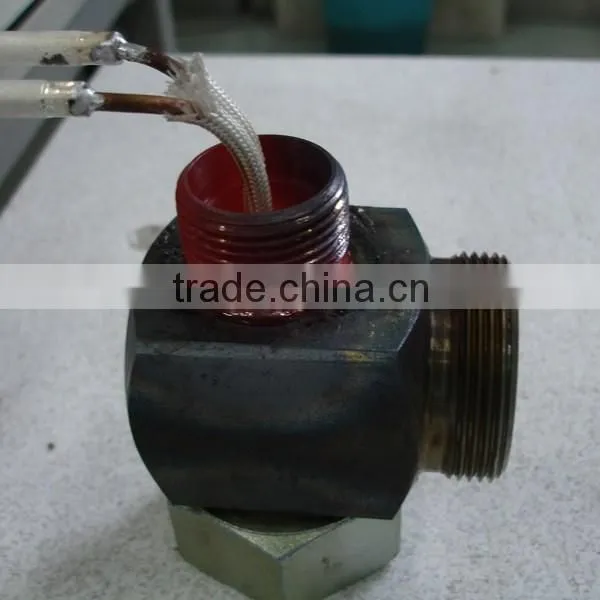

Brazing is a heating process in which two or more like or unlike materials are joined together by means of
anther metal alloy with a lower melting point(solder).
