Home > Products > Application of induction heating equipment > heat treatment
heat treatment
- 180 Set / Sets per Month
- NINGBO/SHANGHAI
- T/T
Product Details
Place of Origin: | Zhejiang, China | Model Number: | SF-80 | Brand Name: | YUELON |
Product Description

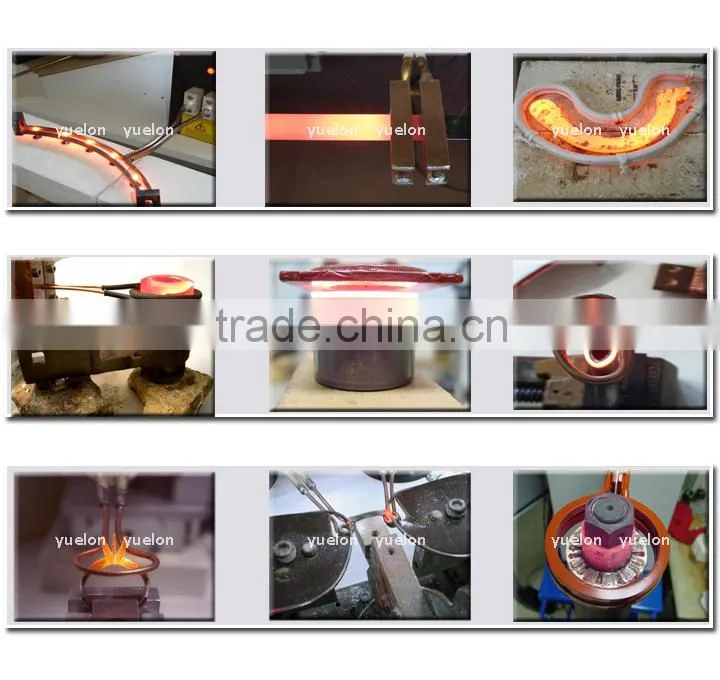

Heat treating services including HSS Heat Treatment, Induction Hardening, Hardening and Tempering, Gas Carburizing, Case Hardening, Toughening, Carbo Nitriding, Core Refining, Spherodizing, Annealing, Normalizing, Stress Relieving, etc. Heat treatment is used to fabricate tool parts, jigs & fixtures, gears and gear parts, sprockets, gauges, moulds, piston rods, etc
HSS Heat Treatment | Induction Hardening | Hardening and Tempering | Gas Carburizing |
Case Hardening | Toughening | Carbo Nitriding | Core Refining |
Spherodizing | Annealing | Normalizing | Stress Relieving |
Aus Tempering | Mar Tempering | Solution Treatment | Solution Annealing |
Aging And Precipitation | Hardening | Selective Annealing | Shrink Fitting |
Homogenizing | Hydrogen Embrittlement | Stabilizing. |

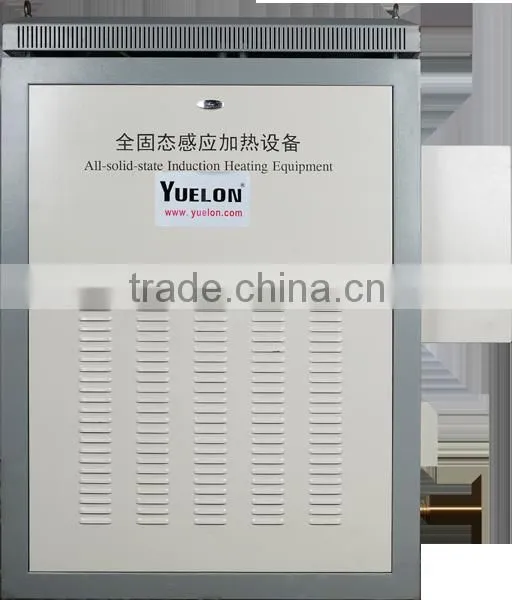

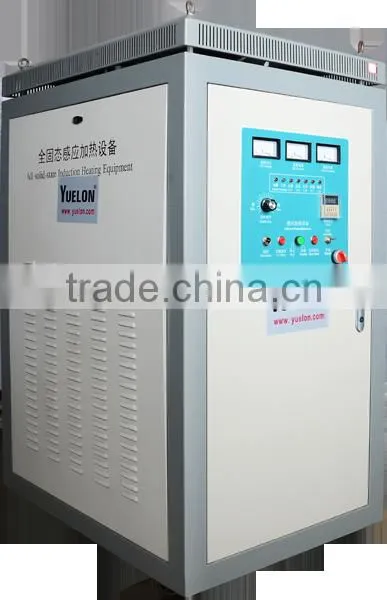

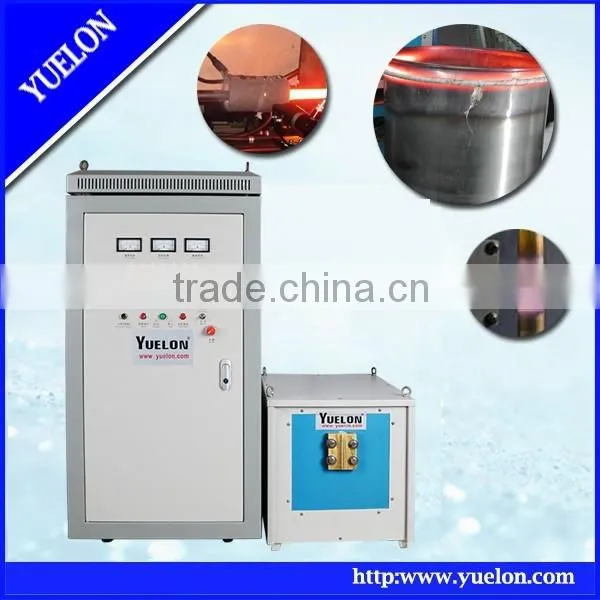

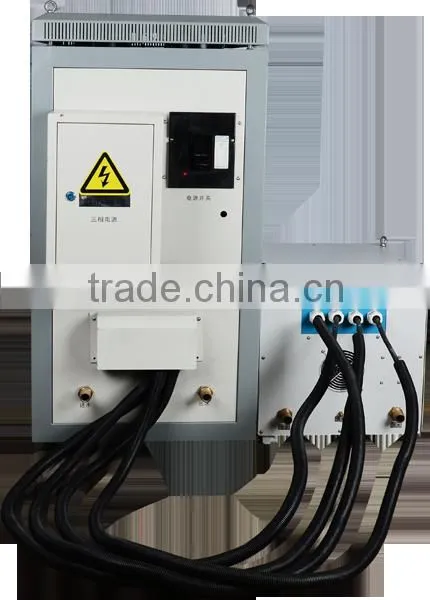

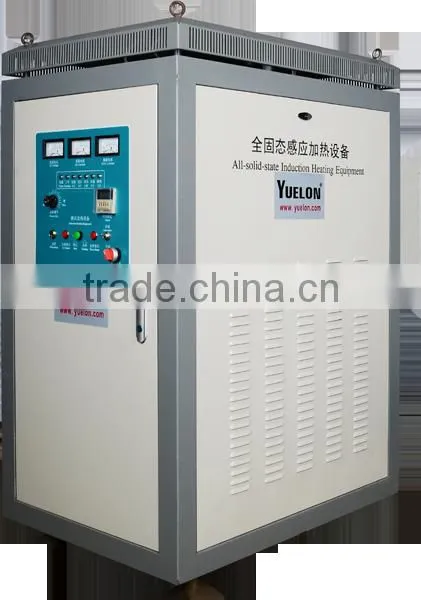

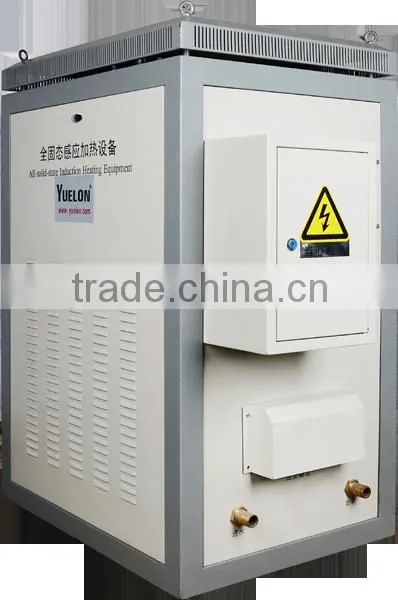

SF-80AB
Main specifications:
Maximum output power: 80KW
Frequency: 10-40KHz
Maximum input current: 160A
Input voltage: 380VAC 3phases, 50 or 60Hz
Duty cycle: 100%
Cooling water: 0.1Mpa 50L/min
Auto heating time: 0.1-99.9seconds
Auto retaining time: 0.1-99.9seconds
Auto cooling time: 0.1-99.9seconds
Weight and dimension:
Model | Net weight(KG) | Size: L x W x H (mm) | Packing weight | Pacing size: L x W x H (mm) |
SF-80AB generator | 106KG | 770x510x1100mm | 215KG | 880x1020x1200mm |
SF-80AB transformer | 68KG | 480x410x410mm |
Model | SF-30AB | SF-40AB | SF-50AB | SF-60AB | SF-80AB | SF-100AB |
Max output power | 30KW | 40KW | 50KW | 60KW | 80KW | 100KW |
frequency
| 10-40KHz | 10-40KHz | 10-40KHz | 10-40KHz | 10-40KHz | 10-40KHz |
Max input current | 48A | 80A | 90A | 110A | 160A | 200A |
Working voltage | 342-430V | |||||
Input voltage
| 380VAC 3phases, 50 or 60Hz
| |||||
Duty cycle
| 100% | |||||
Water flow | 27L/min (0.1Mpa) | 32L/min (0.1Mpa) | 32L/min (0.1Mpa) | 40L/min (0.1Mpa) | 50L/min (0.1Mpa) | 50L/min (0.1Mpa) |
Generator weight | 61KG | 73KG | 75KG | 80KG | 106KG | 121KG |
Transformer weight | 31KG | 37KG | 41KG | 46KG | 68KG | 91KG |
Generator size(mm) | 510x380x810 | 810x465x895
| 810x465x895
| 810x465x895
| 770x510x1100 | 770x510x1100 |
Transformer Size(mm) | 320x320x330 | 470x415x445 | 470x415x445 | 470x415x445 | 480x410x410 | 560x440x530 |
Main characteristics:
1.IGBT inversion technology based LC series circuit .
2.phase locking looping technology and soft switch ensure good reliability, realize power and frequency
tracking automatically.
3.diode rectifier cause high power factor more than 0.95
ing continuously with 100% duty cycle, power can be instantly turned on or shut off.
5.perfect protective circuit and cooling system design, which ensure the good reliability of machine.
6.low energy consumption: converts up to 97.5% above of the expended energy into useful heat. energy
saving 15%-30% compared with SCR induction heating machine.
7.environment friendly, clean, non-polluting process which will help protect the environment, improves
working conditions for your employees by eliminating smoke, waste heat, noxious emissions and loud noise.
8.operating and installation easily and safely
9.can subsititue traditional heating methods.
