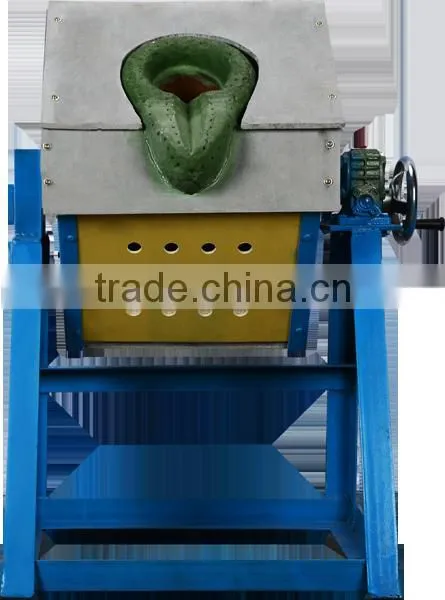

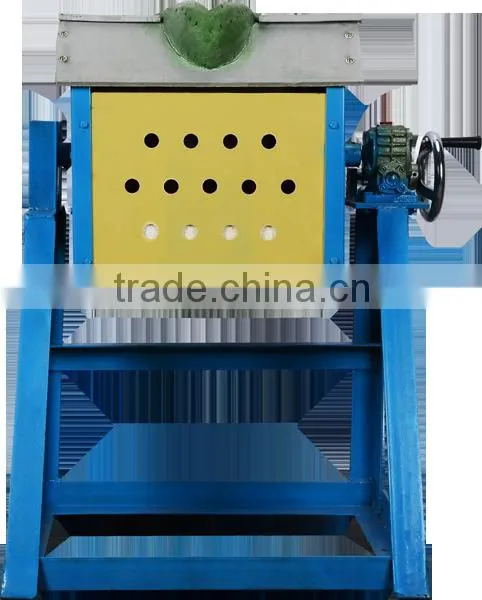

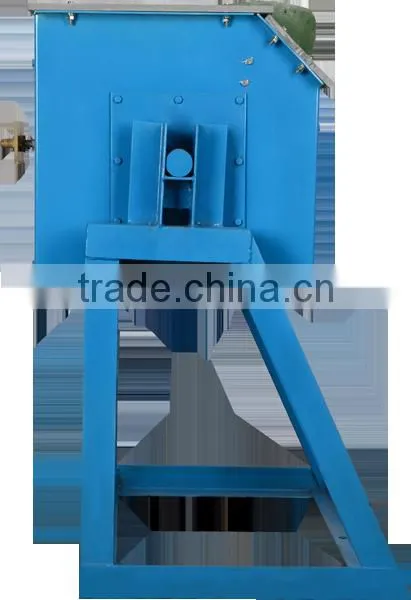

China High-quality Induction Gold Melting equipment
An induction furnace uses induction to heat metal to its melting point. Once molten, the high-frequency magnetic
field can also be used to stir the hot metal, which is useful in ensuring that alloying additions are fully mixed into the
melt. Most induction furnaces consist of a tube of water-cooled copper rings surrounding a container of refractory material.
Induction furnaces are used in most modern
foundries as a cleaner method of melting metals than a reverberatory furnace or a cupola. Sizes range from a kilogram
of capacity to a hundred tonnes capacity. Induction furnaces often emit a high-pitched whine or hum when they
are running, depending on their operating frequency. Metals melted include iron and steel, copper, aluminium, and
precious metals. Because it is a clean and non-contact process it can be used in a vacuum or inert atmosphere.
Vacuum furnaces make use of induction heating for the production of specialty steels and other alloys that
would oxidize if heated in the presence of air.
YONGKANG YUELON ELECTRONIC EQUIPMENT CO.,LTD
YUELON is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction heating equipment and systems.
Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the efficiency and effectiveness for industrial heating process.
that are used for application such as brazing, annealing, quenching, forging, melting, shrink fitting etc.
our induction heating machine are Available from 2KW to 1500KW deliverable output power with 0.5KHZ to 1.1MHZ operating frequency range.

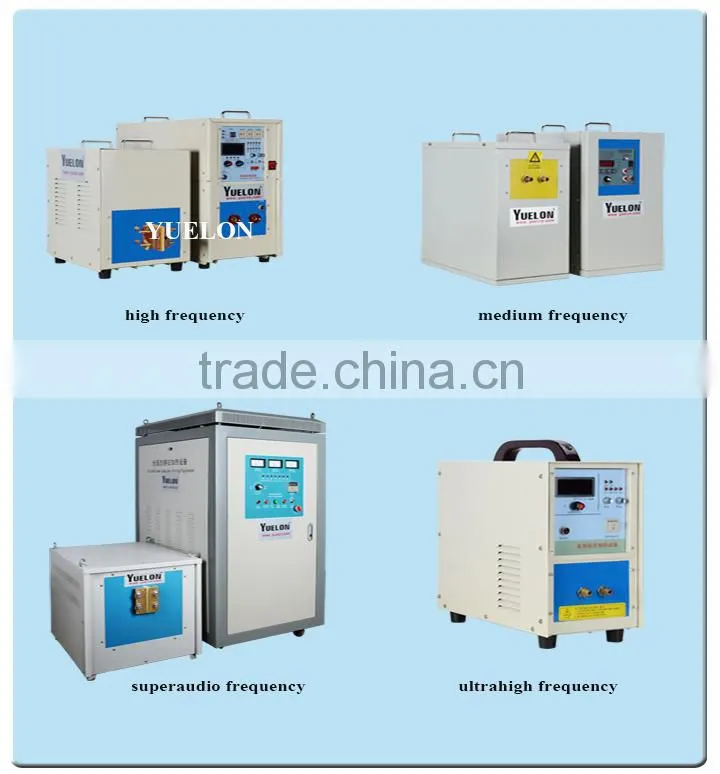

All our products are divided into four major series according to the frequency:
Medium frequency series (abbr. MF series): 0.2-20KHZ
High frequency series (abbr. HF series): 30-100KHZ
Superaudio frequency series (abbr. SF series): 8-40KHZ
Ultrahigh frequency series (abbr. UF series) : 100-1000KHZ
High frequency series:
Model |
Maximun input power |
Oscilating frequency |
Maximum input
current |
Input voltage |
Water flow |
Net weight |
HF-15A/AB |
7KW |
30-100KHZ |
32A |
220V 50hz |
0.2Mpa,2-5L/min |
28kg |
HF-25A/AB |
15KW |
32A |
35kg |
|||
HF-25ABD |
25KW |
30-80KHZ |
23A |
380V 50Hz |
0.2Mpa,6L/min |
58kg |
HF-35AB |
35KW |
55A |
62kg |
|||
HF-40AB |
40KW |
60A |
62kg |
|||
HF-45AB |
45KW |
68A |
85kg |
|||
HF-50AB |
50KW |
90A |
89kg |
|||
HF-60AB |
60KW |
105A |
126kg |
|||
HF-70AB |
70KW |
110A |
145kg |
Application of Induction Heating Equipment:
A. Heating (hot forging, hot fitting and smelting):
1 Hot forging aims to fabricate the work pieces of certain temperature (different materials require different temperatures) into other shapes
through forging press with the help of punch press, forging machine or other equipments, for instances, hot extrusion of watch case, watch
flan, handle, mold accessory, kitchen and table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel
pin and pin.
2. Hot fitting refers to the connection of different metals or metals with nonmetals through the heating based on the principle of hot expansion
or hot smelting, for instances, embedded welding of copper core of computer radiator with aluminum sheet and speaker web, compound of
steel and plastic tube, sealing of aluminum foil (tooth paste peel), motor rotor and sealing of tubular electric heating element.
3. Smelting mainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to the smelting of iron, steel
, copper, aluminum, zinc as well as various noble metals.
B. Heat Treatment (surface quench):
It is mainly aims to change the rigidity of the metal materials through the heat treatment to work pieces. Detail applications are stated as follows:
1. Quench for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear (orchard shear).
2.Quench for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve,
rock arm shaft, semi drive shaft, small shaft and fork.
3. Various electric tools, such as gear and axes.
4. Quench for machine tools, such as lathe deck and guide rail.
5. Quench for various hardware metal parts and machined parts, such as shaft, gear (chain wheel), cam, chuck and clamp etc.
6. Quench for hardware molds, such as small-size mold, mold accessory and inner hole of mold.
C. Welding (braze welding, silver soldering and brazing)
It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material
or different materials.
1. Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter,
reamer, planning tool and solid center bit. 2. Welding of various hardware mechanical gadget: Silver soldering and brazing of metals of the same
variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting,
hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.
3. Compound pot bottom welding is mainly applicable to the braze welding of circular, square as well as other irregular plain pot bottom. It is also
applicable to plain braze welding of other metals.
D. Annealing (tempering and modulation):
1. Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink,
stainless steel tube, tableware and cup.
2. Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper fitting, kitchen knife handle, blade,
aluminum pan, aluminum pail, aluminum radiator and various aluminum products.
We offer complete service :
Before sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
...
