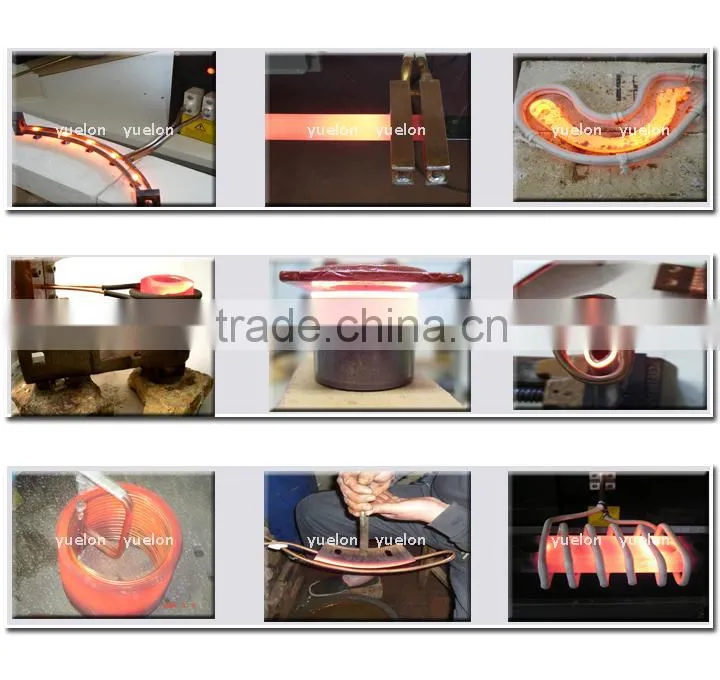

Application of YUELON induction heat processing system:
Heat treating:
Various kind of automobile parts,motorcycle parts,hardware tools,gears,chaim wheels,and other machine attachments quenching for parts or whole body.
Through heating:
Small modules part or whole though heating,twist drills heating upsetting and forging.

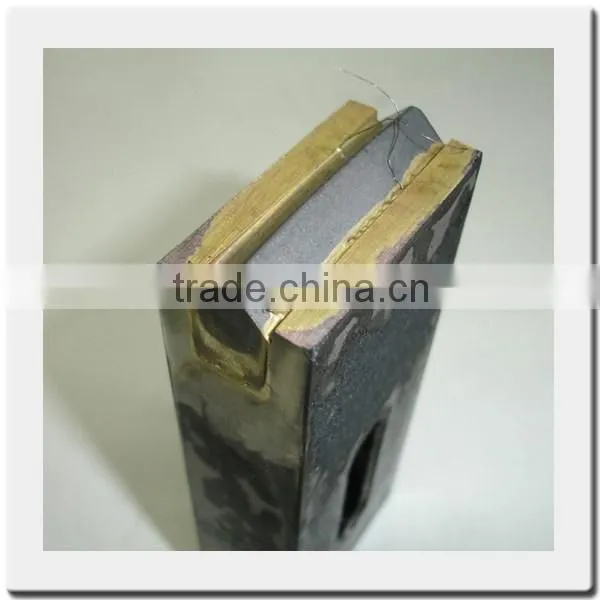

Braze welding:
Many lathe tool,drill bit,knives,saw bit,saw teeth,steel pipe,copper pipesbraze welding.

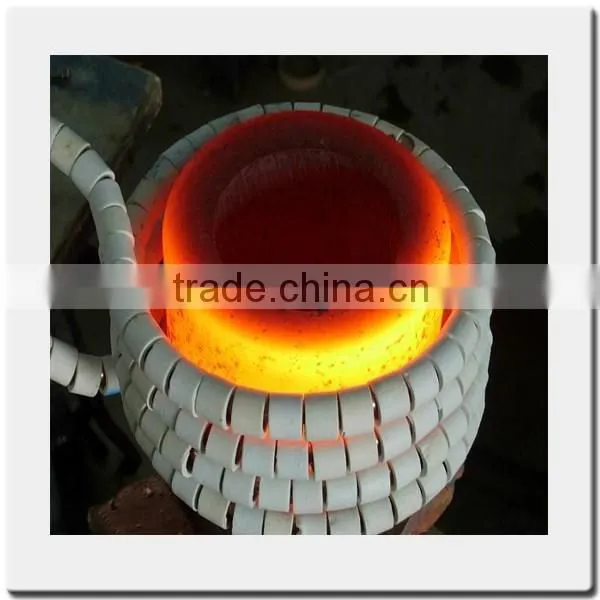

Melting:
Gold,silver,copper,steel,aluminous and other metals vacuum smelting,foudry,or evaporating plating.
Other fields:
Semi coductor single crystal upspring,heating fitting in,heat seal,powder applicating,embedding plastic
YONGKANG YUELON ELECTRONIC EQUIPMENT CO.,LTD
YUELON is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction heating equipment and systems. Our
company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the efficiency and effectiveness for industrial heating process.
that are used for application such as brazing, annealing, quenching, forging, melting, shrink fitting etc.
our induction heating machine are Available from 2KW to 1500KW deliverable output power with 0.5KHZ to 1.1MHZ operating frequency range. All our
products are divided into four major series according to the frequency:
Medium frequency series (abbr. MF series): 0.2-20KHZ
High frequency series (abbr. HF series): 30-100KHZ
Superaudio frequency series (abbr. SF series): 8-40KHZ
Ultrahigh frequency series (abbr. UF series) : 100-1000KHZ
SUPERAUDIO FREQUENCY SERIES:
Model |
Max output power |
Frequency |
Max input current |
Working voltage |
Input voltage |
Duty cycle |
SF-30AB |
30KW |
10-40KHZ |
48A |
342-430V |
3phase 380V50/60HZ |
100% |
SF-40AB |
40KW |
10-40KHZ |
80A |
342-430V |
||
SF-50AB |
50KW |
10-40KHZ |
90A |
342-430V |
||
SF-60AB |
60KW |
10-40KHZ |
110A |
342-430V |
||
SF-80AB |
80KW |
10-40KHZ |
160A |
342-430V |
||
SF-100AB |
100KW |
10-40KHZ |
200A |
342-430V |
||
SF-120AB |
120KW |
10-40KHZ |
240A |
342-430V |
||
SF-160AB |
160KW |
8-30KHZ |
280A |
342-430V |
||
SF-200AB |
200KW |
8-30KHZ |
320A |
342-430V |
||
SF-250AB |
250KW |
8-30KHZ |
380A |
342-430V |
||
SF-300AB |
300KW |
8-30KHZ |
460A |
342-430V |
||
SF-350AB |
350KW |
8-30KHZ |
540A |
342-430V |
We offer complete service :
Before sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
...
