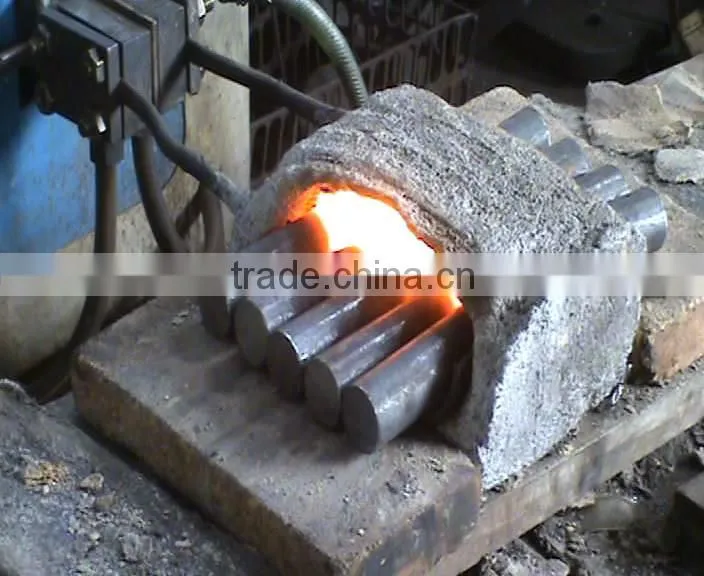

induction heating forging furnace for steel rod:
>MOSFET power component and current inverting technologies have been used.
>simple structure and light weight.
> simple to operate, a few minutes is enough to learn it.
> simple to install, installation can be donne by unprofesstional person very easily.
> multidisplay functions, with displays of over current, over voltage, water failure, phase failure and unfit lad and so on, machine can be protected from destroys and
machines can be repaired easily.
> light weight, small size.
> different shape and size of induction coil can be changed easily to heat different parts.
> advantages of the model with timer: the power and the operating time of the heating period and retain period can be preset respectively, to realize a simple heating curve,
this model is suggested to use for batch production to improve the repeatability.
> the separated models are designed to fit the dirty surroundings, the generator can be put in a clean space to increase the reliability; with the small size and light weight of
the separated transformer, it is conveient to use in the production line and easily assembled inside the machinery or moved mechanism.
High frequency series:
Model |
Maximun input power |
Oscilating frequency |
Maximum input current |
Input voltage |
Water flow |
Net weight |
HF-15A/AB |
7KW |
30-100KHZ |
32A |
220V 50hz |
0.2Mpa,2-5L/min |
28kg |
HF-25A/AB |
15KW |
32A |
35kg |
|||
HF-25ABD |
25KW |
30-80KHZ |
23A |
380V 50Hz |
0.2Mpa,6L/min |
58kg |
HF-35AB |
35KW |
55A |
62kg |
|||
HF-40AB |
40KW |
60A |
62kg |
|||
HF-45AB |
45KW |
68A |
85kg |
|||
HF-50AB |
50KW |
90A |
89kg |
|||
HF-60AB |
60KW |
105A |
126kg |
|||
HF-70AB |
70KW |
110A |
145kg |
Hot forging:
1.steel heating,bending forming;
2.standard parts, fasteners through thermal forming.
3.hardware tools diathermy,for example : pliers and spanners heating-diathermy-forming.
specting drill rod taper shank extrusion.
5.steel tube’s diathermy and forming such as elbow.
We offer complete service :
Before sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
...
