Bent axle/cluth/gear quenching furnace

Bent axle quenching equipment/Roller induction quenching equipment /Cluth and thin product quenching equipment

 Bent axle/cluth/gear quenching furnace

1. Application

used for gears, bearings, axle, valve, cylinder and all kinds of car parts and machinery parts quenching and tempering treatment.

Output power  20-750KW

Output frequency  2.5-500KHZ

Quenching depth  0.3-15mm

The highest using temperature  1250 °C

Output voltage  20-800V

Quenching materials  steel, iron

Quenching shapes  various shapes

Up-down materials method  Automatic and manual

Structure  vertical or horizontal

We will match digital system according to various quenching process configuration.

Quench types

External circular quenching series, for all kinds of shaft, rods, tubes, circular parts (such as bearings, valve, etc) whole or local quenching of outside round face

Semi-atuo quenching series, for all kinds of tubing, mechanical parts inside circles whole or local quenching (such as cylinder liner, bushings, etc.)

 Super-large parts of quenching series, the quality of larger, heavier super-large parts whole or local quenching (such as Marine gear, dam locks rails and large oil pipelines, roll, etc.)

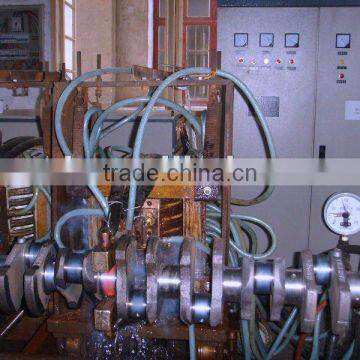

Bent axle quenching equipment

This equipment is mainly used for quenching all kinds of crankshaft surface, the structure is simple, the operation is convenient.

Roller induction quenching equipment

Quenching machine adopts integration design, by mechanical drive institutions, induction furnace, spray system lifting mechanism, workpiece rotate drive device, workpiece cooling device component, machine tool the whole work by mitsubishi PLC control constitutes. Photoelectric signal detection trip; Digital display choose interface.

Heating and cooling equipment adopts computer can be pre-set centralized control, process parameters, the production process automatic control. The computer screen can real-time display operation process parameters, and have the procedures and operation records storage, copy function of U disk

Main technical parameters

The biggest diameter workpiece 1200mm

6000mm workpiece maximum length

Workpiece move speed, 80-800mm/min

Workpiece rotate speed, 20-100r/min

Quenching mode, integral quenching

Cluth quenching equipment , thin product quenching equipment

1.Application

This equipment is mainly used to quench the clutch, the clutch disc hub,  and other thin pieces products. The cluth and products will be durable ,they are not distorted  after the quenching.The whole process of quenching is automatic continuity.

2.components

hydraulic press; high frequency power source,quenching machine tool,automatic feeding system,other equipment.
