Help CenterCinterion GPS Module PH8 New Arrival
Related Products
Specifications
1. Cinterion GPS Module PH82.-Five Band UMTS (WCDMA/FDD):
800, 850, 1900, AWS and 2100 MHz
3.-Quad-Band GSM: 850, 900, 1800,
Products Description:

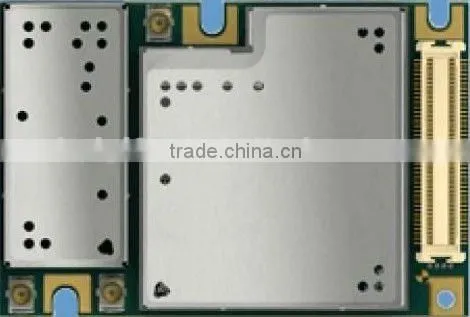

Cinterion GPS Module PH8
General feature
-Five Band UMTS (WCDMA/FDD):
800, 850, 1900, AWS and 2100 MHz
-Quad-Band GSM: 850, 900, 1800, 1900 MHz
-UMTS / HSPA+, 3GPP release 6 / 7
-GSM / GPRS / EDGE, 3GPP release 99 / 4
-SIM Application Toolkit, release 99
-SAIC / RX Diversity Type 3i for all band
-Control via AT commands
(Hayes, 3GPP TS 27.007 and 27.005)
-Supply voltage range 3.3 - 4.2 V
-Dimension: 50 x 33.9 x 3.1 mm, single sided
-Operational Temperature range:
-40°C to +85°C
GPS features
-E911 A-GPS functionality via Control Plane
-Standalone GPS
-GPS dedicated AT command
-Protocol: NMEA-0183 V2.3
-GPS active antenna supply: 3V
-Tracking Sensitivity: better than -158 dBm
-No GPS blanking
-Prepared for GLONASS
-A-GPS via userplane
-NMEA data without Muxer over USB
and serial
Specifications
-HSDPA/HSUPA data rates
DL: 7.2 / 14.4 Mbps, UL: 2.0 / 5.76 Mbps concurrent
data rate:
DL 7.2 Mbps / UL 5.76 Mbps
-UMTS data rates
DL: max. 384 kbps, UL: max. 384 kbps
-EDGE class 12
DL: max. 237 kbps, UL: max. 237 kbps
-GPRS class 12
DL: max. 85.6 kbps, UL: max. 85.6 kbps
-CSD data transmission 14.4 kbps, V.110
-SMS text and PDU mode
-Voice specification:
HR, FR, EFR and AMR supported
Handset, Headset and Handsfree modes
-TTY supported
Approvals
-R&TTE, FCC, GCF, PTCRB, UL, IC, CE
-AT&T and additional local approvals and
network operator certifications
Interfaces
-80-pin board-to-board connector
-2 x antenna connectors for GSM/UMTS
- 1 x antenna connector for GPS
-Power supply
-Audio: 1 x analog, 1 x digital
-USB 2.0 high speed
-UICC and U/SIM card interface 3V, 1.8 V
-Emergency-off
-Network status
-Serial interfaces up to 920 kbps, with
autobauding up to 460 kbps
Special features
-NDIS/USB driver for Microsoft® Windows XP™,
Windows Vista™ and Windows 7™
-RIL/NDIS/USB driver for devices based on
Microsoft® Windows Mobile™ >= 6.X
-USB driver for Microsoft® Windows CE™
5.0 and 6.0
-Multiplex driver for Microsoft® Windows XP™,
Windows Vista™ and Windows 7™
-Customer IMEI/Netlock as variant
-Firmware update via USB and serial Interface
-USB supports multiple composite modes and a
For detailed specification please see Hardware CDC-ACM compliant mode for Linux
Interface Descriptions
Full Voice Support
Quad-Band 2G
80 pin B2B Connector
GPS
Extended Temperature Range
USB 2.0
Shenzhen Baiyi Technology, a factory which has 8 years of experience in Researching, Developing, Producing and selling kinds of modems and mod em pools. We also distribute the world-famous GSM/GPRS/EDGE/CDMA/GPS modules. We Hope To Satisfy You in the Best Way!
