Specifications
RS485 GSM/GPRS modem1.Based on Wavecom GSM/GPRS module Q24plus
2.Quad-band
3.With TCP/IP stack
4.PPP,TCP, UDP
RS485 GSM/GPRS Modem
Product description
Industrial design
Aluminum casing
Wireless access to internet
Based on Wavecom GSM/GPRS module Q24 Plus
With TCP/IP stack
Internet Services: PPP,TCP, UDP
No FTP
Open AT
Flash memory 32MB, PSRAM 16MB
850/900/1800/1900MHZ
3V SIM card slot
RS485 interface:
PIN 1 for 485+B
PIN 2 for 485 -A
SIM Application Toolkit
Double tone multi-frequency function (DTMF)
Send and receive data, SMS
GPRS Class 10
Antenna with high sensitivity
Always on-line
Comply with ETSI GSM Phase2+ standard
Output Power
Class 4(2W @ 850/900MHz)
Class 1(1W @ 1800/1900MHz)
I Input voltage 5V-36V DC
Input current 1A-2A
Standby current: 56mA
Working current: 100-140mA
Working temperature -20 degrees -+55 degrees
Storage temperature:-25 degrees -+70 degrees
Size 76*54*25mm
Weight 100g

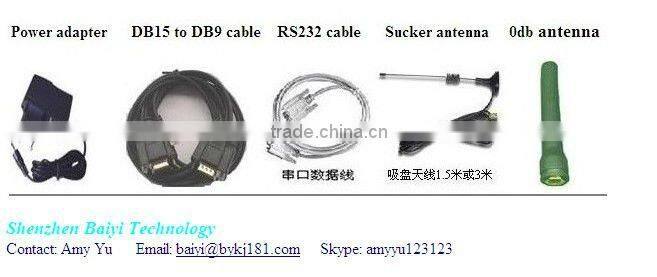

Accessories: AC/DC adaptor, RS485 cable, antenna, 2 mounting plates, CD
Specification for data
GPRS Class 10 max.85.6kbps(downlink
PBCCH support
Coding schemes CS 1,2,3,4
CSD up to 14.4kbps
USSD
Non-transparent mode
Transparent mode
Specification for SMS via GSM/GPRS
Point to point MO and MT
SMS cell broadcast
Text and PDU mode
Specification for Fax
Group 3, class 1,2
About us: Shenzhen Baiyi Technology, a factory which has 8 years of experience in Researching, Developing, Producing and selling kinds of modems and modem pools and wireless routers. We also distribute the world-famous GSM/GPRS/EDGE/CDMA/GPS modules. We Hope To Satisfy You in the Best Way!
Contact: Amy yu Skype: amyyu123123
