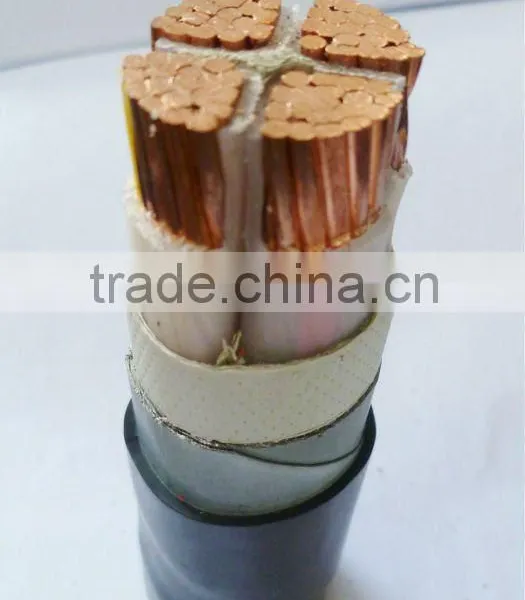

Help CenterFour Core XLPE Insulation Steel Tape Armored Power Cable
Related Products
Specifications
XLPE insulation copper power cableStandard:IEC60502-2 GB12706
Voltage: 0.6/1KV
Cross section:1.5mm2 to 500mm2
ISO 9001-2008
XLPE insulation low voltage steel tape armored power cable
1. The long-term permissible operation temperature of the conductor shall not be higher than 90°C
2. The max temperature of the conductor of cable should less than 250°C when short circuit. (less than 5 second)
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0°C
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardant.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently
6 Rated voltage: 0.6/1kV,~3.6/6kV,1.8/3KV
7 Number of cores: One, two, three, four, five
1KV XLPE INSULATED POWER CABLE
XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable.XLPE power cable has high electric strength,mechanical strength,high-ageing resisting,environmetal stress resisting antichemical corrossion,and it is simple construction,using convenient and higher operating of long term temperature.It can be laid with no drop restriction.
Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide, silane and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free,and non-smoke nonhalogented and three classes of A,B,C.
Our XLPE power cable can be manufactured according to companys specification which is equivalent to IEC 60502,IEC 60332,and IEC 60754.Some of indexes are superior to above international standard IEC.
Some of special XLPE power cable can be manufactured according to the other standards required by customs.
XLPE power cable having higher long-term working temperature and greater current rating,at the same environment XLPE cable may be reduced size(nominal cross-section)1or 2 class in comparison with paper and PVC cable.This is not only improve the quality and properties of products,but also reduce cables production costs.
Type |
Description |
Cu/XLPE/PVC |
Cu conductor XLPE insulated PVC sheathed power cable |
Cu/XLPE/PE |
Cu conductor XLPE insulated PE sheathed power cable |
Cu/XLPE/STA/PVC |
Cu conductor XLPE insulated Steel tape armored PVC sheathed power cable |
Cu/XLPE/STA/PE |
Cu conductor XLPE insulated Steel tape armored PE sheathed power cable |
Cu/XLPE/SWA/PVC |
Cu conductor XLPE insulated Steel wire armored PVC sheathed power cable |
Cu/XLPE/SWA/PE |
Cu conductor XLPE insulated Steel wire armored PE sheathed power cable |
package
loading container
part or our main products
our main products
our main products
our factory
our machine
our certificate
