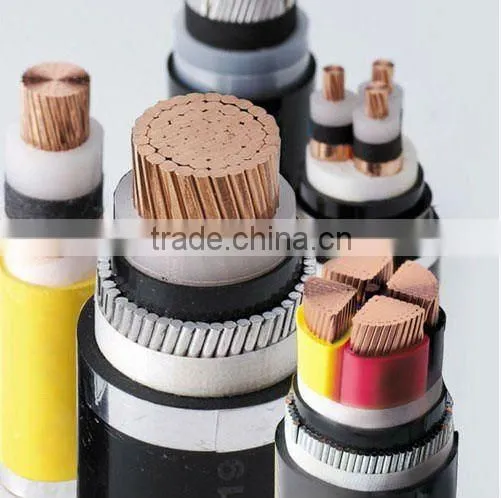

16mm 25mm 35mm Multi Core Steel Wire Armord Wire and Cable

Name: 16mm 25mm 35mm Multi Core Steel Wire Armord Wire and Cable
Brand: yojin or OEM
SKU: 130258833

16mm 25mm 35mm Multi Core Steel Wire Armord Wire and Cable thumbnail-1

16mm 25mm 35mm Multi Core Steel Wire Armord Wire and Cable photo-1

US$ 1 - 50 MOQ: 200 Meters

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

yojin or OEM

Model Number:

CU/XLPE/SWA/PVC YJV32

Contact Supplier Request Quote Chat Now

Shanghai Yongjin Cable Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name yojin or OEM

Model Number CU/XLPE/SWA/PVC YJV32

Insulation Material XLPE

Type Medium Voltage

Application Other, Industrial, Power station; Construction; Underground;

Conductor Material Copper

Jacket PVC

Specifications

Wire and Cable
1. Conductor: Copper & AL
2. Insulation: XLPE; PVC;
3.Jacket: PVC
4. Armoued: Steel wire & tape

Wire and Cable
1. Conductor: Copper & AL
2. Insulation: XLPE; PVC;Rubber; Low-smoke free halogen flame-retardant PVC
3.Jacket: PVC
4. Armoued: Steel wire & tape

5. Screen material: Copper tape, tinned copper thread mesh; Copper thread mesh;

6. Rated voltage: 300/500V; 450/750V; 600/1000V; 8.7/15KV; 26/35KV; 26/45KV;

7. Single core; two core; three core; multi-core cable

8. Power cable; Control cable; Rubber cable; AL cable; overhead cable; Electrical wire;

8. Working temperature: 70oC
9. Installation temperature: 0oC
10. Bending radius: A, Common bending radius:
A. 20D (1 and 2cores)
B. 15D (3 cores)
C. 15D (2 cores with armour)
D. 12D (4, 5, 3+1, 4+1, 3+2 cores with armour)
D= outer diameter
B, Bending radius for the section which near the junction and connector:
A. 15D (1 and 2 cores)
B. 12D (3, 4, 5, 3+1, 4+1, 3+2 cores)
C. 12D (2 cores with armour)
D. 10D (3, 4, 5, 3+1, 4+1, 3+2 cores with armour)
11. A single-core armoured cable is only applied to D.C transmission system. If it is required to use in A.S transimission system, no-magnetic material shhoud be applied as armoured tayer.
12. They can be made into flame retardant and fireproof type.
13. OEM is acceptable.
