China Golden Power Group for High Voltage Cable Types of Underground Cables

Name: China Golden Power Group for High Voltage Cable Types of Underground Cables
Brand: yojin or OEM
SKU: 130258335
Availability: InStock

China Golden Power Group for High Voltage Cable Types of Underground Cables thumbnail-1

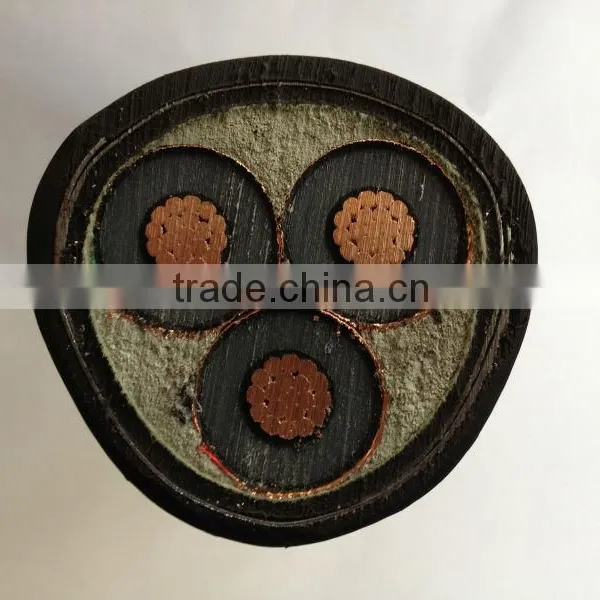

China Golden Power Group for High Voltage Cable Types of Underground Cables photo-1

US$ 5 - 50 MOQ: 200 Meters

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

yojin or OEM

Model Number:

CU/XLPE/STA/PVC YJV22

Contact Supplier Request Quote Chat Now

Shanghai Yongjin Cable Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name yojin or OEM

Model Number CU/XLPE/STA/PVC YJV22

Insulation Material XLPE

Type Medium Voltage

Application Underground

Conductor Material Copper

Jacket PVC

Specifications

XLPE Insulation HV & MV Cable
Volt: 6/10(11)kV,12/20(24)kV,26/35(36)kV
Standard:IEC60502
ISO9001-2008
OEM acceptance

China best high voltage power cable supplyer

11KV copper conductor XLPE insulation PVC sheath power cable

-Application:
For use in ducts, trays and direct burial in ground.
-Standards / Testing Specifications:
IEC 60502.

Installation
This cable can be installed in duct, tray or direct burial. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected by eciencies in the installation.

Detailed Product Description

1. XLPE INSULATED POWER CABLE

XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting anti-chemical corrosion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.

Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology (peroxide, silance and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke non-halogenated and three classes of A,B,C.

Our XLPE cable can be manufactured according to company specification which is equivalent to IEC 60502, IEC 60332,and IEC 60754.Some of indexes are superior to above international standard IEC.

Some of special XLPE cable can be manufactured according to the other standards required by customs.

XLPE cable having higher long-term working temperature and greater current rating, at the same environment XLPE cable may be reduced size(nominal cross-section)1or 2 class in comparison with paper and PVC cable. This is not only improve the quality and properties of products, but also reduce cables production costs.

11kV 3-core steel-tape armored xlpe power cable

Nominal cross sectional area of conductor	Insulation thickness	Inner Sheath thickness	Steel tape thickness	Outer Sheath thickness	Approx diameter of cable	Approx.weight of cable		D.C.resistance of conductor 20°C		Parcial discharge test 1.5Uo	Current rating (A)
Nominal cross sectional area of conductor	Insulation thickness	Inner Sheath thickness	Steel tape thickness	Outer Sheath thickness	Approx diameter of cable	Cu	Al	Cu	Al	Parcial discharge test 1.5Uo	In air		Direct in ground
mm²	mm	mm	mm	mm	mm	Kg/km	Kg/km	Ω/km	Ω/km	pc	Cu	Al	Cu	Al
25	4.5	1.4	0.5	2.5	53.69	3675	3208	≤0.7270	≤1.2000	≤20	120	90	125	100
35	4.5	1.4	0.5	2.6	56.25	4167	3512	≤0.5240	≤0.8680	≤20	140	110	155	120
50	4.5	1.5	0.5	2.7	58.83	4787	3852	≤0.3870	≤0.06410	≤20	165	130	180	140
70	4.5	1.5	0.5	2.8	62.90	5682	4374	≤0.2680	≤0.4430	≤20	210	165	220	170
95	4.5	1.6	0.5	3.0	66.13	6640	4864	≤0.1930	≤0.3200	≤20	255	200	265	210
120	4.5	1.7	0.5	3.1	69.77	7643	5400	≤0.1530	≤0.2530	≤20	290	225	300	235
150	4.5	1.7	0.5	3.2	73.08	8769	5965	≤0.1240	≤0.2060	≤20	330	255	340	260
185	4.5	1.8	0.5	3.3	77.26	10109	6651	≤0.0991	≤0.1640	≤20	375	295	380	300
240	4.5	1.9	0.5	3.5	82.85	12123	7637	≤0.0754	≤0.1250	≤20	435	345	435	345
300	4.5	2.0	0.8	3.7	89.61	15208	9600	≤0.0601	≤0.1000	≤20	495	390	485	390
