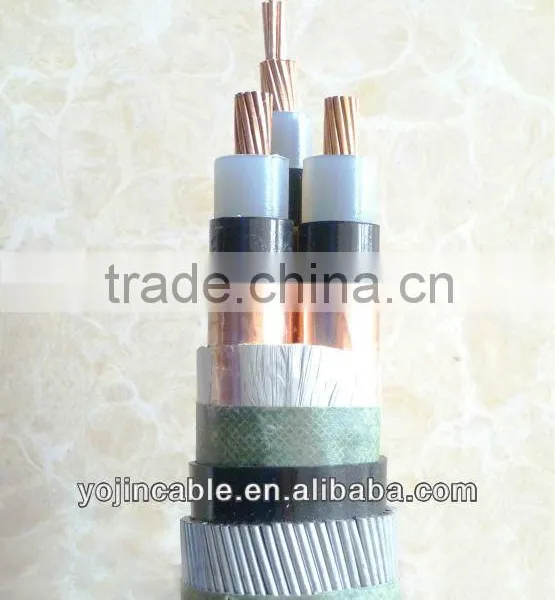

multi-core copper conductor XLPE insulation PVC sheath with STA power cable

Specifications

this XLPE insulated electric cable is used in electric transmission and distribution system operating at rated LV or HV .



i ) :The Model & Name ====>

YJV :   Cu  conductor , XLPE insulated , PVC sheathed electric cable .

YJLV :  Al conductor , XLPE insulated , PVC sheathed electric cable .

YJV22 :  Cu or Al conductor , XLPE insulated , steel tape armoured , PVC sheathed electric cable .

YJLV22 : Al conductor , XLPE insulated , steel tape armoured , PVC sheathed electric cable .

YJV32,42  : Cu  conductor , XLPE insulated , steel wire armoured PVC sheathed electric cable .

YJLV32,42 : Al conductor , XLPE insulated , steel wire armoured PVC sheathed electric cable .





ii ) : This style cable can use the voltage of 0.6/1,1.8/3 ,3.6/6 6/10 8.7/10 8.7/15 12/20 21/35 26/35KV .





iii ) : STRUCTURE SIZE   ====>













iv ) : PICTURE'S  SHOW  ====>
