Help Center33KV Medium Voltage XLPE Insulation Power Cable
Related Products
-
XLPE Insulated Aluminium Conductor Steel Wire Armored High Voltage CableUS$ 0.5 - 50MOQ: 1000 Meters -
35KV (33KV) High Voltage XLPE Insulation 500mm 800mm 1000mm Power CableUS$ 0.5 - 100MOQ: 500 Meters
-
11KV 3c 95mm2 50mm2 35mm2 Copper Conductor XLPE Insulation Steel Tape Armoured MV CableUS$ 5 - 50MOQ: 200 Meters
-
MV Cable for Good Sales Copper Conductor XLPE InsulationUS$ 5 - 50MOQ: 200 Meters
-
China Golden Power Group for High Voltage Cable Types of Underground CablesUS$ 5 - 50MOQ: 200 Meters
Specifications
medium voltage power cableConductor:Copper
Insulation:XLPE
Armoured:Steel wire armoured
Sheath:PVC

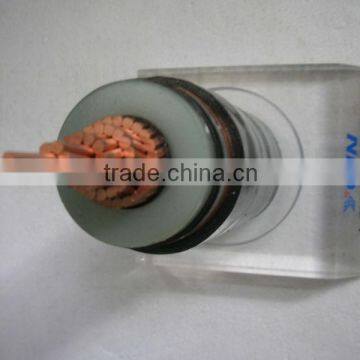

33KV medium voltage XLPE insulation power cable
Application:
It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.
Using features:
1. Rated voltage: Uo/U: 26/35kV, 21/35kV, 12/20 kV (24 kV), 8.7/10kV, 8.7/15kV, 6/6kV, 6/10kV and 0.6/1kV.
2. No. Of core: Single-core, Two-core,Three-core,Four-core,Five-core,Six-core.
3. The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit (Max. Long-term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degree.
4. D. C. Resistance of the conductor complies with the stipulations of international standar.
5. The environment temperature should be no lower than zero degree when lay. Otherwise it should be preheated.
6. The cable is laid without horizontal drop limit. The Min. Bending radius of cables should be no smaller than 12 times of cable outer diameter.
7. Working Frequency Voltage Test:
For cable with Uo of 3.6kV or lower: 2.5Uo+2kV/5min without puncture.
For cable with Uo of 3.6Kv~18kV: 3.5Uo/5min without puncture.
For cable with Uo of 21kV and 26 kV: 2.5Uo/30min without puncture.
