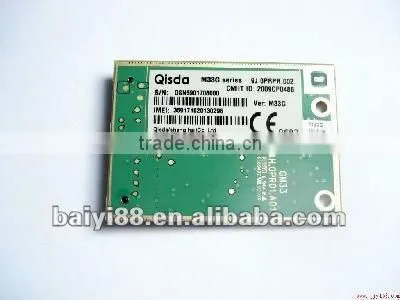

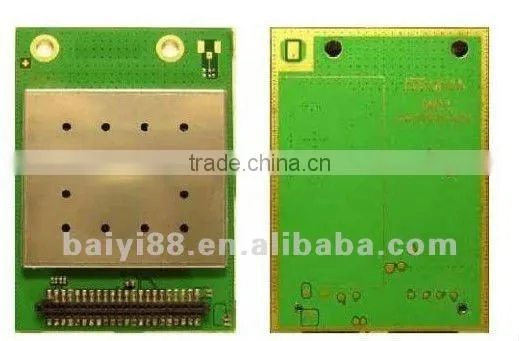

Wireless GSM/GPRS Module M33G

Wireless GSM/GPRS Module M33G thumbnail-1
Wireless GSM/GPRS Module M33G photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
world famous
Model Number:
M33G
Contact Supplier Request Quote Chat Now
Shenzhen Baiyi Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name world famous
Model Number M33G

Specifications

1. WirelessGSM/GPRSwith TCP/IP BENQ Tri-band module
2.GSM/GPRS: Phase 2+Compliance
3.SIM Interface: 3V
4.GPRS Class 10

BENQ Tri-band Wireless GSM/GPRS module

Dimension: 55.5 x 40 x 5.95 mm

Tri-band Wireless Industrial GSM/GPRS module

   GSM/GPRS: Phase 2+ Compliance

   GPRS Class 10: Max 4 downlink, 2 uplink, max 5 slot

   GPRS Class B:

Simultaneous
  attach
  activation
monitor

No simultaneous traffic.

 —Coding Scheme:

 —CS1    - 9.05 kbps
 —CS2    - 13.4 kbps
 —CS3    - 15.6 kbps
 —CS4    - 21.4 kbps

   Support SIM Interface: 3V
   Form factor

   Dimension: 55.5 x 40 x 5.5 mm

   Weight: 13 g

Power:

Operation Voltage: 3.3V - 4.2V
Power Consumption:

Speech Mode:  230 mA (min), 280 mA (max)

Standby Mode:   < 6 mA (paging rate 2),< 3 mA (paging rate 9) at GSM 900MHz

GPRS : TBD

Hardware Output:

44 Pins female connector interface.

UART/RS232                     RS232 Transmit Interface

USB                                  Software Debug

RESET                               Hardware Reset

GPIO                                 General Purpose I/O

Power On                          Power On Pin

LED Driver                         LED Driver, Paging

SIM                                    SIM Function

VBAT                                  Battery Voltage Input

Audio                                 Earphone/MIC/Hand free

BGND                                 GND

ANT                                    Antenna Pad

 Wireless GSM/GPRS module M33G
