3G WCDMA gps tracker for car GVT900, car tracking device
- 10000 Piece / Pieces per Month
- Shenzhen China
- Credit Card
- Fashionable Smart Personal Watch GPS Tracker with OLED Screen 108
- Smart GPS Watch Tracker/Personal GPS Tracker with Geo-Fence and Voice Talking for Children and Elder
- Manufacturer Wholesale 3G MINI Smart Watch GPS with Dual-Way Calling & SOS
- GPS Kids Mobile Watch with Dual-Way Calling & Sos / LBS GPS Tracking
- Best Selling GPS Kids Tracker with SIM Card Slot / LBS GPS Tracking Smart Watch for kids
- Kids Wrist Watch GPS Tracking Device / LBS GPS Tracking smart watch gps watch for kids
Product Details
Type: | Gps Tracker | Use: | Automotive | Screen Size: | Other |
Place of Origin: | Guangdong, China | Brand Name: | Haodaytc | Model Number: | GVT900 |
Warranty: | 5 Years |
Product Description

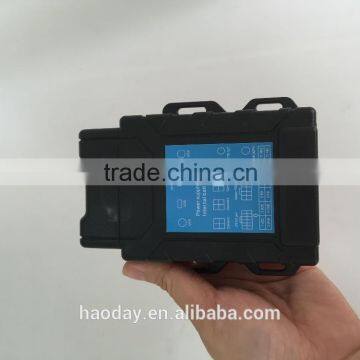

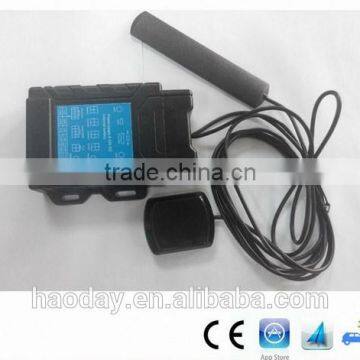

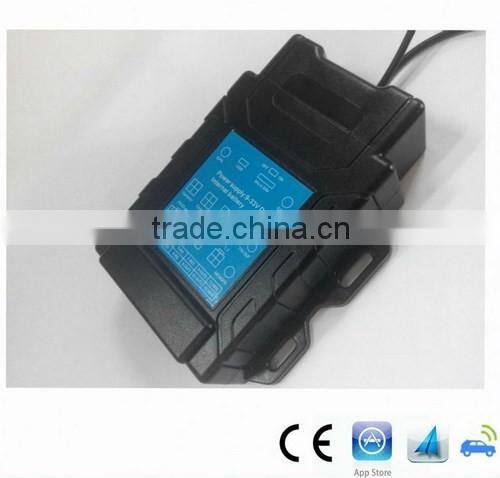

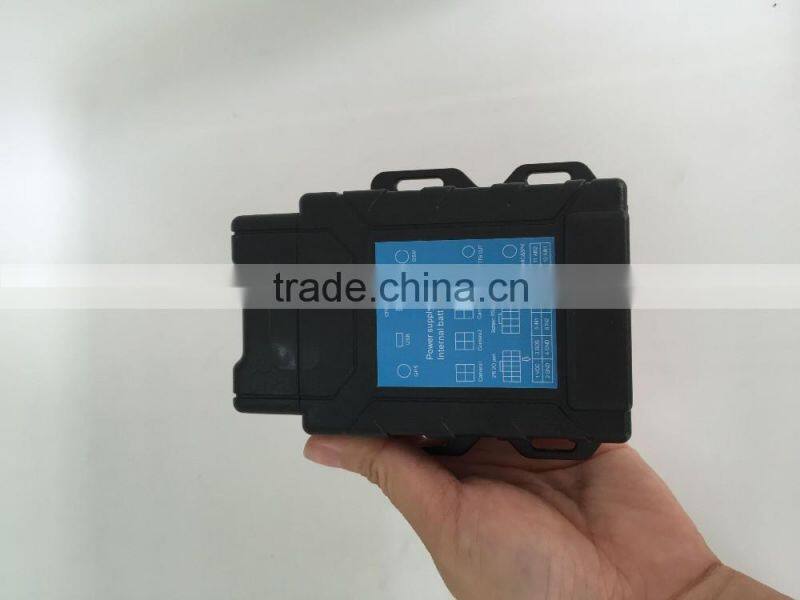

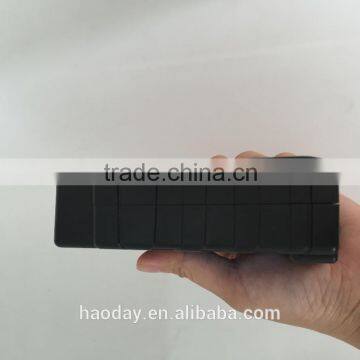

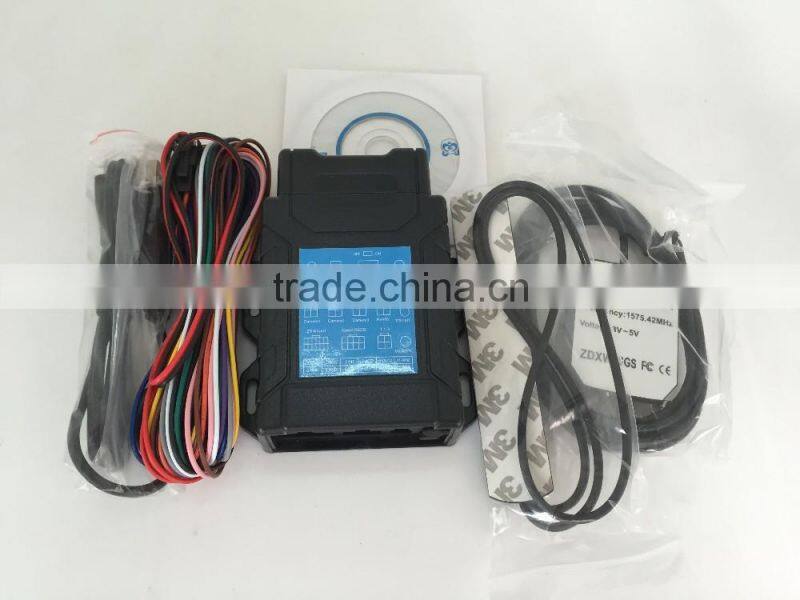

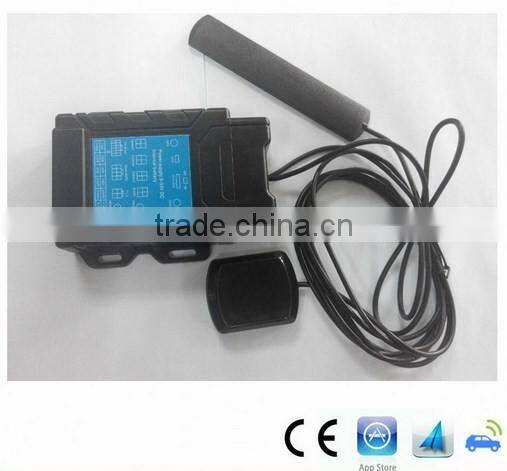

3G WCDMA gps tracker for car GVT900, car tracking device
Thanks for purchasing our products!
Tracker is a GPS/ GPRS based tracking device designed for heavy motorbike, intercity bus,school bus and fleet management And support WCDMA 3 G network.
It has built-in terminals of GPS module and GSM communication module, which are used for getting the location data and send it to authorized phone number via SMS, and tracking through free maps Google Earth or Google Map; at the same time, the GSM module can be sent data to the internet server, which can realize the checking, monitoring and managing of the device on computer.
Tracker has the following features and functions:
Collision alarm
3G accelerometer
Tracking regularly
Geo-fence alarm
Over speed alarm
Low battery alarm
SOS emergency calling
Low battery alarm
No GPS signal alarm
Build in 1GB memory IC
Internal battery 750mAh
Tracking by distance
Build in 8MB flash memory
GPS antenna cut off alarm
External power cut off alarm
Fuel/engine cut off remotely

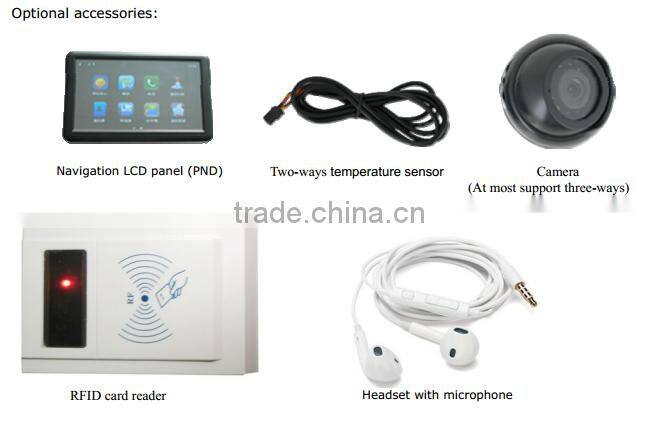

Camera for taking photograph (optional)
Navigation LCD panel (optional)
RFID card reader (optional)
Tracking by SMS/GPRS (TCP/UDP)
Remotely Monitoring or two-way communication
Two ways(DS18B20)temperature measurement (optional)
Three digital outputs, three digital inputs and two analog inputs, four RS232 ports, one RS485 port
Items | Specification |
Power supply | DC 9-33V/1.5A |
Backup battery | Rechargeable battery 750mAh (3.7V) |
Normal Power Consumption | 70mA |

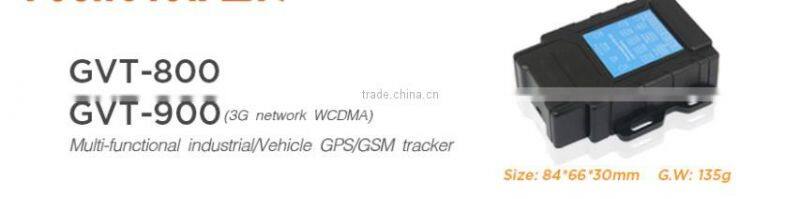

Size | 84 mm*66 mm*30 mm |
Weight | 135g |
Operating Temperature | -20 ~ +55 °C |
Humidity | 5% ~ 95% (Non-condensing ) |
GSM frequency | (telit UE910) EUX GVT900EGSM/GPRS/EDGE900/1800MHZ UMTS/HSDPA900/2100MHZ NAX GVT900N GSM/GPRS/EDGE850/1900MHZ * Two types of modules, when using, must confirm local 2 g (GSM) and the frequency of 3 g (WCDMA)UMTS/HSDPA850/1900MHZ |
GPS IC | UBLOX GPS IC |
GPS sensitivity | -161dB |
GPS frequency | L1, 1575.42 MHz |
C/A code | 1.023 MHz |
Channel | 50 channels |
Positional accuracy | <10 M, 2D RMS |
Speed accuracy | 0.1 M/S |
Time accuracy | Satellite Time: 1 microsecond time synchronization |
Turnover time | Average 0.1s |
Hot start | Average 1s |
Warm start | Average 3s |
Cold start | Average 37s |
Maximum altitude | 18,000M (maximum 60,000 feet). |
Maximum speed | 500 m/s (maximum 1000 knots). |
Maximum acceleration | Less than 4g |
Working time | About 7 hours |
LED | 3 LED lights to show Power, GPS and GSM status |
Button | SOS button for making phone calls, sending position and giving a warning SMS |

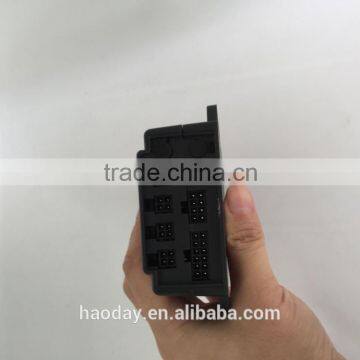

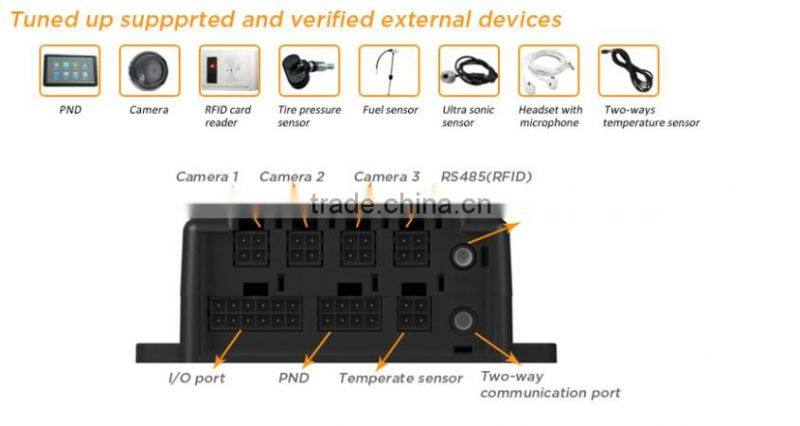

Port | 3 digital outputs 3 digital inputs 2 analog inputs 4 RS232 ports 1 RS485 port |
Getting Started | This section will describe how to set the tracker. |

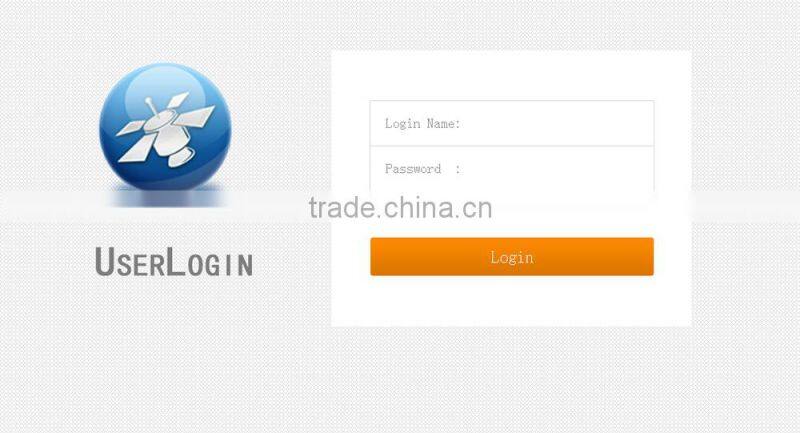

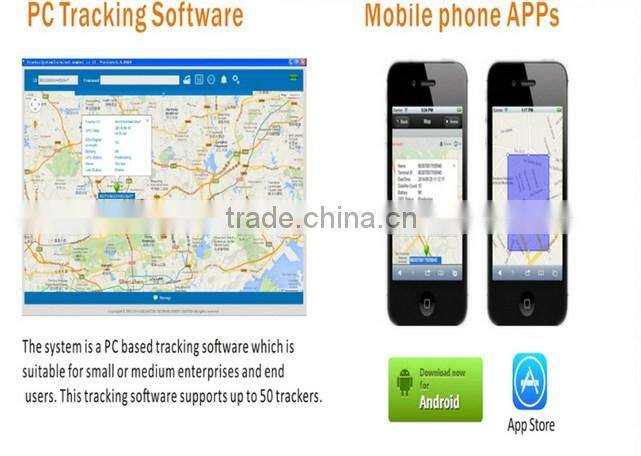

PC platform and Mobile APP tracking and monitoring 3 months free using
Our Demo Platform: /gps
Login: Guest
Password: 666666
Shenzhen Haoday Technology Co., Ltd. is a manufacturer and reseller of GPS tracker and car alarm system with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in fleet management, and tracking system and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
We're a professional gps trackers golden supplier, welcome to inquiry gps tracker wholesale!
