Home > Products > Signal lightning protection > 6.8V/12V/24V Data Line Lightning Arrester Surge Protection Device

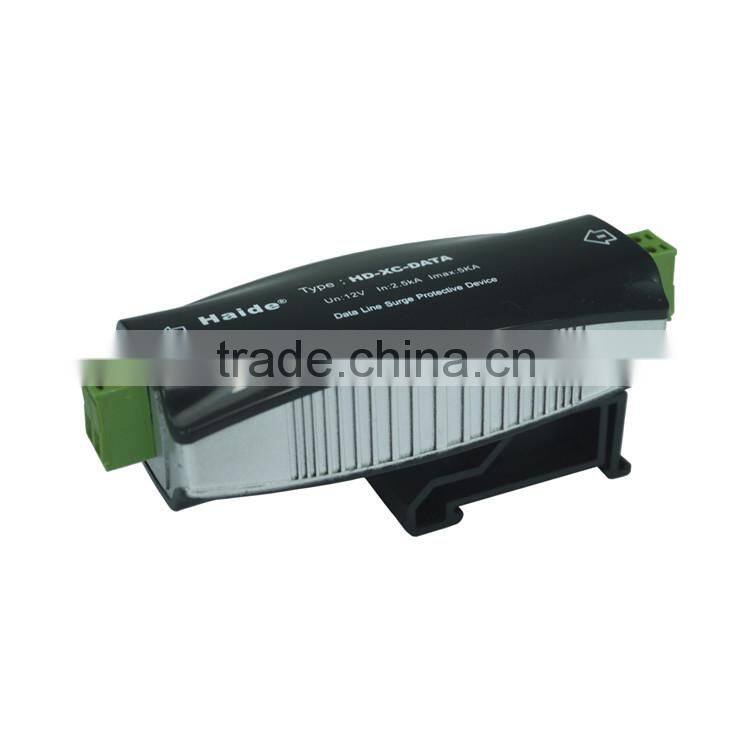

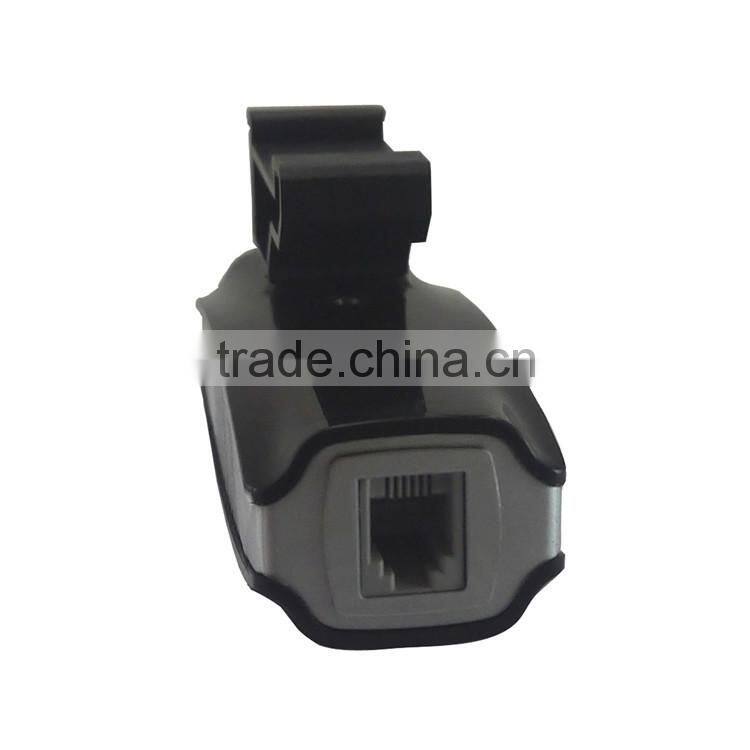

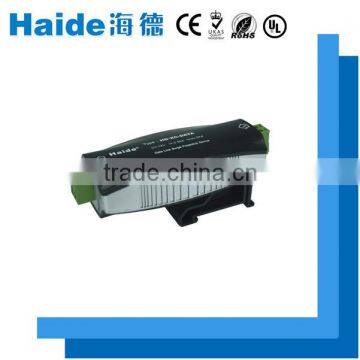

6.8V/12V/24V Data Line Lightning Arrester Surge Protection Device
- guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Data Line Lightning Arrester 12V - 24V Surge Voltage Protector Price Trade Assurance
-
Data Line Lightning Arrester 12v Surge Protector Trade Assurance
-
Data Line Lightning Arrester 24V Low Voltage Surge Protectors Price Trade Assurance
-
Data Line Lightning Arrester 12V - 24V Control Signal Surge Protector With Price Trade Assurance
-
5KA RJ45 Poe Surge Protector With Price Trade Assurance
-
5KA Low Voltage Video Signal Lightning Arrester Price Trade Assurance
Product Details
| Place of Origin | Guangdong, China | Brand Name | Haide | |
| Model Number | HD-XC-DATA |
Product Description
Specifications
surge protection device1.CE certificate &ISO9001& Test report
2.Convenient to maintain
3.Data line lightning arrester
6.8V/12V/24V Data line lightning arrester surge protection device

The product is suitable for the protection of a monitor head, a decode circuit, and entrance guard data line, a visual-speaking system, an intelligent water meter, an intelligent gas meter, and intelligent meter, a wide-used ID system and a fireproof alarm line, and prevents the damage of line induction overvoltage equipment due to earth potential increase, has low output residual voltage, little insertion loss and double overcurrent protection , and is suitable for the protection of the ports such as the RJ11, connection terminals, RS232 and so on. And the protective lines can be divided into the the single circuit type, double circuit type or multiple-circuit type.

| Model | HD-XC-DATA | ||
| Nominal working voltage Un | 6.8V | 12V | 24V |
| Maximum continuous working voltage Uc | 7.5V | 15V | 32V |
| Nominal discharge current In(8/20 us) | 5KA | ||
| Maximum discharge current Imax(8/20 us) | 10KA | ||
| Rated load current IL | 1.5A | ||
| 1KV/us Voltage protection level Up | 15V | 25V | 42V |
| 15V | 25V | 42V | |
| Response time Ta | <0.1ns | ||
| Insertion loss | ≤0.2dB | ||
| Insertion resistance | ≤1Ω | ||
| Number of protection lines | single-line(2,3)/double-line(1/4,2/3) | ||
| Protection grade | IP30 | ||
| Interface mode | connection terminal | ||
| External dimension | 96*25*25mm | ||
| Sheathing material | shielded metal aluminum | ||
1.. ISO9001&CE certificate &Test Report
2..Any inquiries will be replied within 24 hours.
3..Professional manufacture. Welcome to our website:http://gzhaidefanglei.cn.china.cn/
4..High quality, fashion designs, reasonable &competitive price, fast lead time.
5..OEM available.
6..After-Sale Service:
- Provide technical advice and maintenance knowledge and installation guide.
- Customers response time for one working time.
- All the products provide five year commitment to service.
- All the products are accompanied by China Pacific property insurance co;ltd.
7..Fast delivery
Sample order in stock, and 7-15 days for full production.
8..Terms of payment
You can pay for the order via: T/T, Western Union, PayPal &Money Gram.
9..Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Port. You also can choose your own shipping forwarder.
10.Quality warranty
one year replacement, five years warranty.
surge protection device
