Product Details
| Place of Origin | Guangdong, China | Brand Name | Haide | |
| Model Number | HD-XH-T900 |
Product Description

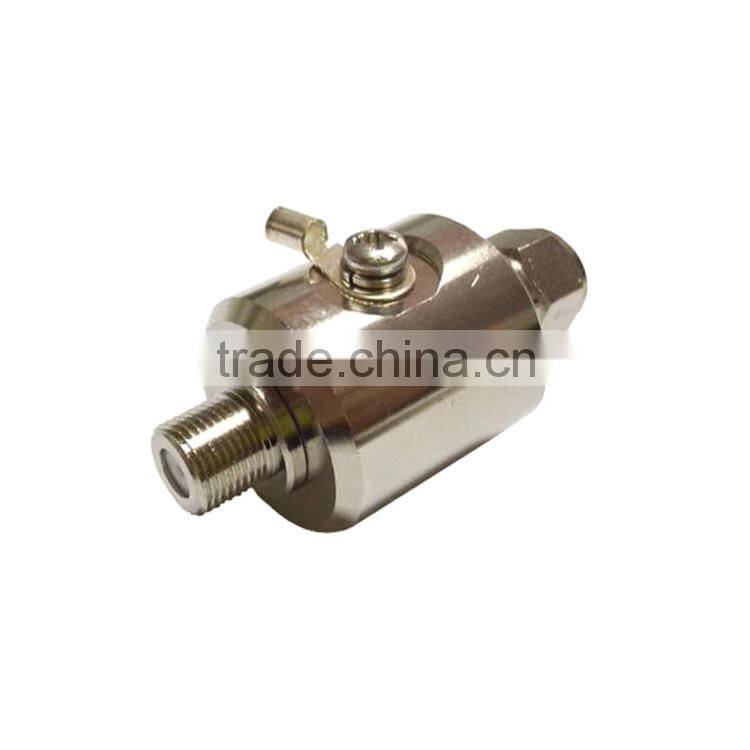

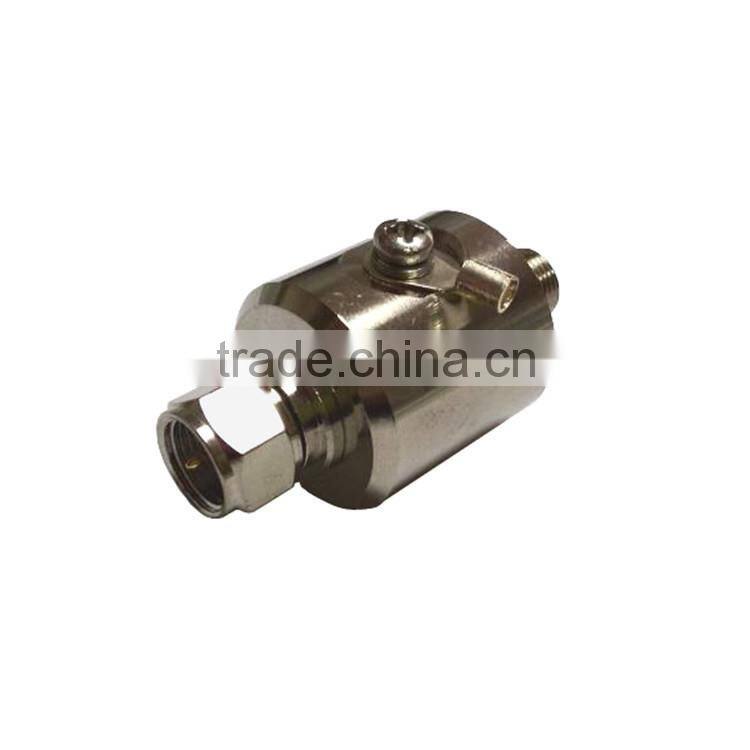

900MHZ antenna surge protector building materials manufacturers and suppliers with price trade assurance
The high-frequency antenna feeder surge protection device is suitable for the protection of a GSM mobile base station, a PHS base station, a satellite receiver, an interphone base station with feed lines and ration-frequency lines, has very low output residual voltage, can effectively protect receiving equipment, and has high-efficient protection function against lightning high voltage pulse inducted from antenna line, having the standing wave ratio of 1.15, insertion loss less than 0.2dB, and applied frequency of 0-400M,0-1800M,and 0-2000M.
| Model | HD-XH-T600 | HD-XH-T900 | HD-XH-T1800 | HD-XH-T2000 | HD-XH-T2500 |
| Lightning withstand capacity | 5KA/20KA | 5KA/20KA | 5KA/20KA | 5KA/20KA | 5KA/20KA |
| Insertion loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Standing wave ratio | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 |
| Input/output impendance | 50/75Ω | 50/75Ω | 50/75Ω | 50/75Ω | 50/75Ω |
| Upper frequency limit | 600MHZ | 900MHZ | 1800MHZ | 2000MHZ | 2500MHZ |
| Interface mode | L46/L16/N/SMA | L46/L16/N/SMA | L16/N | N | N |
| Response time Ta | ≤2ns
| ||||
| Operating temperature range Tup | -40℃ to +80℃
| ||||
| Limit voltage | 600V
| ||||
| Protection grade | IP30
| ||||
| Sheathing material | shielded metal aluminum
| ||||
| External dimension | 59.5*25*25mm
| ||||
1.. ISO9001&CE certificate &Test Report
2..Any inquiries will be replied within 24 hours.
3..Professional manufacture. Welcome to our website:http://gzhaidefanglei.cn.china.cn/
4..High quality, fashion designs, reasonable &competitive price, fast lead time.
5..OEM available.
6..After-Sale Service:
- Provide technical advice and maintenance knowledge and installation guide.
- Customers response time for one working time.
- All the products provide five year commitment to service.
- All the products are accompanied by China Pacific property insurance co;ltd.
7..Fast delivery
Sample order in stock, and 7-15 days for full production.
8..Terms of payment
You can pay for the order via: T/T, Western Union, PayPal &Money Gram.
9..Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Port. You also can choose your own shipping forwarder.
10.Quality warranty
one year replacement, five years warranty.
building materials manufacturers and suppliers with price trade assurance
