Air heat exchanger is a kind of heat exchanger that is used to cool or heat forcibly flowing air with water, glycol solution, steam or heat conduction oil as the medium. Different models of heat exchanger should be selected according to the actual working conditions.
Air heat exchanger can be divided into air heater and air cooler.
Air heaters has several forms including electric heating, steam heating and oil heating etc.
Air cooling machine, with the environment air as the cooling medium, is the equipment to cool or condensate the process fluid with high temperature in the tube. It's called "air cooler" for short, and is also called"air cooling heat exchanger". Air cooler can be also called as fin blower that is often used to replace the cooling medium of water-cooling shell tube heat exchanger.

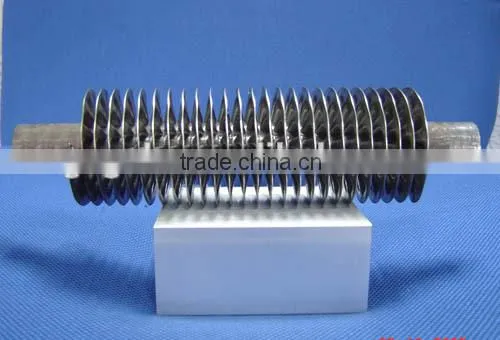

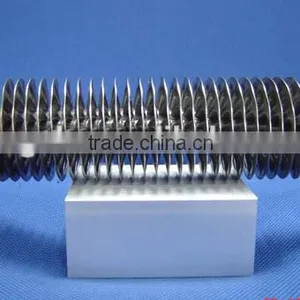

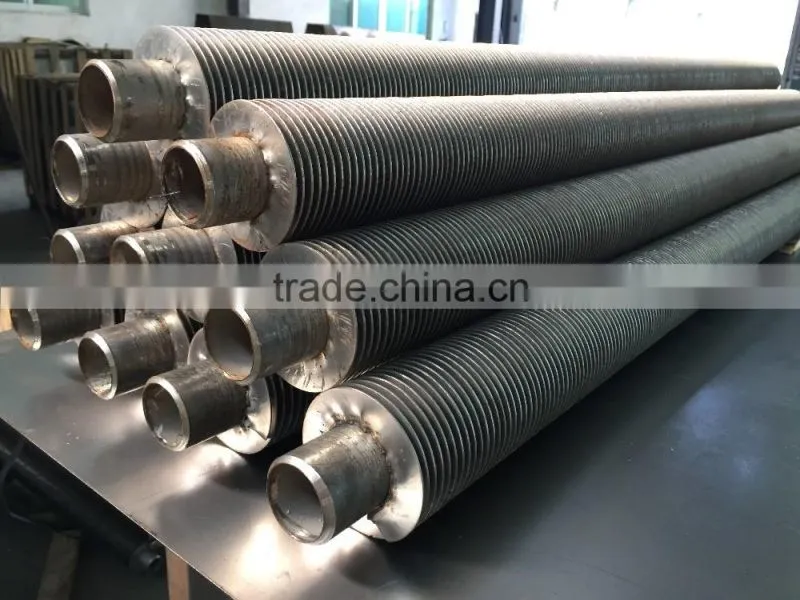

stainless steel finned tube for boiler
Specification:
Base tube O.D: 25mm
Fin OD: 50 mm
Fin Thickness:0.3mm
Fin material: aluminum fins
Base tube: stainless steel tube
Various types of fin tube available
| material | specification (mm) | OD of fin | heat exchanging area (M2) | height of fin | thickness of fin(mm) | fin pitch (mm) | longest (m) |
| carbon steel tube with extruded aluminium fin | Φ 18 X 2.0 | Φ38 | 0.72 | 10 | 0.3 | 3 | 6 |
| Φ 21 X 2.0 | Φ44 | 0.96 | 12 | 0.3 | 3 | 6 | |
| Φ 21 X 2.0 | Φ51 | 1.15 | 15 | 0.3 | 3 | 6 | |
| Φ 25 X 2.5 | Φ50 | 1.2 | 12.5 | 0.3 | 3 | 6 | |
| Φ 25 X 2.5 | Φ55 | 1.37 | 15 | 0.3 | 3 | 6 | |
| Φ 32 X 2.5 | Φ62 | 1.56 | 15 | 0.3 | 3 | 6 | |
| carbon steel tube with crimped carbon steel fin | Φ 18 X 2.0 | Φ38 | 0.57 | 10 | 0.3 | 4 to 5 | 6 |
| Φ 21 X 2.0 | Φ51 | 0.68 | 15 | 0.3 | 5 to 8 | 6 | |
| Φ 21 X 2.0 | Φ45 | 0.76 | 12 | 0.3 | 5 to 8 | 6 | |
| Φ 25 X 2.5 | Φ50 | 0.96 | 15 | 0.3 | 5 to 8 | 6 | |
| Φ 25 X 2.5 | Φ55 | 1 | 15 | 0.3 | 5 to 8 | 6 | |
| Φ 32 X 2.5 | Φ62 | 1.1 | 15 | 0.3 | 8 to 10 | 6 | |
| Φ 32 X 2.5 | Φ72 | 1.21 | 20 | 0.3 | 8 to 10 | 6 | |
| stainless steel tube with crimped stainless steel fin | Φ 18 X 2.0 | Φ38 | 0.62 | 10 | 0.3 | 4 | 6 |
| Φ 21 X 2.0 | Φ51 | 0.75 | 15 | 0.3 | 5 | 6 | |
| Φ 21 X 2.0 | Φ45 | 0.87 | 12 | 0.3 | 5 | 6 | |
| Φ 25 X 2.5 | Φ50 | 1 | 12.5 | 0.3 | 5 | 6 | |
| Φ 25 X 2.5 | Φ55 | 1.25 | 15 | 0.3 | 5 | 6 | |
| stainless steel tube with extruded aluminium fin | Φ 18 X 2.0 | Φ38 | 0.72 | 10 | 0.3 | 3 | 6 |
| Φ 21 X 2.0 | Φ51 | 0.96 | 12 | 0.3 | 3 | 6 | |
| Φ 21 X 2.0 | Φ45 | 1.15 | 15 | 0.3 | 3 | 6 | |
| Φ 25 X 2.5 | Φ50 | 1.2 | 12.5 | 0.3 | 3 | 6 | |
| Φ 25 X 2.5 | Φ55 | 1.37 | 15 | 0.3 | 3 | 6 | |
| Φ 32 X 2.5 | Φ62 | 1.56 | 15 | 0.3 | 3 | 6 | |
| copper tube with aluminum fin | Φ 16 X 1.0 | Φ36 | 0.56 | 10 | 0.3 | 3.2 to 3.5 | 6 |
| Φ 16 X 1.0 | Φ36 | 0.66 | 10 | 0.3 | 2.6 to 2.8 | 6 |
Applications:
finned tubes are the most sought for various critical Heat Exchange applications as follows:
air coolers,
air heaters,
Aftercoolers,
charge air chillers,
condensers,
convection heaters,
evaporators,
fluid coolers,
gas coolers,
heat pipes,
hydrogen coolers,
industrial tumble dryers,
intercoolers,
immersion heaters,
oil coolers,
radiators,
refrigeration,
solvent recovery and steam to air heat exchangers.
Our Heat Exchangers have been Widely Adapted by Industries Such as Machinery Making, Chemical Engineering, Dyeing and Bleaching, Environmental Protection, Pharmacy, and Food Processing for PVC Foaming Machines, PVC Gluing Machines, Tufting Machines, Wallpaper Making Machines, Sulfurizing Machines, Resin Curing Machines, Drying Machines, Distilling Equipment, and Equipment for Cooling, Heating, Evaporating, and Waste-Heat Recovery System, Enter paper, Electrom, Air conditioning, Printer, Gloves machine, Resin stereotypia machin, DOP recycling heat exchanger, Oil cooler etc.
Gele company can also be seen in many exhibitions in different countries all over the world.
Guangzhou Gele Heat Energy Equipment Co., Ltd. focuses on Design and Manufacture Heat Exchangers Like Radiator Tubes, Fin-Tube Heat Exchangers, Shell-&-Tube Heat Exchangers, and Special Heat Exchangers. Our Heat Exchangers have been Widely Adapted by Industries Such as Machinery Making, Chemical Engineering, Dyeing and Bleaching, Environmental Protection, Pharmacy, and Food Processing for PVC Foaming Machines, PVC Gluing Machines, Tufting Machines, Wallpaper Making Machines, Sulfurizing Machines, Resin Curing Machines, Drying Machines, Distilling Equipment, and Equipment for Cooling, Heating, Evaporating, and Waste-Heat Recovery System, Enter paper, Electrom, Air conditioning, Printer, Gloves machine, Resin stereotypia machin, DOP recycling heat exchanger, Oil cooler etc.
To Fulfill Our Customers' Requirements, We Provide Top-Quality: High-Efficiency Heat Exchangers Backed up with Advanced Technology and Strong Experienced. Continuing to Follow Our Operational Concepts--responsibility, Sincerity, and Service--We are Ready to be of Service to Our Customers Anytime.
Welcom to be with us.
Any questions, kindly send us an inquiry or contact with us on line by Skype: ivy12183
